REAR SHOCK ABSORBER

GS1150EF2 1984 (E) USA (E03)

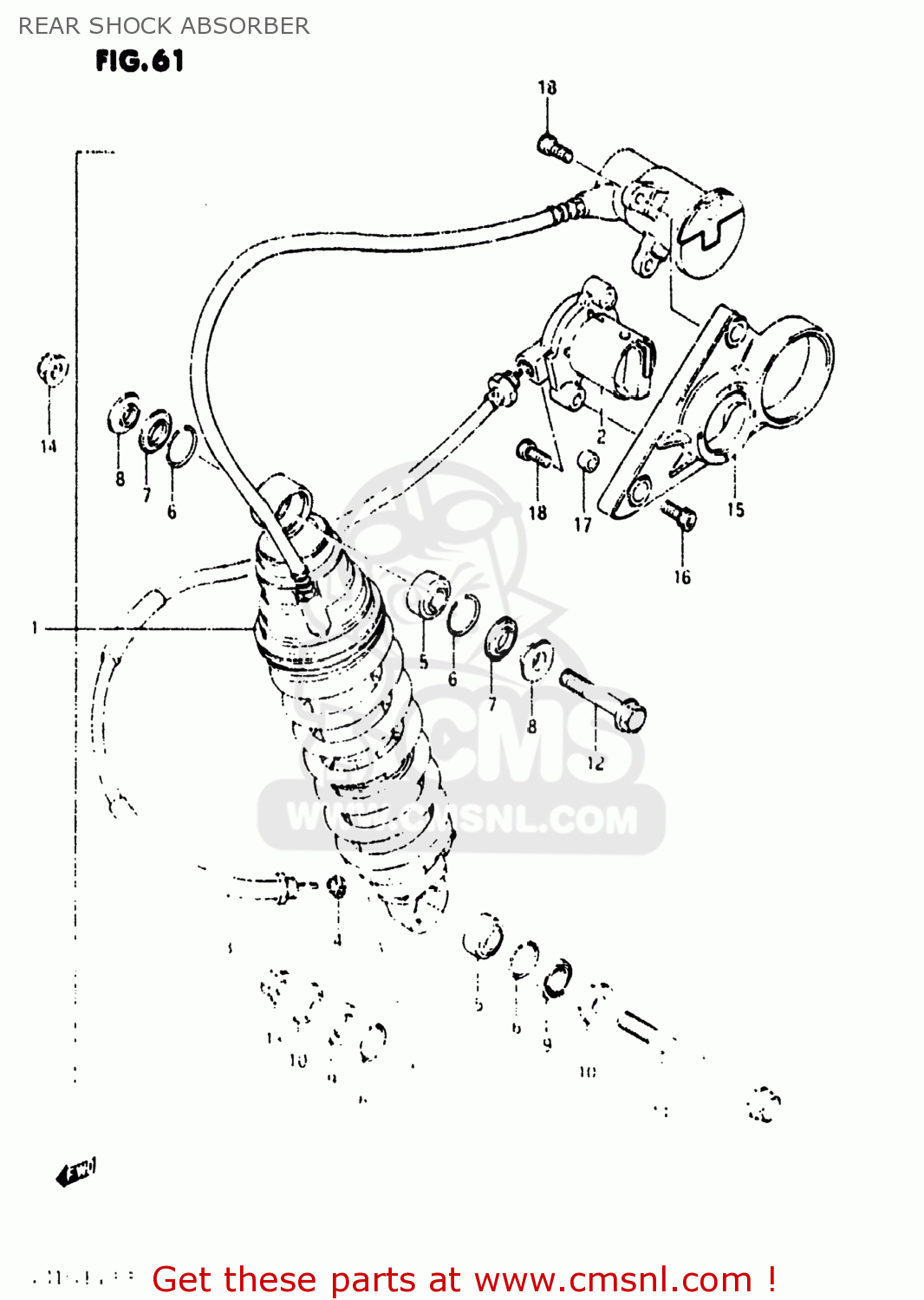

Rear shock absorber diagram GS1150EF2 1984 (E) USA (E03)

REAR SHOCK ABSORBER GS1150EF2 1984 (E) USA (E03)

REAR SHOCK ABSORBER GS1150EF2 1984 (E) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6210000A10
ref: 1-1
62100-00A11

ABSORBER ASSEMBLY,REAR SHOCK

€ 669.50

1-2

6210000A11
ref: 1-2

ABSORBER ASSEMBLY,REAR SHOCK

€ 669.50

2

6235000A00
ref: 2

ADJUSTER

€ 110.50

3

6235800A00
ref: 3

CABLE,CONTROL

€ 80.00

4

6235533300
ref: 4

GEAR,DAMPER ADJUSTER

€ 0.00

5

6217543400
ref: 5
62175-00B00

BEARING,REAR SHOCK ABSORBER

€ 66.00

6

6227714200
ref: 6
62657-34A01

RING

€ 1.50

7

6222600A00
ref: 7

SEAL,DUST UPR

€ 8.00

8

6268400A00
ref: 8

COLLAR,UPR

€ 13.00

9

6222643410
ref: 9

SEAL,DUST

€ 7.50

10

6268443401
ref: 10

SPACER

€ 7.00

11

0910310063
ref: 11

BOLT(10X115)

€ 5.00

12

0910310064
ref: 12

BOLT(10X50)

€ 4.50

13

0831931105
ref: 13
08319-3110A

NUT 10MM

€ 3.00

14

0831931108
ref: 14

NUT

€ 3.00

15

6236100A00
ref: 15

BRACKET

€ 0.00

16

0711006305
ref: 16
07130-0630B

BOLT

€ 3.00

17

0918006010
ref: 17

SPACER(6.5X12X6.9)

€ 2.50

18

0711006166
ref: 18
07130-0616B

BOLT

€ 2.50
