CAM SHAFT - VALVE
GS1150ESE 1986 (G) USA (E03)

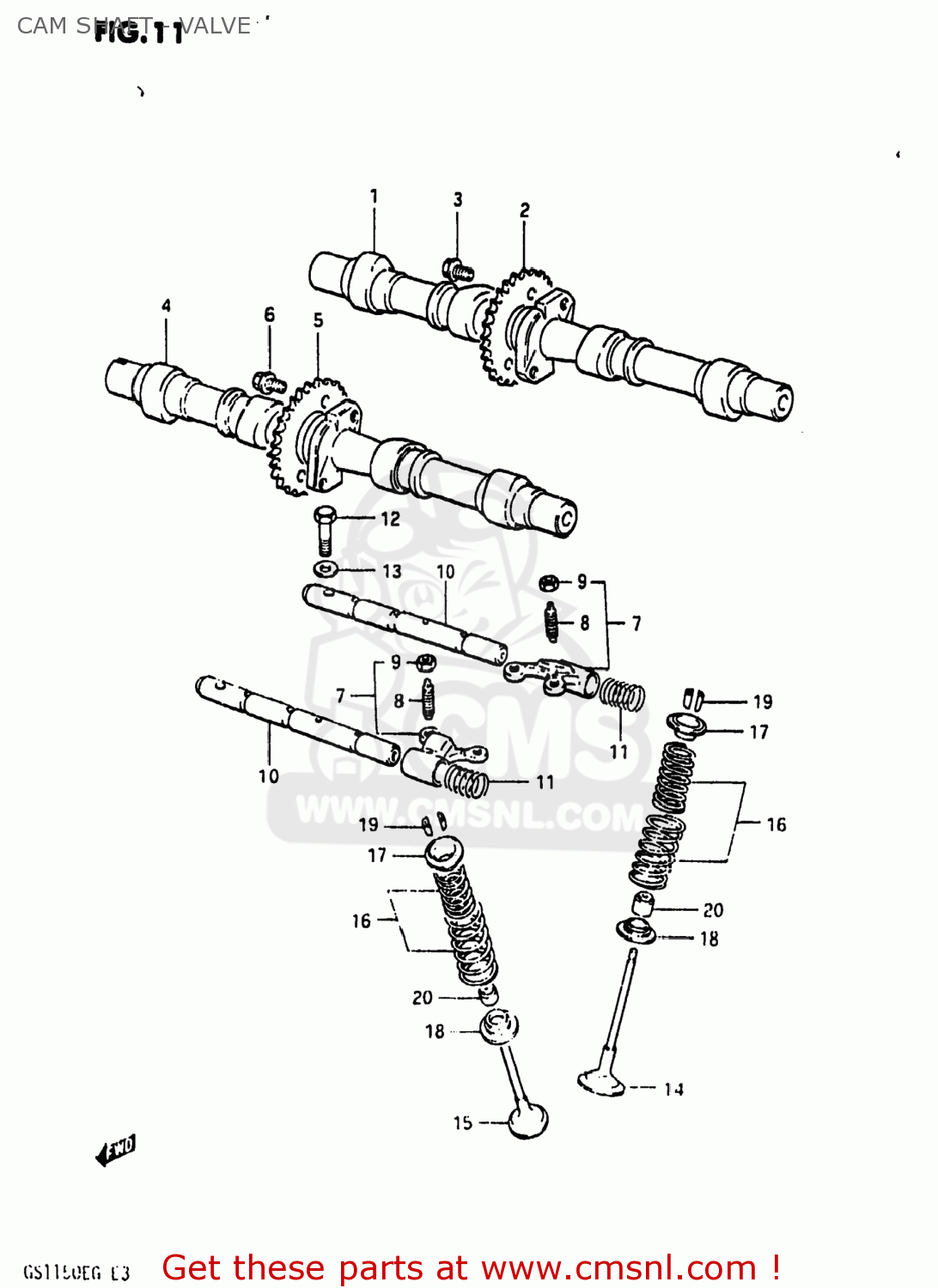

Cam shaft - valve diagram GS1150ESE 1986 (G) USA (E03)
CAM SHAFT - VALVE GS1150ESE 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1271100A00
ref: 1
CAMSHAFT,INTAKE
€ 288.00
2
1274149011
ref: 2
SPROCKET,INTAKE CAMSHAFT
€ 83.50
3
0910307001
ref: 3
BOLT(7X11)
€ 2.00
4
1272100A02
ref: 4
CAMSHAFT,EXHAUST
€ 175.50
5
1274149011
ref: 5
SPROCKET,INTAKE CAMSHAFT
€ 83.50
6
0910307001
ref: 6
BOLT(7X11)
€ 2.00
7
1284049201
ref: 7
ARM,VALVE ROCKER
€ 77.00
8
1284249210
ref: 8
12842-49201
SCREW,TAPPET ADJUSTING
€ 5.50
9
1284304A00
ref: 9
12843-27A00
NUT,ADJUSTING
€ 3.00
10
1286031300
ref: 10
SHAFT,VALVE ROCKER
€ 33.50
11
0944013014
ref: 11
SPRING
€ 2.50
12
0110706306
ref: 12
01500-0630A
BOLT
€ 2.50
13
0832221066
ref: 13
08322-0106B
WASHER, LOWER
€ 2.00
14
1291100A00
ref: 14
VALVE,INTAKE
€ 21.50
15
1291249220
ref: 15
VALVE,EXHAUST
€ 48.00
16
1292049210
ref: 16
SPRING SET,VALVE
€ 16.00
17
1293149200
ref: 17
12931-49201
RETAINER,VALVE SPRING
€ 5.50
18
1293349200
ref: 18
12933-49201
SEAT,VALVE SPRING
€ 4.50
19
1293249200
ref: 19
COTTER VALVE
€ 2.50
20
0928905003
ref: 20
09289-05015
OIL SEAL
€ 6.50
