prices are in EUR

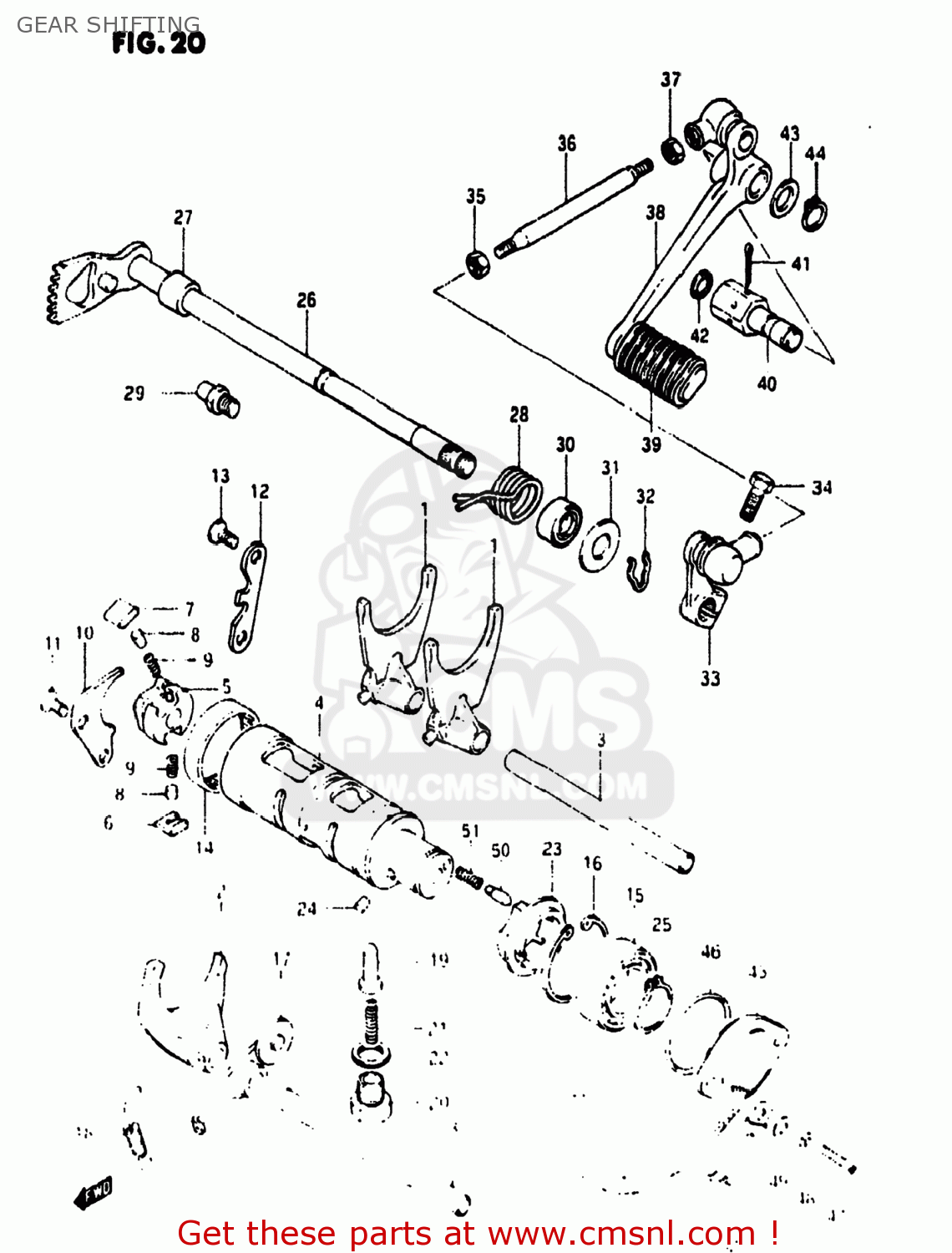

ref
part #
description
quantity
1
FORK,GEAR SHIFT NO.1
2
FORK,GEAR SHIFT NO.2
5
GEAR,GEARSHIFT CAM DRIVE
8
PIN(5X8)
9
SPRING
10
LIFTER,GEAR SHIFT POLE
11
SCREW
12
GUIDE,GEAR SHIFT CAM
13
SCREW
14
BEARING(43X49X12)
15
BALL BEARING
17
STOPPER,GEAR SHIFTING CAM
18
SPRING
19
STOPPER,GEAR SHIFT CAM NO.2
20
HOLDER,GEAR SHIFT CAM STOP SPR
21
SPRING
22
GASKET(14X19.2X2) (NAS)
23
PLATE,GEAR SHIFT CAM STOPPER
24
PIN 4X6
26
SHAFT,GEAR SHIFT
27
SPACER(12X20X15.3)
28
SPRING
29
STOPPER,GEAR SHIFT CAM
30
OIL SEAL
31
WASHER (12.5X27X1.6)
32
SPRING,RETAINER
33
ARM,GEAR SHIFT LINK
33
ARM,GEAR SHIFT LINK
34
BOLT
34
BOLT
36-1
ROD,GEAR SHIFT LINK
36-1
ROD,GEAR SHIFT LINK
36-2
ROD,GEAR SHIFT LINK
36-2
ROD,GEAR SHIFT LINK
37
NUT
37
NUT
38
LEVER ASSEMBLY,GEAR SHIFTING
38
LEVER ASSEMBLY,GEAR SHIFTING
39
RUBBER,PEDAL
39
RUBBER,PEDAL
40
SHAFT,GEAR SHIFT LEVER
40
SHAFT,GEAR SHIFT LEVER
42
WASHER
42
WASHER
43
WASHER(12.5X20X1)
43
WASHER(12.5X20X1)
44
CIRCLIP
44
CIRCLIP
45
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
45
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
46
O RING(D:2.4,ID:36.5)
46
O RING(D:2.4,ID:36.5)
47
SCREW(5X14)
47
SCREW(5X14)
48
LOCK WASHER
48
LOCK WASHER
49
WASHER
49
WASHER
50
PIN(5X15.5)
50
PIN(5X15.5)
51
SPRING
51
SPRING
52
CLAMP L:35
52
CLAMP L:35
