CHAIN CASE - SHOCK ABSORBER

GS250T 1981 (X) UNITED KINGDOM (E02)

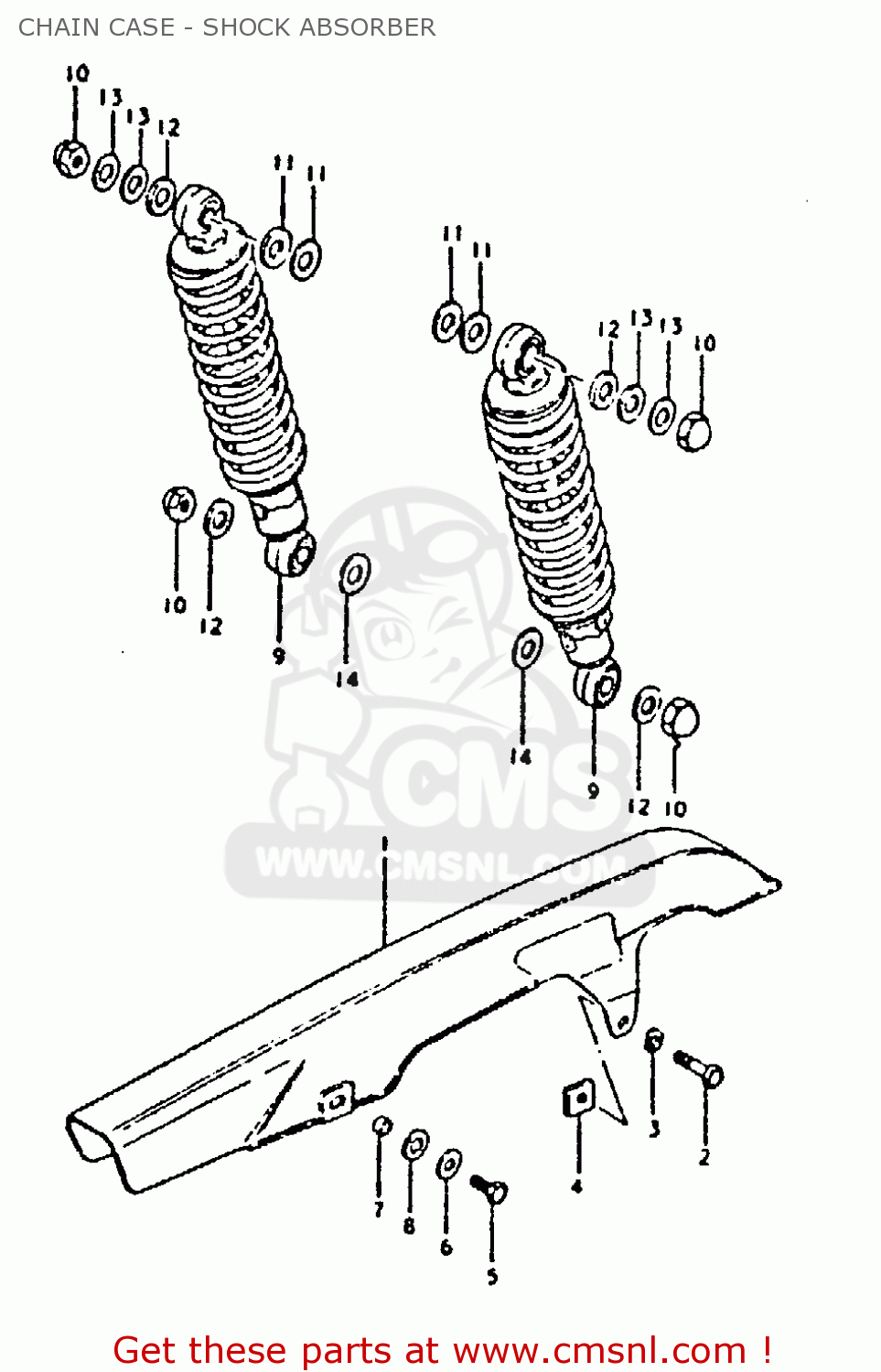

Chain case - shock absorber diagram GS250T 1981 (X) UNITED KINGDOM (E02)

prices are in EUR

ref

part #

description

quantity

1-1

6131144101291
ref: 1-1
MODEL T

CASE,CHAIN

€ 65.50

1-2

6131144102291
ref: 1-2
MODEL X

CASE,CHAIN

€ 65.50

0110706168
ref: 2

BOLT, UPPER

€ 3.00

0832121068
ref: 3

LOCK WASHER

€ 2.50

6131643000
ref: 4

NUT,CHAIN CASE RR

€ 3.00

0110706108
ref: 5

BOLT

€ 2.00

0916006058
ref: 6

WASHER

€ 2.00

0918006032
ref: 7

SPACER (6.1X8X5.2)

€ 2.50

0932008005
ref: 8

CUSHION

€ 2.00

9-1

6210011410
ref: 9-1
MODEL T, ~F.NO. 7005

ABSORBER ASSEMBLY,REAR SHOCK

€ 202.00

9-2

6210011411
ref: 9-2
MODEL T, F.NO. 70056

ABSORBER ASSEMBLY,REAR SHOCK

€ 202.00

9-3

6210011420
ref: 9-3
MODEL X

ABSORBER ASSEMBLY,REAR SHOCK

€ 127.00

0831311108
ref: 10

NUT, LOWER LH

€ 2.50

0832211128
ref: 11

WASHER

€ 2.00

0916010001
ref: 12

WASHER

€ 2.00

0916010033
ref: 13

WASHER(10.5X24X3.2)

€ 2.00

0916012004
ref: 14

WASHER (12.5X24X1.6)

€ 2.00
