STARTER CLUTCH

GS250T 1981 (X) UNITED KINGDOM (E02)

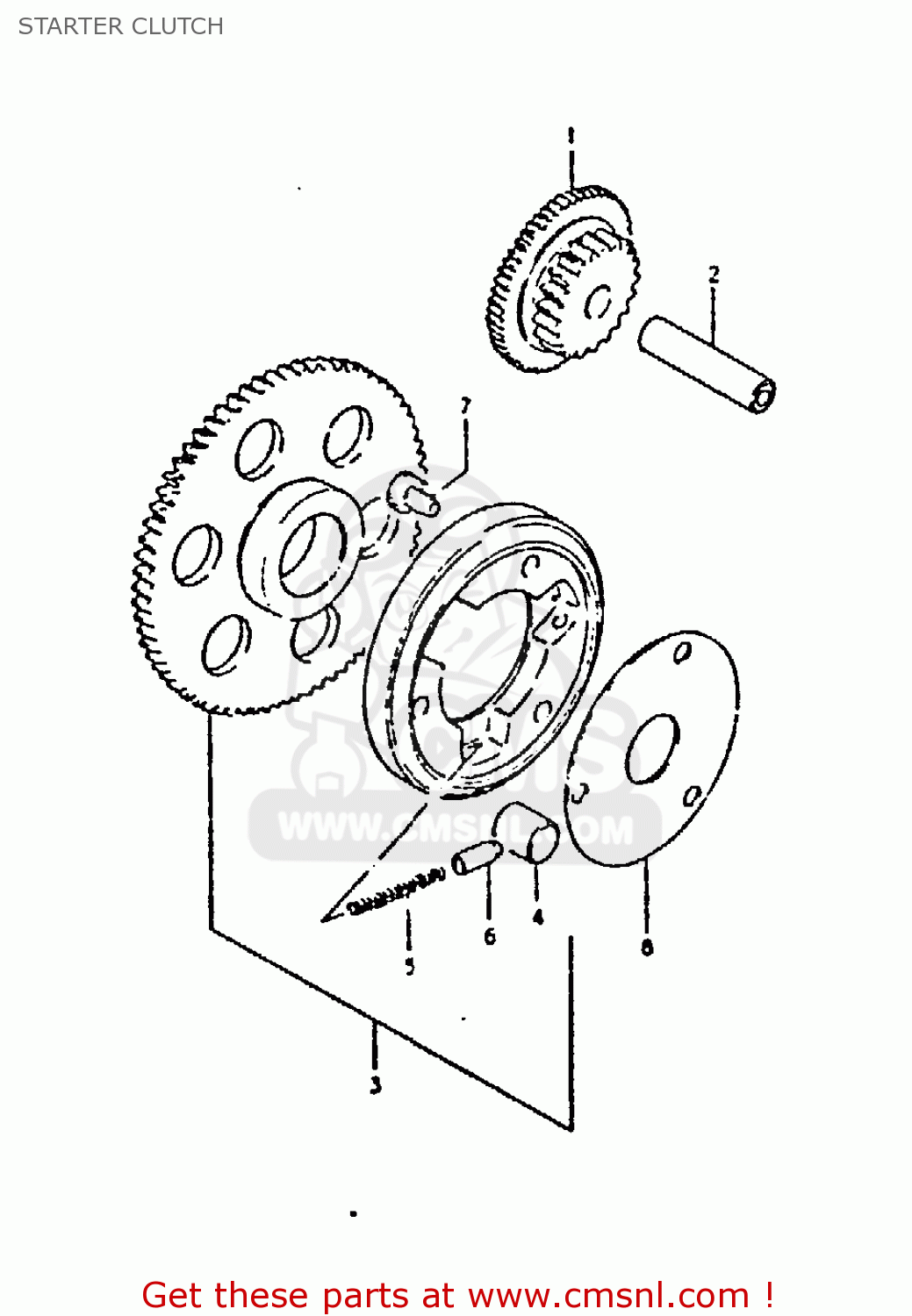

Starter clutch diagram GS250T 1981 (X) UNITED KINGDOM (E02)

STARTER CLUTCH GS250T 1981 (X) UNITED KINGDOM (E02)

STARTER CLUTCH GS250T 1981 (X) UNITED KINGDOM (E02)

prices are in EUR

ref

part #

description

quantity

1

1261111400
ref: 1
NT:65

GEAR,STARTER IDLE

€ 164.00

2

0920613007
ref: 2

PIN(7.4X13X40)

€ 9.00

3

1260011850
ref: 3
NT:65

CLUTCH SET,STARTER

€ 111.50

4

0926115001
ref: 4

ROLLER(15X13)

€ 3.50

5

0944004015
ref: 5

SPRING

€ 2.50

6

1263331000
ref: 6

PIECE,PUSH

€ 9.00

7

0910608006
ref: 7

BOLT

€ 3.00

8

1264945000
ref: 8

SHIM,STARTER CLUTCH HUB

€ 7.00
