CRANKCASE LH COVER

GS400 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

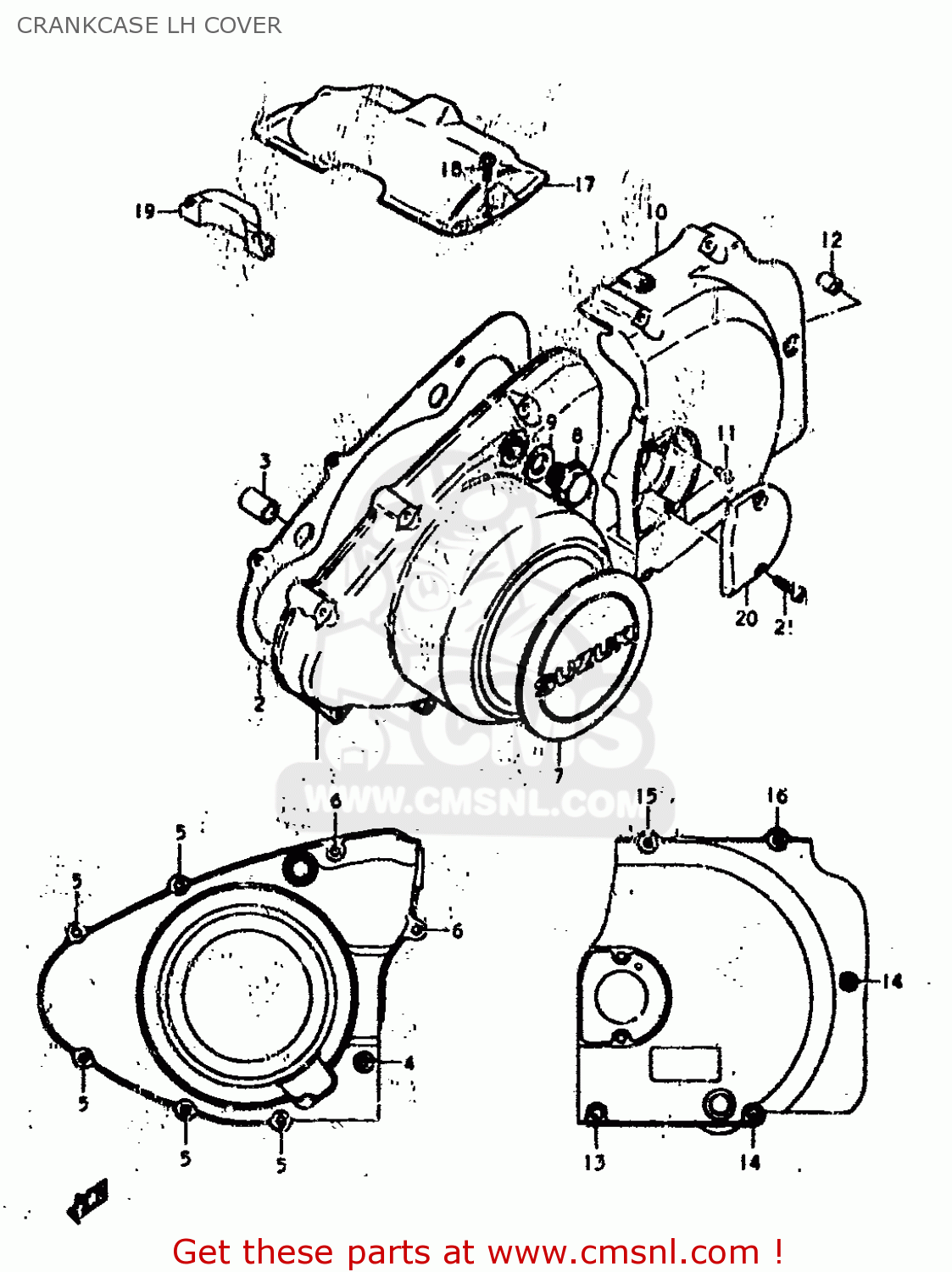

Crankcase lh cover diagram GS400 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

CRANKCASE LH COVER GS400 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
CRANKCASE LH COVER GS400 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
CRANKCASE LH COVER GS400 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
1135144000
ref: 1
COVER
1135144000
€ 98.00
2
1148344000
ref: 2
GASKET,MAGNETO COVER (MCA)
1148344000
€ 14.50
3
0920613001
ref: 3
PIN
0920613001
€ 2.50
4
0211206408
ref: 4
SCREW
€ 2.00
5
0211206358
ref: 5
SCREW (6X35)
€ 2.50
6
0211206307
ref: 6
SCREW
0211206307
€ 2.50
7-2
6823345100
ref: 7-2
GOLD
EMBLEM
6823345100
€ 25.00
8
0924714012
ref: 8
PLUG (14X12)
0924714012
€ 3.50
9
0916814004
ref: 9
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
10
1130044820
ref: 10
COVER,ENGINE SPROCKET
1130044820
€ 132.00
11
0835111009
ref: 11
NIPPLE
0835111009
€ 32.00
12
0421109129
ref: 12
PIN
0421109129
€ 2.00
13
0211206658
ref: 13
SCREW 6X65
0211206658
€ 2.00
14
0211206608
ref: 14
SCREW 6X60
0211206608
€ 2.50
15
0211206508
ref: 15
SCREW
0211206508
€ 2.50
16
0211206307
ref: 16
SCREW
0211206307
€ 2.50
17
1138244001
ref: 17
COVER,STARTER MOTOR
€ 19.00
18
0211205088
ref: 18
SCREW
0211205088
€ 2.00
19
1149844000
ref: 19
GROMMET,STARTING MOTOR
1149844000
€ 8.00
20
1138744000
ref: 20
CAP,CLUTCH RELEASE ADJUST
1138744000
€ 22.50
21
0211205168
ref: 21
SCREW
0211205168
€ 2.50
