Buy Suzuki GS Parts Online


CYLINDER

GS400 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

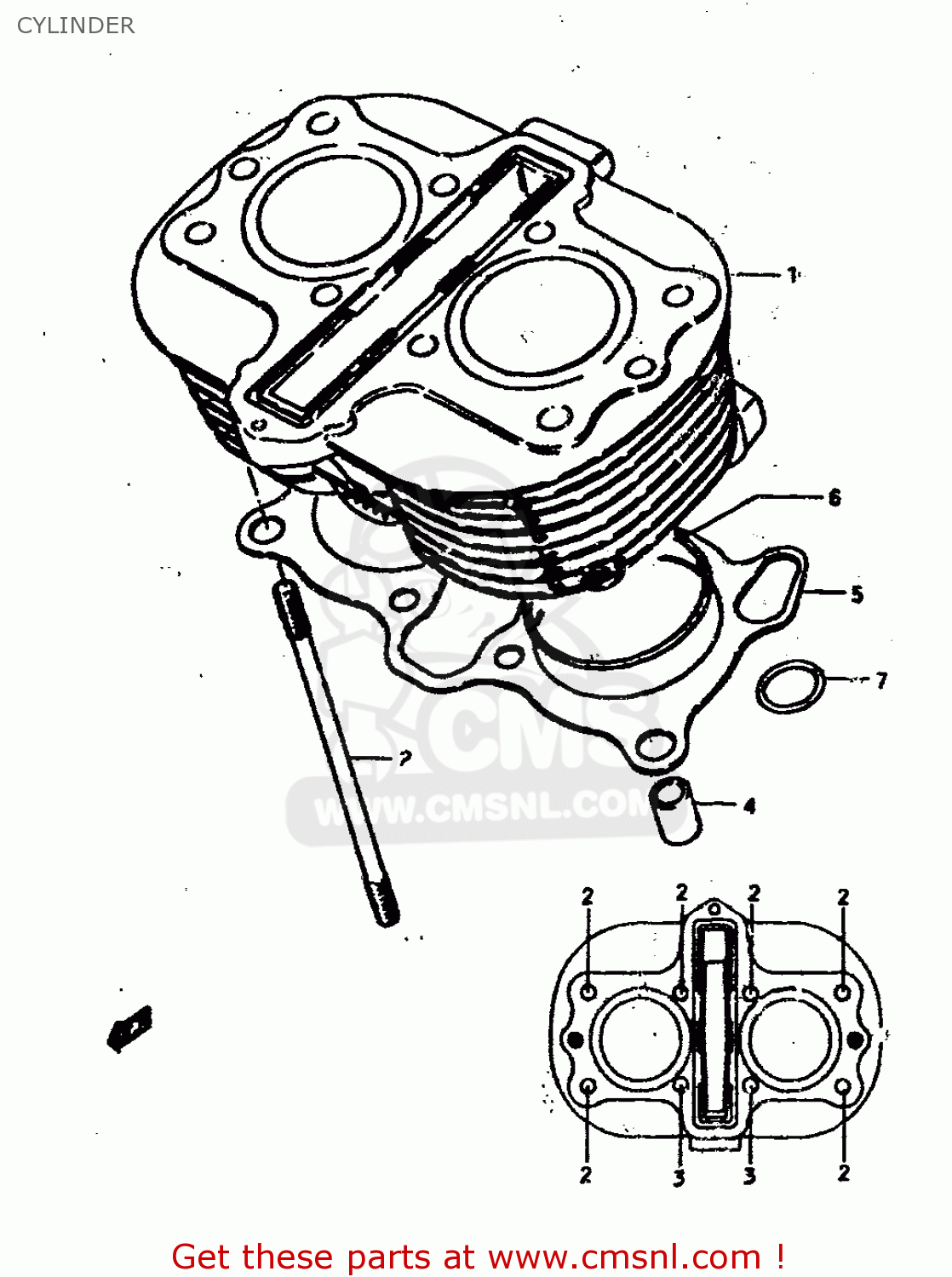

Cylinder diagram GS400 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

CYLINDER GS400 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
CYLINDER GS400 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
CYLINDER GS400 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
1121044002
ref: 1
CYLINDER
€ 624.50
2
0910810020
ref: 2
STUD
€ 9.00
3
0910810028
ref: 3
STUD
0910810028
€ 9.00
4
0920613001
ref: 4
PIN
0920613001
€ 2.50
5
1124144000
ref: 5
GASKET,CYLINDER (MCA)
1124144000
€ 16.00
6
0928070001
ref: 6
O RING(D:2,ID:70)
0928070001
€ 7.50
7
0928021004
ref: 7
O RING(D:3.05)
0928021004
€ 4.00
