FRAME
GS450E 1983 (D) USA (E03)

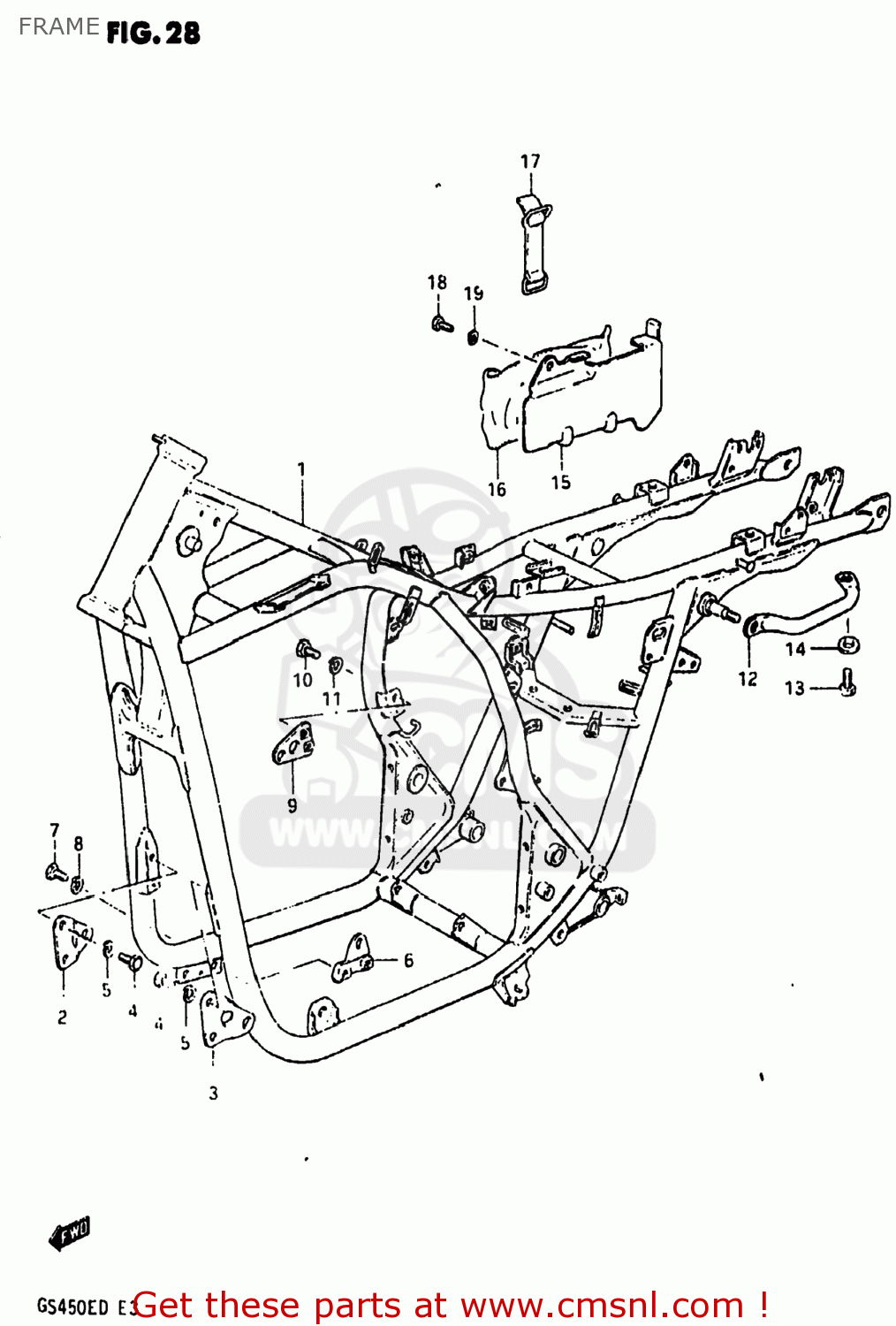

Frame diagram GS450E 1983 (D) USA (E03)
FRAME GS450E 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110044400019
ref: 1
41100-44402-019
FRAME
€ 1,094.00
2
4199144400019
ref: 2
PLATE,ENG MTG NO.1,R
€ 10.00
3
4199244400019
ref: 3
PLATE,ENGINE MOUNTING,LEFT
€ 8.50
4
0110708168
ref: 4
01500-0816B
BOLT
€ 2.00
5
0832121088
ref: 5
08321-01087
LOCK WASHER
€ 2.00
6
4192044110019
ref: 6
PLATE,MOUNTING NO.2,LEFT
€ 0.00
7
0110708168
ref: 7
01500-0816B
BOLT
€ 2.00
8
0832121088
ref: 8
08321-01087
LOCK WASHER
€ 2.00
9
4197011500019
ref: 9
PLATE,MOUNTING NO.4,LEFT
€ 12.00
10
0110708168
ref: 10
01500-0816B
BOLT
€ 2.00
11
0832121088
ref: 11
08321-01087
LOCK WASHER
€ 2.00
12
4161011500
ref: 12
GRIP,FRAME HANDLE
€ 17.00
13
0110708168
ref: 13
01500-0816B
BOLT
€ 2.00
14
0832211088
ref: 14
08322-01087
WASHER
€ 2.00
15
4743044400
ref: 15
47430-44401
HOLDER,TOOL
€ 11.50
16
0980006800
ref: 16
09800-06801
TOOL SET
€ 52.00
17
0946200072
ref: 17
BAND
€ 3.50
18
0110706108
ref: 18
01500-06107
BOLT
€ 2.00
19
0832121068
ref: 19
08321-01067
LOCK WASHER
€ 2.50
