FRONT MASTER CYLINDER

GS450E 1983 (D) USA (E03)

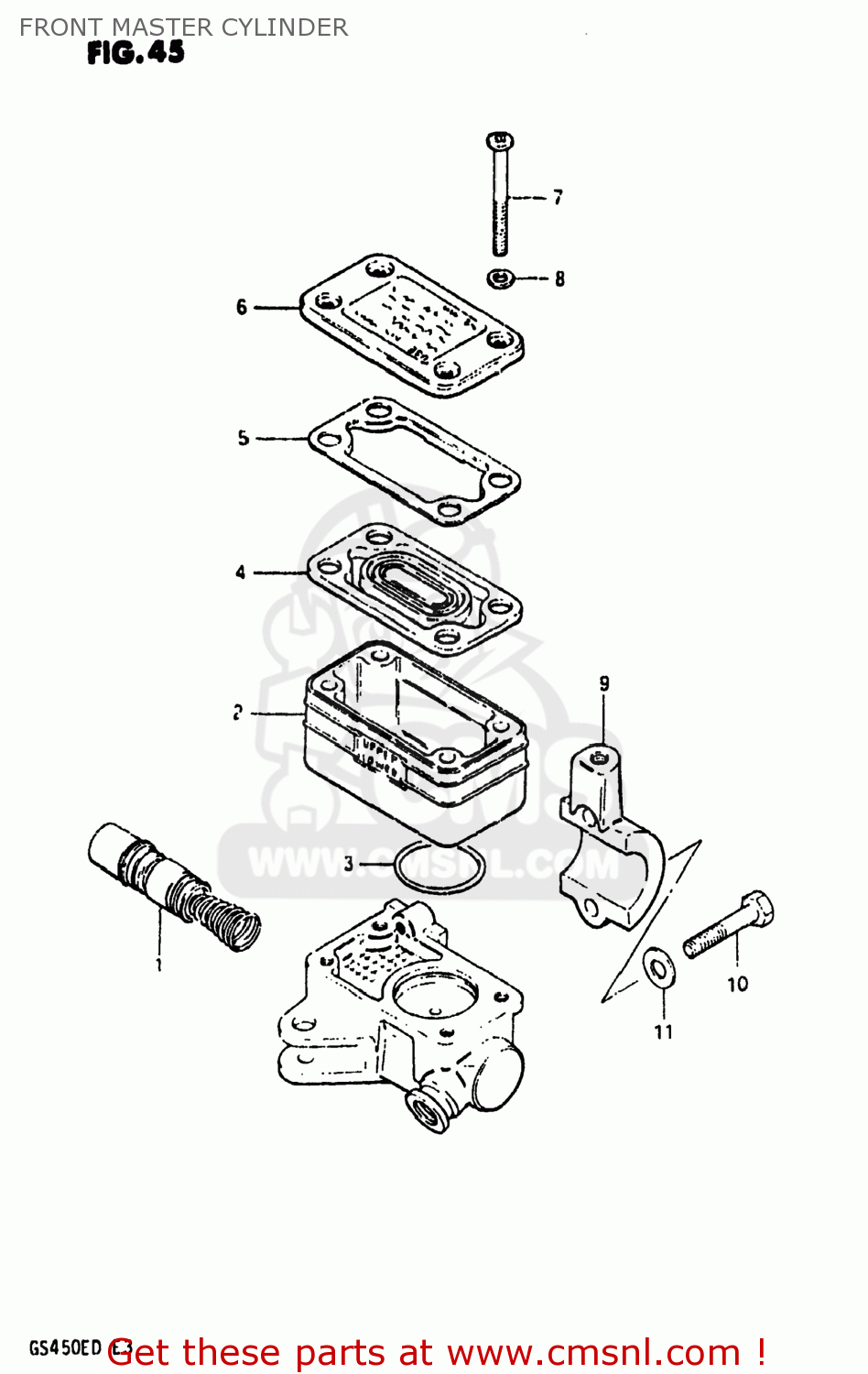

Front master cylinder diagram GS450E 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

5960045231
ref: 0

CYLINDER ASSEMBLY,MASTER

€ 176.50

5960045841
ref: 1

PISTON & CUP SET

€ 41.50

5968745100
ref: 2

RESERVOIR

€ 20.50

5968645100
ref: 3

O RING

€ 9.50

5966745100
ref: 4

DIAPHRAGM

€ 11.50

5966845101
ref: 5

PLATE,DIAPHRAGM

€ 14.50

5966945130
ref: 6

CAP

€ 22.50

5969145100
ref: 7

SCREW

€ 3.00

5969245100
ref: 8

WASHER

€ 3.00

5967145100
ref: 9

HOLDER

€ 17.50

0110706258
ref: 10
01500-06257

BOLT

€ 2.00

0832221068
ref: 11
08322-01067

WASHER

€ 2.00
