SEAT

GS450L 1983 (D) USA (E03)

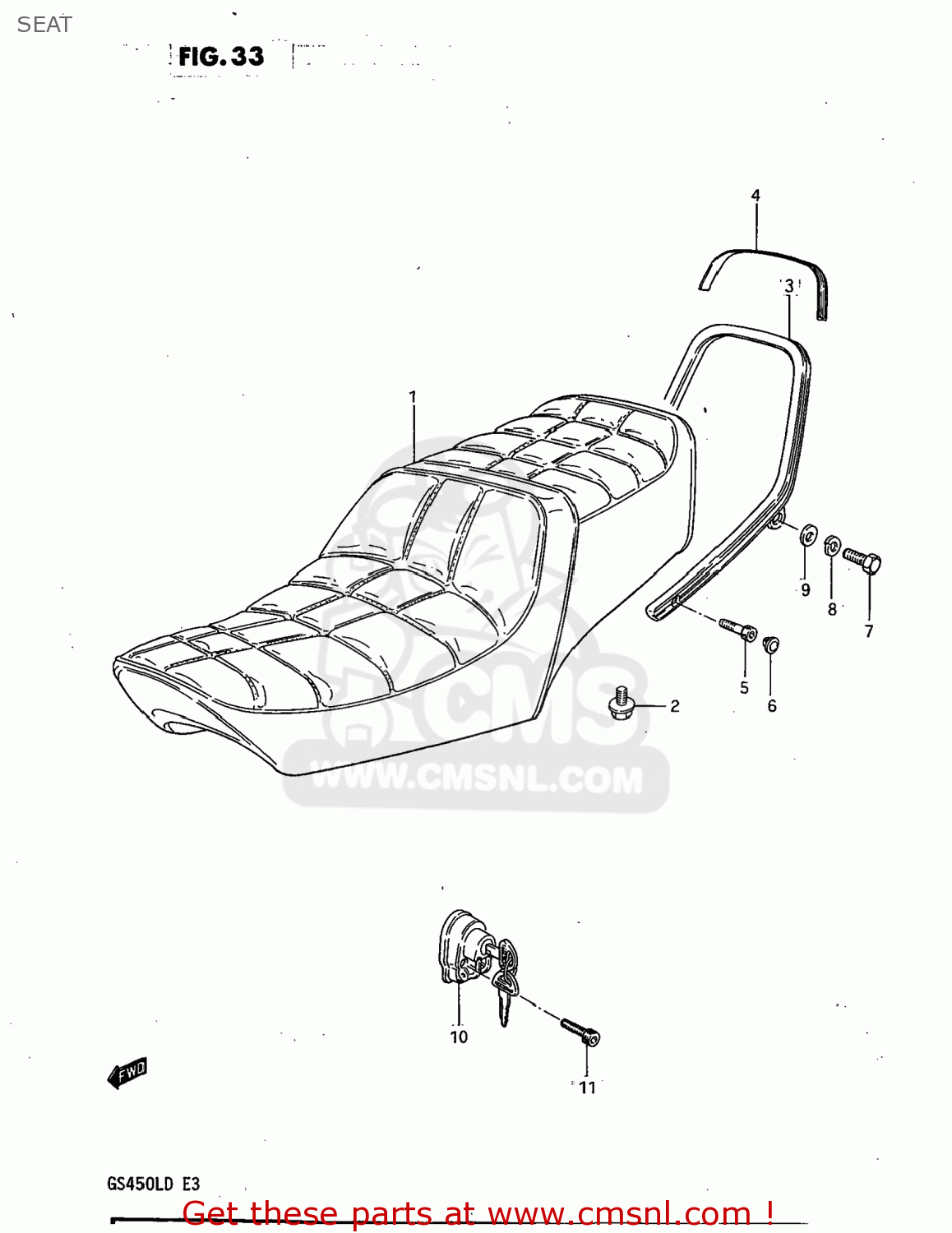

Seat diagram GS450L 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

451001190048G
ref: 1
45100-11900-48H

SEAT ASSEMBLY

€ 136.50

0151706168
ref: 2
01550-06167

BOLT

€ 1.50

4621044900
ref: 3

HANDLE,PILLION RIDER

€ 216.00

4621434410
ref: 4

RUBBER,PILLION RIDER HANDLE

€ 17.50

0910608017
ref: 5
07130-08207

BOLT

€ 3.00

0925006004
ref: 6

CAP(OD:14.5)

€ 1.50

0120408257
ref: 7

BOLT

€ 2.00

0832121088
ref: 8
08321-01087

LOCK WASHER

€ 2.00

0832221088
ref: 9
08322-01087

WASHER

€ 2.00

9570034210
ref: 10

LOCK ASSY,HELMET

€ 59.00

0910605008
ref: 11
07130-0525B

BOLT 5X25

€ 2.00
