SPEEDOMETER - TACHOMETER
GS450L 1983 (D) USA (E03)

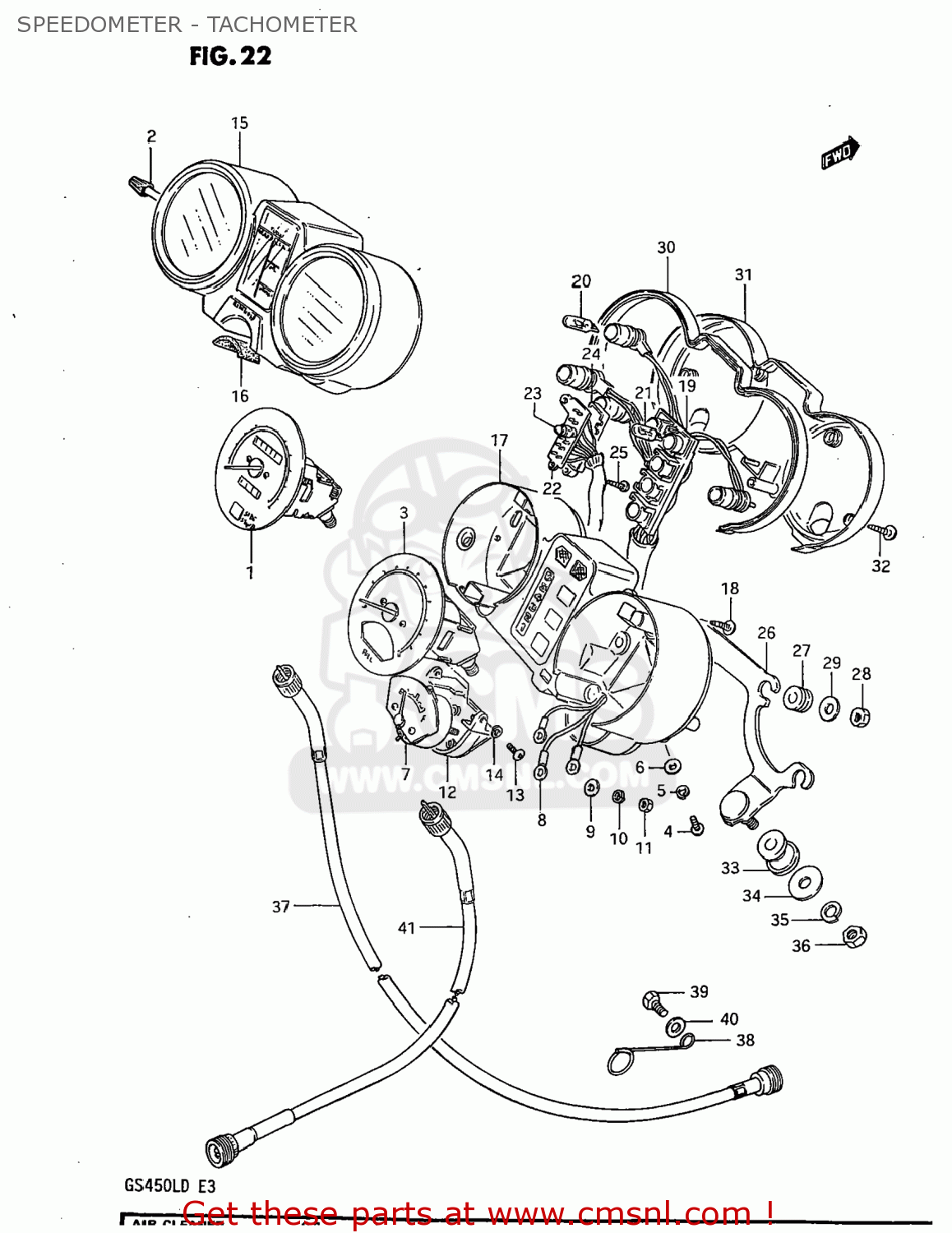

Speedometer - tachometer diagram GS450L 1983 (D) USA (E03)
SPEEDOMETER - TACHOMETER GS450L 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3412044930
ref: 1
METER,SPEEDOMETER (KM/MPH)
€ 147.00
2
3498045020
ref: 2
KNOB
€ 4.50
3
3422044930
ref: 3
34220-44910
TACHOMETER
€ 214.50
4
0211204108
ref: 4
02112-04107
SCREW 4X10
€ 2.00
5
0832221048
ref: 5
08322-01047
WASHER
€ 2.00
6
0832121048
ref: 6
08321-0104A
LOCK WASHER
€ 2.00
7
3432044910
ref: 7
34320-44911
METER,FUEL
€ 86.50
8
3437844910
ref: 8
34378-44911
WIRE,FUEL METER LEAD
€ 14.50
9
3438433220
ref: 9
WASHER,FUEL METER
€ 2.00
10
0832121038
ref: 10
09162-03001
LOCK WASHER
€ 1.50
11
0831011038
ref: 11
08310-0003B
NUT 3MM
€ 2.00
12
3435044910
ref: 12
BRACKET,FUEL METER
€ 7.50
13
0211203108
ref: 13
02112-03107
SCREW
€ 1.50
14
0832121038
ref: 14
09162-03001
LOCK WASHER
€ 1.50
15
3415044910
ref: 15
HOOD,METER
€ 80.00
16
3499347000
ref: 16
SEAL,IGNITION SWITCH
€ 3.00
17
3411144930
ref: 17
34111-44900
CASE,METER,INNER
€ 75.00
18
0214204127
ref: 18
SCREW
€ 2.00
19
3632144930
ref: 19
SOCKET,METER
€ 39.00
20
0947112028
ref: 20
BULB(12V3.4W,T10)
€ 3.50
21
0947112077
ref: 21
BULB(12V1.7W,T10,WB121)
€ 1.00
22
3645344910
ref: 22
SOCKET,GEAR INDICATOR
€ 122.00
23
0947112078
ref: 23
BULB(14V1.12W,BQ041-32503B)
€ 6.50
24
3645444910
ref: 24
COVER,INDICATOR,LOWER
€ 4.50
25
0321103168
ref: 25
03211-03166
SCREW
€ 1.50
26
3495044910
ref: 26
BRACKET,COMBINATION METER
€ 30.00
27
3418944910
ref: 27
34189-32B00
CUSHION,METER
€ 5.00
28
0831011058
ref: 28
08310-00057
NUT
€ 2.50
29
0916005017
ref: 29
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
30
3496144910
ref: 30
COVER,METER,UNDER
€ 59.00
31
3419344910
ref: 31
COVER,LWR
€ 40.00
32
0214204127
ref: 32
SCREW
€ 2.00
33
3495631001
ref: 33
CUSHION,METER BRACKET
€ 4.50
34
0916008002
ref: 34
09160-08135
WASHER (8.5X29X1.6)
€ 2.00
35
0832121088
ref: 35
08321-01087
LOCK WASHER
€ 2.00
36
0831012088
ref: 36
08310-00087
NUT
€ 2.00
37
3491044900
ref: 37
34910-45123
CABLE ASSEMBLY,SPEEDOMETER
€ 24.00
38
3493845100
ref: 38
CLAMP,SPEEDOMETER CABLE
€ 14.50
39
0110706168
ref: 39
01500-06167
BOLT, UPPER
€ 3.00
40
0832221068
ref: 40
08322-01067
WASHER
€ 2.00
41
3494044111
ref: 41
34940-05311
CABLE ASSEMBLY,TACHOMETER
€ 49.00
