FRONT BRAKE HOSE

GS450L 1987 (H) USA (E03)

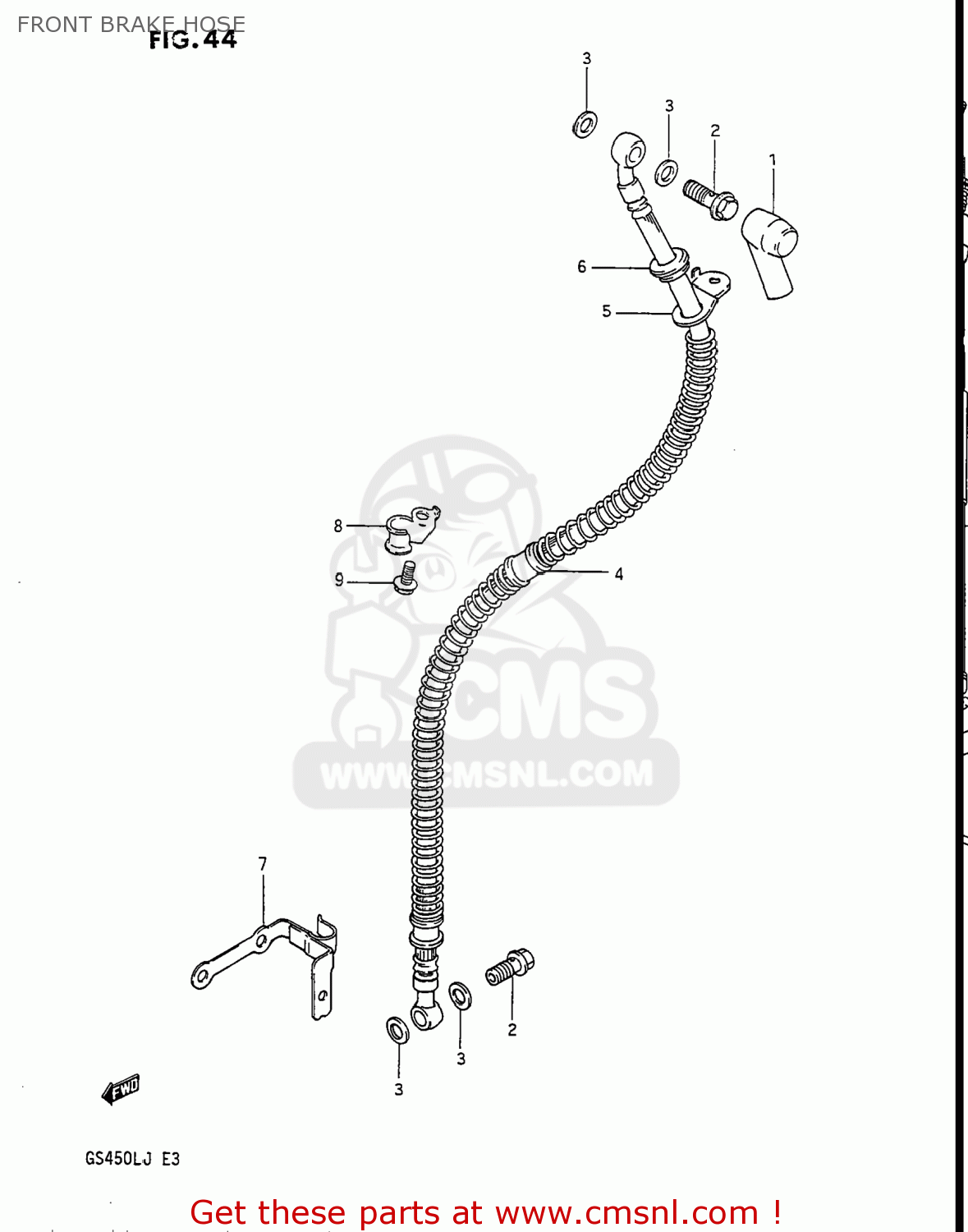

Front brake hose diagram GS450L 1987 (H) USA (E03)

FRONT BRAKE HOSE GS450L 1987 (H) USA (E03)

FRONT BRAKE HOSE GS450L 1987 (H) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5971118400
ref: 1
59711-49001

BOOT,MASTER CYLINDER

€ 8.50

2

0936010017
ref: 2

BOLT UNION

€ 6.50

3

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

4

5948044901
ref: 4

HOSE,BRAKE

€ 104.00

5

5924331000
ref: 5

GUIDE,BRAKE HOSE

€ 11.50

6

0930814007
ref: 6

GROMMET

€ 4.00

7

5927044900
ref: 7

CLAMP,BRAKE HOSE,LEFT

€ 4.00

8

5924611400
ref: 8

GUIDE,BRAKE HOSE NO.3

€ 4.50

9

0151706105
ref: 9
01550-0610A

BOLT

€ 2.50
