GEAR SHIFTING
GS450L 1987 (H) USA (E03)

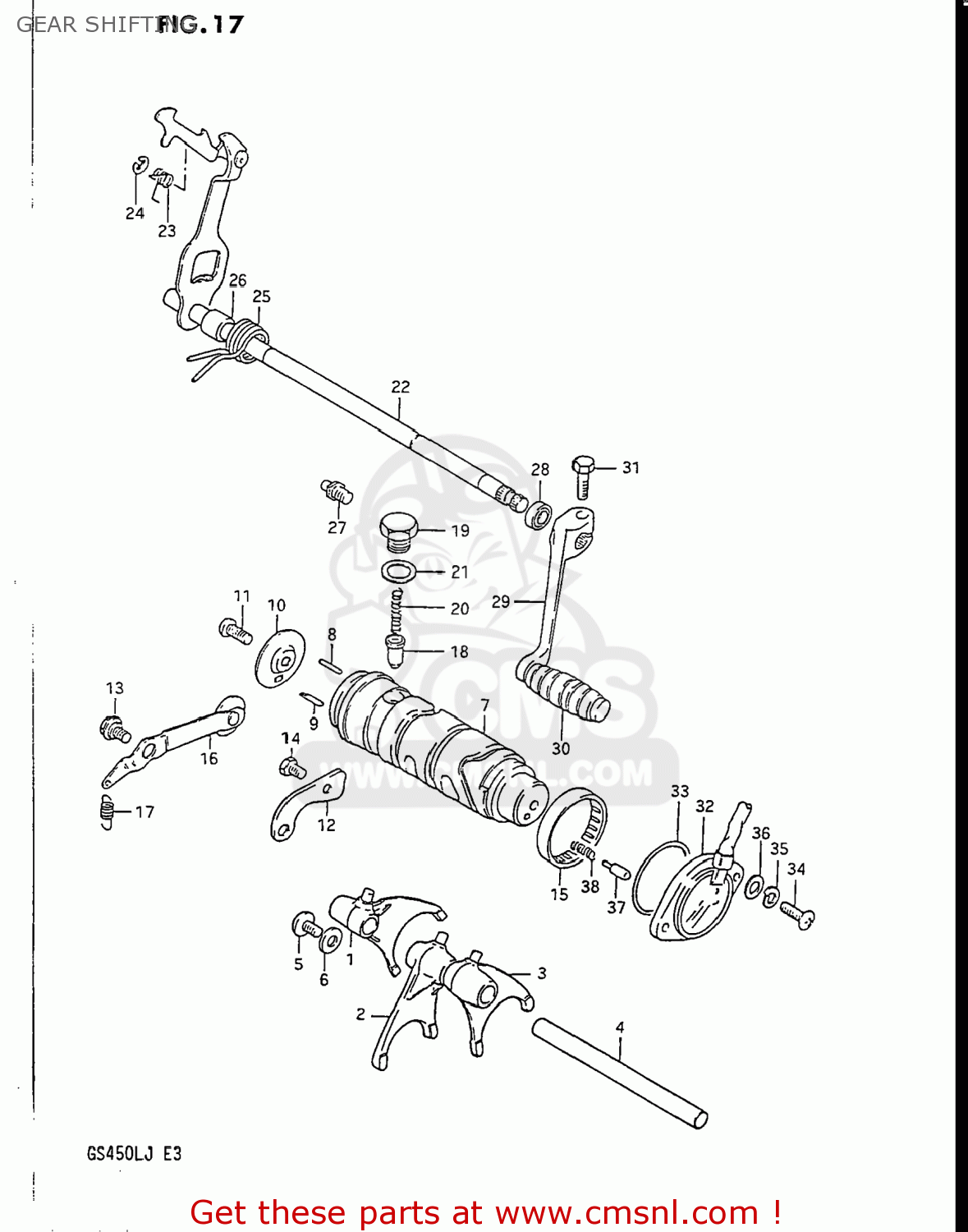

Gear shifting diagram GS450L 1987 (H) USA (E03)
GEAR SHIFTING GS450L 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521144001
ref: 1
FORK,GEAR SHIFT NO.1
€ 70.00
2
2522144001
ref: 2
FORK,GEAR SHIFT NO.2
€ 74.50
3
2523144000
ref: 3
FORK,GEAR SHIFT NO.2
€ 74.50
4
2541131301
ref: 4
25411-18900
SHAFT,GEAR SHIFT FORK
€ 14.50
5
0214206108
ref: 5
02142-06107
SCREW
€ 2.00
6
0821106141
ref: 6
WASHER
€ 2.50
7
2531147001
ref: 7
CAM,GEAR SHIFT
€ 68.50
8
0926104001
ref: 8
PIN(4X18.5)
€ 1.50
9
0920904013
ref: 9
PIN
€ 5.00
10
2532244000
ref: 10
RETAINER,GEAR SHIFT CAM DR PIN
€ 2.50
11
0211206167
ref: 11
SCREW
€ 2.50
12
2534133300
ref: 12
GUIDE,GEAR SHIFT CAM
€ 6.00
13
0911106019
ref: 13
09111-06054
BOLT
€ 1.50
14
0110706166
ref: 14
01500-0616A
BOLT
€ 2.00
15
0926340001
ref: 15
BEARING(40X47X12)
€ 21.00
16
2535044000
ref: 16
STOPPER,GEAR SHIFT CAM NO.1
€ 10.50
17
0944309007
ref: 17
SPRING
€ 14.50
18
2535130010
ref: 18
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
19
2535430010
ref: 19
HOLDER,SHIFTING CAM STOPPER
€ 3.50
20
0944006020
ref: 20
SPRING
€ 14.00
21
0916814004
ref: 21
GASKET(14X19.2X2) (NAS)
€ 2.50
22
2551044100
ref: 22
SHAFT,GEAR SHIFT
€ 83.50
23
0944813008
ref: 23
SPRING
€ 7.00
24
0833211078
ref: 24
08332-1107A
E RING
€ 2.00
25
0944426012
ref: 25
09444-26013
SPRING
€ 3.50
26
0918012068
ref: 26
SPACER(12X20X15.3)
€ 3.00
27
2567101000
ref: 27
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
28
0928512002
ref: 28
09285-12006
OIL SEAL
€ 7.00
29
2560044000
ref: 29
LEVER ASSY,GEAR SHIFT
€ 136.00
30
2565216500
ref: 30
RUBBER,GEAR SHIFT PEDAL
€ 4.00
31
0110708207
ref: 31
01500-08207
BOLT
€ 3.00
32-1
3772033200
ref: 32-1
37720-45100
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 92.50
32-2
3772044700
ref: 32-2
BASE ASSY,GEAR SHIFT TERMINAL
€ 83.50
33
0928026003
ref: 33
09280-26005
O-RING (D:2.4 ID:26.2)
€ 2.50
34
0211205206
ref: 34
02112-0520B
SCREW
€ 2.50
35
0832121056
ref: 35
08321-0105A
LOCK WASHER
€ 3.00
36
0832221056
ref: 36
08322-0105A
WASHER
€ 2.50
37
0920905011
ref: 37
PIN(5X15.5)
€ 2.00
38
0944004010
ref: 38
SPRING
€ 1.50
