FRONT DAMPER (MODEL J)

GS450S 1985 (F) FINLAND ITALY AUSTRIA (E15 E34 E39)

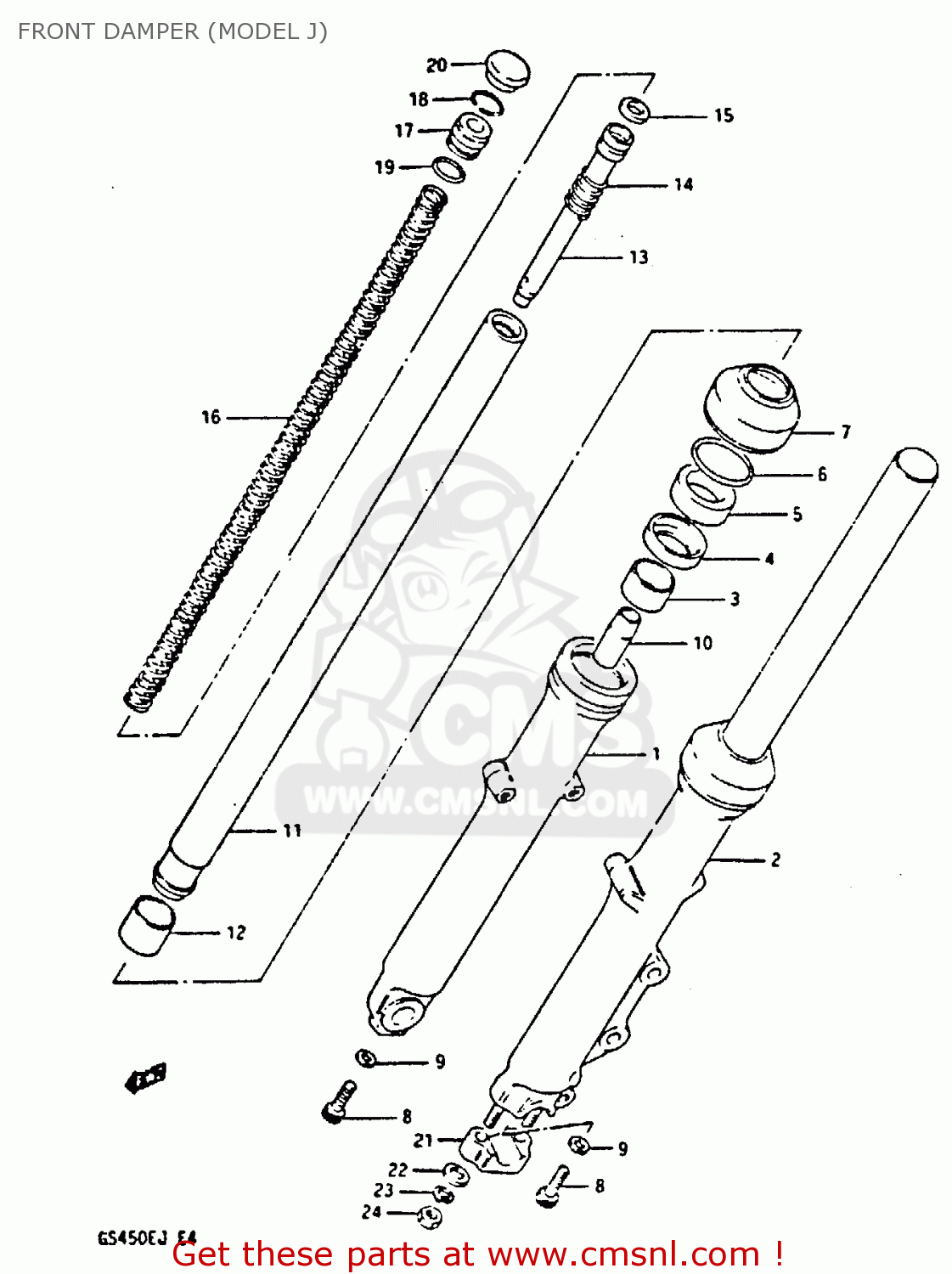

Front damper (model j) diagram GS450S 1985 (F) FINLAND ITALY AUSTRIA (E15 E34 E39)

FRONT DAMPER (MODEL J) GS450S 1985 (F) FINLAND ITALY AUSTRIA (E15 E34 E39)
FRONT DAMPER (MODEL J) GS450S 1985 (F) FINLAND ITALY AUSTRIA (E15 E34 E39)
FRONT DAMPER (MODEL J) GS450S 1985 (F) FINLAND ITALY AUSTRIA (E15 E34 E39)
prices are in EUR
ref
part #
description
quantity
0
5110330C00
ref: 0
DAMPER ASSY, RH
€ 0.00
0
5110430C00
ref: 0
DAMPER ASSY, LH
€ 0.00
1
5113130C00
ref: 1
OUTER TUBE, RH
€ 0.00
2
5114030C00
ref: 2
OUTER TUBE, LH
€ 261.00
3
5115211420
ref: 3
BUSH,GUIDE
5115211420
€ 16.50
4
5116844030
ref: 4
SPACER,OIL SEAL
5116844030
€ 4.50
5
5115302B00
ref: 5
SEAL,OIL
5115302B00
€ 15.00
6
5115602B00
ref: 6
RING,OIL SEAL STOPPER
5115602B00
€ 4.50
7
5157137310
ref: 7
DUST SEAL
5157137310
€ 22.00
8
5114748130
ref: 8
BOLT(8X27)
5114748130
€ 3.50
9
5114836011
ref: 9
GASKET (NAS)
5114836011
€ 4.00
10
5119548000
ref: 10
PIECE,OIL LOCK
5119548000
€ 8.50
11
5111044500
ref: 11
TUBE,FORK,INNER
€ 146.00
12
5112111420
ref: 12
BUSH
5112111420
€ 16.50
13
5114644110
ref: 13
CYLINDER,FRONT FORK
€ 42.00
14
5117736030
ref: 14
SPRING,REBOUND
5117736030
€ 4.50
15
5119633130
ref: 15
RING,PISTON
5119633130
€ 7.50
16
5117111900
ref: 16
SPRING,FRONT FORK
€ 43.50
17
5117548500
ref: 17
SEAT,SPRING
5117548500
€ 9.00
18
5116948500
ref: 18
RING,STOPPER
5116948500
€ 2.00
19
5118133131
ref: 19
O RING
5118133131
€ 5.00
20
5118944301
ref: 20
CAP,FRONT FORK
5118944301
€ 7.00
21
5113231030
ref: 21
HOLDER,AXLE
5113231030
€ 31.50
22
0832221088
ref: 22
WASHER
0832221088
€ 2.00
23
0832121088
ref: 23
LOCK WASHER
0832121088
€ 2.00
24
0831012088
ref: 24
NUT
0831012088
€ 2.00
