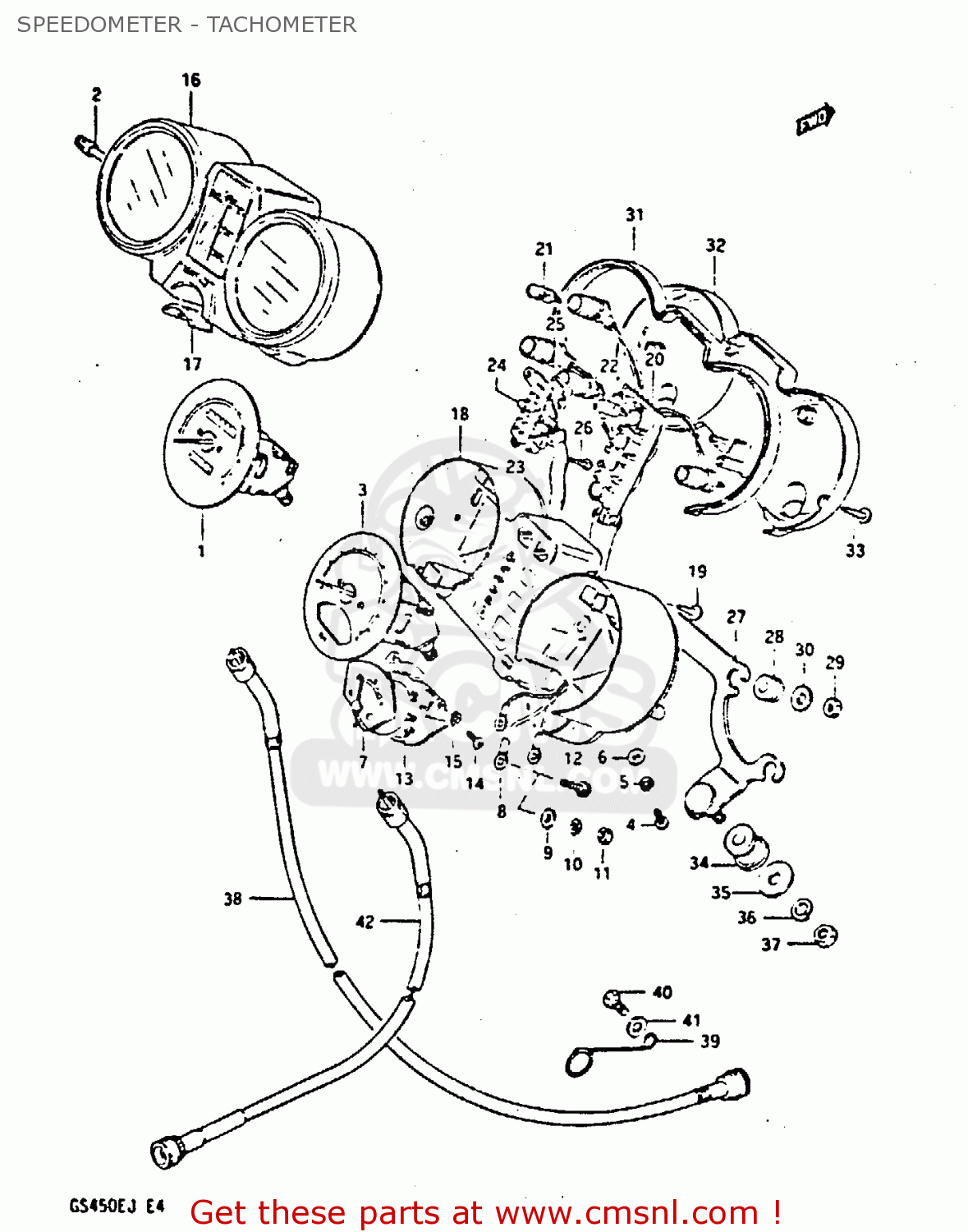

SPEEDOMETER - TACHOMETER - GS450S 1985 (F) FINLAND ITALY AUSTRIA (E15 E34 E39)

ref

part #

description

quantity

1-1

3412044910
ref: 1-1
MODEL E/F/G/H

SPEEDOMETER (KILO)

€ 314.00

1-2

3412044460
ref: 1-2
MODEL J

SPEEDOMETER (KILO)

€ 314.00

1-3

3412044720
ref: 1-3
E2

SPEEDOMETER (MILE/KILO)

€ 147.00

1-4

3412044470
ref: 1-4
E75

SPEEDOMETER (MILE/KILO)

€ 147.00

2

3498045020
ref: 2

KNOB

€ 4.50

3-1

3422044910
ref: 3-1
MODEL E/F/G/H

METER,TACHOMETER

€ 214.50

3-2

3422044460
ref: 3-2
MODEL J

METER,TACHO

€ 214.50

4

0211204108
ref: 4

SCREW 4X10

€ 2.00

5

0832221047
ref: 5

WASHER 4MM

€ 2.00

6

0832121048
ref: 6

LOCK WASHER

€ 2.00

7-1

3432044910
ref: 7-1
MODEL E, TO 34320-44

METER,FUEL

€ 86.50

7-2

3432044911
ref: 7-2
MODEL F/G/H

METER,FUEL

€ 86.50

8

3437844911
ref: 8

WIRE,FUEL METER LEAD

€ 14.50

9

3438433220
ref: 9

WASHER,FUEL METER

€ 2.00

10

0832121038
ref: 10

LOCK WASHER

€ 1.50

11

0831011038
ref: 11

NUT 3MM

€ 2.00

12

3438309400
ref: 12

SCREW(3X22)

€ 2.50

13

3435044910
ref: 13

BRACKET,FUEL METER

€ 7.50

14

0211203108
ref: 14

SCREW

€ 1.50

15

0832121038
ref: 15

LOCK WASHER

€ 1.50

16-1

3415044910
ref: 16-1
MODEL E/F/G/H

HOOD,METER

€ 80.00

16-2

3415044460
ref: 16-2
MODEL J

HOOD, METER

€ 66.50

17

3499347000
ref: 17

SEAL,IGNITION SWITCH

€ 3.00

18-1

3411144910
ref: 18-1
MODEL E/F/G/H

CASE,METER,INNER

€ 75.00

18-2

3411144460
ref: 18-2
MODEL J

CASE, INNER

€ 60.50

19

0214204127
ref: 19

SCREW

€ 2.00

20-1

3632144910
ref: 20-1
MODEL E/F/G/H

SOCKET

€ 71.50

20-2

3632144460
ref: 20-2
MODEL J

SOCKET

€ 64.50

21

0947112028
ref: 21

BULB(12V3.4W,T10)

€ 3.50

22

0947112077
ref: 22

BULB(12V1.7W,T10,WB121)

€ 1.00

23

3645344910
ref: 23

SOCKET,GEAR INDICATOR

€ 122.00

24

0947112078
ref: 24

BULB(14V1.12W,BQ041-32503B)

€ 6.50

25

3645444910
ref: 25

COVER,INDICATOR,LOWER

€ 4.50

26

0321103166
ref: 26

SCREW

€ 1.50

27

3495044910
ref: 27

BRACKET,COMBINATION METER

€ 30.00

28

3418944910
ref: 28

CUSHION,METER

€ 5.00

29

0831011058
ref: 29

NUT

€ 2.50

30

0916005017
ref: 30

WASHER (5.5X16X1.2)

€ 2.50

31

3496144910
ref: 31

COVER,METER,UNDER

€ 59.00

32

3419344910
ref: 32

COVER,LWR

€ 40.00

33

0214204127
ref: 33

SCREW

€ 2.00

34

3495631001
ref: 34

CUSHION,METER BRACKET

€ 4.50

35

0916008057
ref: 35

WASHER (8.5X20X1.6)

€ 2.00

36

0832121084
ref: 36

WASHER,LOCK,8.

€ 2.50

37

0831011085
ref: 37

NUT

€ 1.50

38

3491044400
ref: 38

CABLE ASSY,SPEEDOMETER

€ 27.50

39

3493845100
ref: 39

CLAMP,SPEEDOMETER CABLE

€ 14.50

40

0110706167
ref: 40

BOLT

€ 3.00

41

0832221067
ref: 41

WASHER

€ 2.00

42-1

3494034311
ref: 42-1
E2

CABLE ASSEMBLY,TACHOMETER

€ 20.50

42-2

3494047032
ref: 42-2
E6, E39, MODEL E/F E

CABLE ASSEMBLY,TACHOMETER

€ 20.50

42-3

3494033300
ref: 42-3
E15, E21, MODEL H E3

CABLE ASSEMBLY,TACHOMETER

€ 40.00

42-4

3494047032
ref: 42-4
MODEL J

CABLE ASSEMBLY,TACHOMETER

€ 20.50
