REAR SWINGING ARM

GS450S 1987 (H) FINLAND ITALY AUSTRIA (E15 E34 E39)

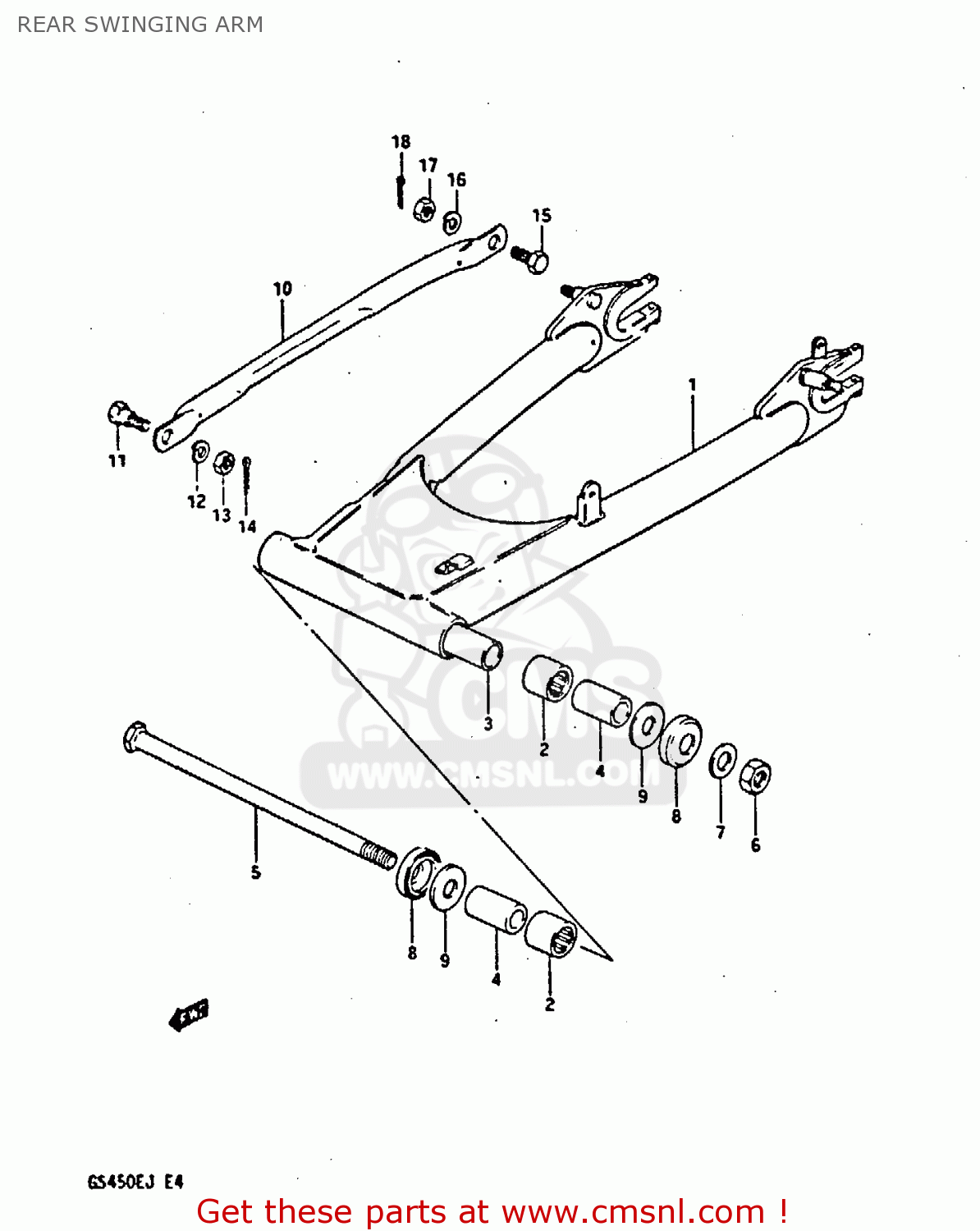

Rear swinging arm diagram GS450S 1987 (H) FINLAND ITALY AUSTRIA (E15 E34 E39)

prices are in EUR

ref

part #

description

quantity

6100044401019
ref: 1

ARM,REAR SWING

€ 247.50

0926322017
ref: 2

BEARING(22X29X30)

€ 18.50

6128144001
ref: 3

SPACER,SWINGINGARM CTR

€ 12.00

6125145001
ref: 4

SPACER,RR SWGARM PIVOT

€ 12.50

6121144400
ref: 5

SHAFT,REAR SWING ARM

€ 20.50

0831921148
ref: 6

NUT 14MM

€ 3.00

0832211148
ref: 7

WASHER

€ 2.00

6126245002
ref: 8

CVR,RR SWGARM DUST SEAL(OD:40)

€ 4.50

0916014020
ref: 9

WASHER(14.2X34X1)

€ 2.50

6431144200019
ref: 10

LINK,REAR TORQUE

€ 13.00

0911110010
ref: 11

BOLT(10X24.5)

€ 5.50

0832121107
ref: 12

WASHER,LOCK,10

€ 2.00

0831022107
ref: 13

NUT

€ 2.50

0411120208
ref: 14

PIN 20X20

€ 1.50

0910110003
ref: 15

BOLT(10X31)

€ 4.00

0832121107
ref: 16

WASHER,LOCK,10

€ 2.00

0831011108
ref: 17

NUT

€ 2.50

0411120208
ref: 18

PIN 20X20

€ 1.50
