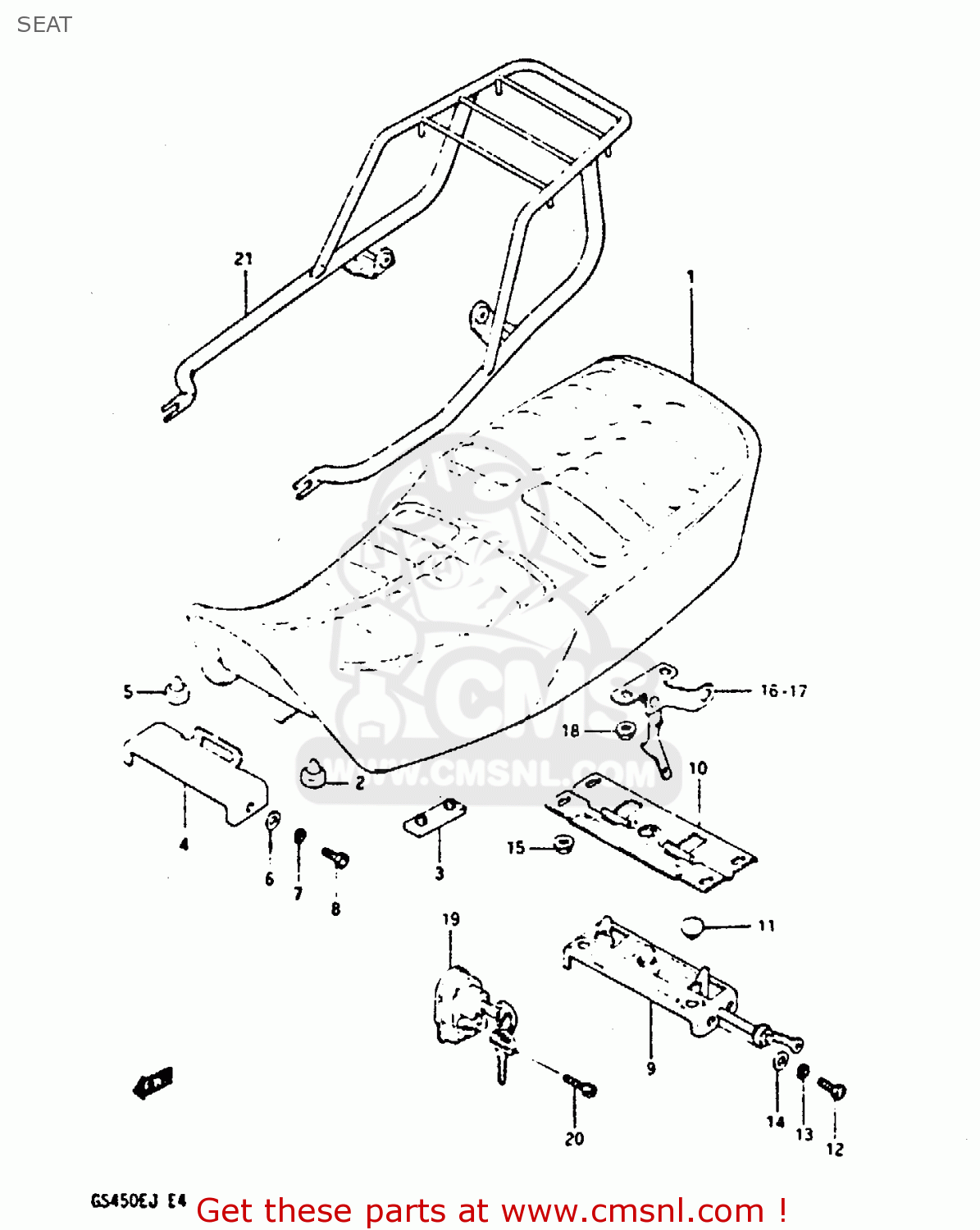

SEAT

ref

part #

description

quantity

1-1

451004441048H
ref: 1-1

SEAT ASSY (BLACK)

€ 333.50

1-2

451004440048H
ref: 1-2
E21, E22, E34, E39,

SEAT ASSEMBLY

€ 333.50

2

0932106016
ref: 2

CUSHION

€ 2.00

3

0932108009
ref: 3

CUSHION

€ 4.00

4

4527144400
ref: 4

PLATE,SEAT LOCK,FRONT

€ 6.50

5

0932110002
ref: 5

CUSHION(11.5X22X20)

€ 2.00

6

0832221066
ref: 6

WASHER, LOWER

€ 2.00

7

0832121066
ref: 7

WASHER,LOCK

€ 2.00

8

0110706126
ref: 8

BOLT

€ 2.00

9

4522044400
ref: 9

PLATE,CLAMP GUIDE

€ 31.50

10

4512444400
ref: 10

PLATE,SEAT CLAMP GUIDE

€ 12.50

11

0932910001
ref: 11

CUSHION

€ 2.50

12

0211205106
ref: 12

SCREW 5X10

€ 2.00

13

0832121056
ref: 13

LOCK WASHER

€ 3.00

14

0832221056
ref: 14

WASHER

€ 2.50

15

0831616066
ref: 15

NUT

€ 2.50

16

4512944400
ref: 16

LEVER,SEAT HOOK,RIGHT

€ 18.00

17

4513044400
ref: 17

LEVER,SEAT HOOK,LEFT

€ 0.00

18

0831616066
ref: 18

NUT

€ 2.50

19

9570034210
ref: 19

LOCK ASSY,HELMET

€ 59.00

20

0711005258
ref: 20

BOLT

€ 2.00

21

4630044401
ref: 21
OPT

CARRIER

€ 95.50

all assemblies
