REAR WHEEL
GS450ST 1980 (T) USA (E03)

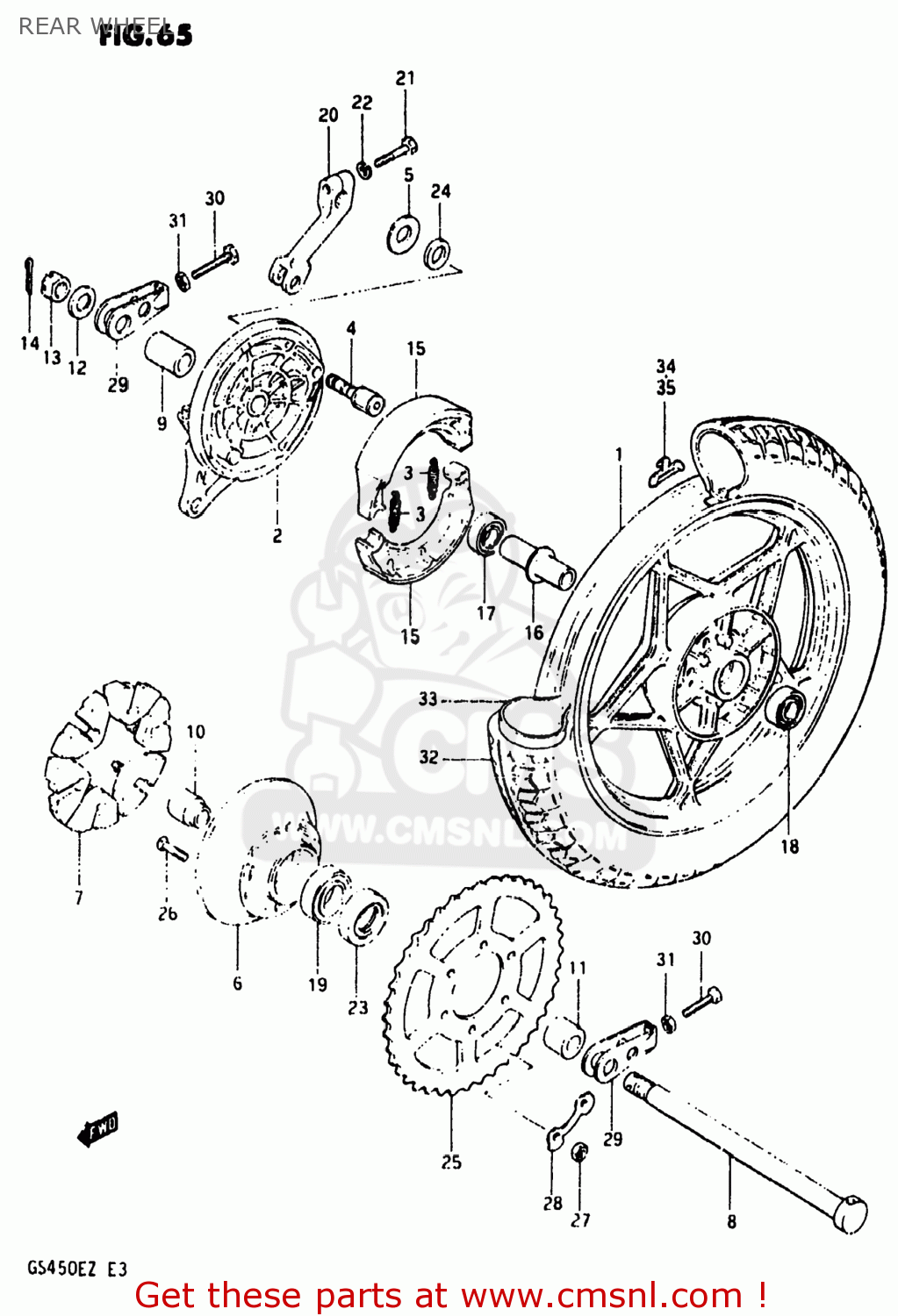

Rear wheel diagram GS450ST 1980 (T) USA (E03)
REAR WHEEL GS450ST 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6415044000
ref: 1-1
64150-44000-12U
WHEEL,REAR
€ 600.50
1-2
641504400012U
ref: 1-2
CASTING WHEEL,REAR 1.85-
€ 600.50
1-3
6415044020
ref: 1-3
64150-44000-12V
WHEEL,REAR
€ 192.00
2
6421044060
ref: 2
PANEL,REAR HUB
€ 111.50
3
5542030000
ref: 3
SPRING,BRAKE SHOE
€ 3.50
4
5444008003
ref: 4
54440-08004
CAM,FRONT BRAKE
€ 19.00
5
0916015001
ref: 5
09160-15048
WASHER (15X24X1.6)
€ 2.50
6-1
6461144000
ref: 6-1
64611-44001
DRUM,REAR SPROCKET MOUNT
€ 84.00
6-2
6461144001
ref: 6-2
DRUM,REAR SPROCKET MOUNT
€ 84.00
7
6465111300
ref: 7
ABSORBER,RR HUB SHOCK
€ 12.50
8
6471133000
ref: 8
64711-3300V
AXLE,REAR
€ 33.50
9
0918017043
ref: 9
SPACER(17.5X28X44.8)
€ 7.00
10
6473333000
ref: 10
64733-3300V
SPACER,REAR HUB BEARING
€ 20.00
11
0918017042
ref: 11
SPACER(17X30.5X22.3)
€ 8.50
12
0916017013
ref: 12
09160-17050
WASHER (17X30X3.2)
€ 2.00
13
0914116001
ref: 13
NUT
€ 6.50
14
0411140308
ref: 14
04111-4030A
PIN,COTTER
€ 1.50
15-1
6441011300
ref: 15-1
64400-11860
SHOE SET,BRAKE
€ 29.50
15-2
6441011301
ref: 15-2
64400-11860
SHOE,BRAKE
€ 29.50
16
0918017056
ref: 16
09180-17056-XC0
SPACER (17.6X24X57)
€ 19.00
17
0814363037
ref: 17
BEARING
€ 23.00
18
0814362037
ref: 18
BEARING
€ 18.50
19
0811362057
ref: 19
BEARING
€ 18.00
20
6445144001
ref: 20
LEVER,RR BRAKE CAM
€ 111.00
21
0110706258
ref: 21
01500-06257
BOLT
€ 2.00
22
0832121068
ref: 22
08321-01067
LOCK WASHER
€ 2.50
23
0928530001
ref: 23
SEAL,OIL(30.5X52X8)
€ 20.00
24
0928015001
ref: 24
09280-15003
O-RING,BOSS
€ 2.00
25
6451144000
ref: 25
SPROCKET,RR
€ 59.00
26
0911910002
ref: 26
09105-10001
BOLT
€ 3.50
27
0914010026
ref: 27
09140-10026-XC0
NUT
€ 2.00
28
0916910006
ref: 28
WASHER
€ 4.50
29
6141044200
ref: 29
ADJUSTER,CHAIN
€ 31.00
30-1
0910408006
ref: 30-1
09104-08034
BOLT
€ 3.00
30-2
0910408018
ref: 30-2
09104-08034
BOLT 8X50
€ 3.00
31
0831012088
ref: 31
08310-00087
NUT
€ 2.00
32-1
6510044111
ref: 32-1
TIRE,RR(3.50S18)
€ 0.00
32-2
6510044130
ref: 32-2
65100-44111
TIRE
€ 0.00
33-1
6520018010
ref: 33-1
65200-44AA0
TUBE ASSEMBLY,WHEEL,INNER
€ 35.00
33-2
6520033030
ref: 33-2
65200-44AA0
TUBE ASSEMBLY,WHEEL,INNER
€ 35.00
34
5541147001
ref: 34
BALANCER,WHEEL
€ 4.00
35
5541247001
ref: 35
BALANCER,WHEEL
€ 3.50
