TURN SIGNAL LAMP
GS450ST 1980 (T) USA (E03)

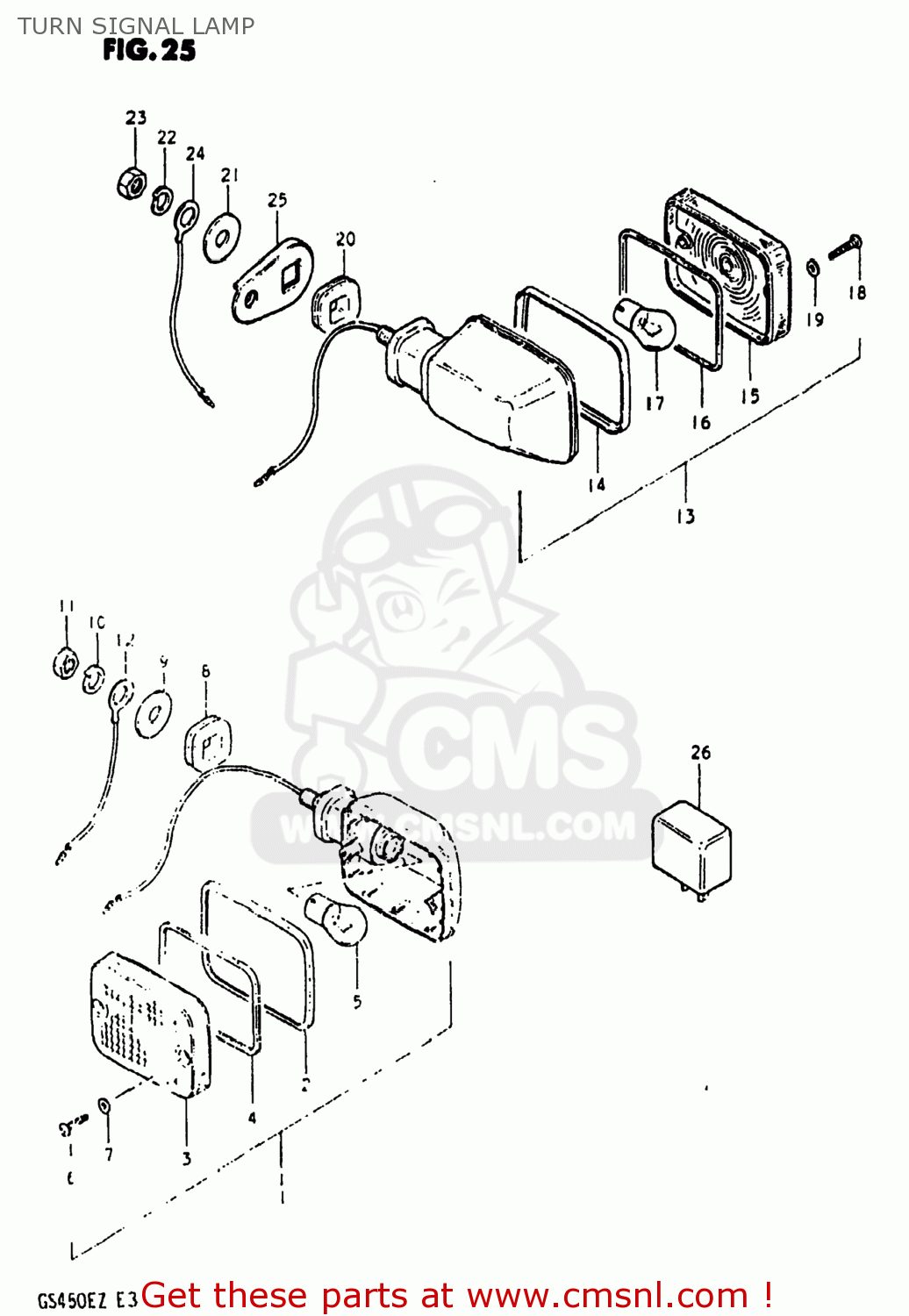

Turn signal lamp diagram GS450ST 1980 (T) USA (E03)
TURN SIGNAL LAMP GS450ST 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3560144130
ref: 1-1
35601-44184-999
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 97.50
1-2
3560144132
ref: 1-2
35601-44184-999
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 97.50
2
3561149230
ref: 2
RIM
€ 11.00
3-1
3561249230
ref: 3-1
35612-49231
LENS
€ 13.00
3-2
3561249231
ref: 3-2
LENS
€ 13.00
4
3561349230
ref: 4
GASKET (NAS)
€ 5.00
5
0947112006
ref: 5
BULB(12V23W,STANLEY,A4577A)
€ 4.00
6
0321104208
ref: 6
03211-04207
SCREW
€ 1.50
7
3562743010
ref: 7
GASKET (NAS)
€ 2.00
8
0932015002
ref: 8
CUSHION
€ 4.50
9
0916010006
ref: 9
09160-10501
WASHER (10.5X30X2.3)
€ 2.50
10
0832121108
ref: 10
08321-01107
LOCK WASHER
€ 2.00
11
0831012108
ref: 11
08310-00107
NUT
€ 2.50
12
3666033000
ref: 12
LEAD WIRE,EARTH
€ 5.00
13-1
3560144130
ref: 13-1
35601-44184-999
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 97.50
13-2
3560144132
ref: 13-2
35601-44184-999
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 97.50
14
3561149230
ref: 14
RIM
€ 11.00
15-1
3561249230
ref: 15-1
35612-49231
LENS
€ 13.00
15-2
3561249231
ref: 15-2
LENS
€ 13.00
16
3561349230
ref: 16
GASKET (NAS)
€ 5.00
17
0947112006
ref: 17
BULB(12V23W,STANLEY,A4577A)
€ 4.00
18
0321104208
ref: 18
03211-04207
SCREW
€ 1.50
19
3562743010
ref: 19
GASKET (NAS)
€ 2.00
20
0932015002
ref: 20
CUSHION
€ 4.50
21
0916010006
ref: 21
09160-10501
WASHER (10.5X30X2.3)
€ 2.50
22
0832121108
ref: 22
08321-01107
LOCK WASHER
€ 2.00
23
0831012108
ref: 23
08310-00107
NUT
€ 2.50
24
3666033000
ref: 24
LEAD WIRE,EARTH
€ 5.00
25
4158032201
ref: 25
BRACKET,RR TURN SIGNAL LAMP
€ 41.50
26
3861045031
ref: 26
38610-31X50
RELAY,TURN SIGNAL
€ 54.50
