CLUTCH
GS450ST 1982 (Z) USA (E03)

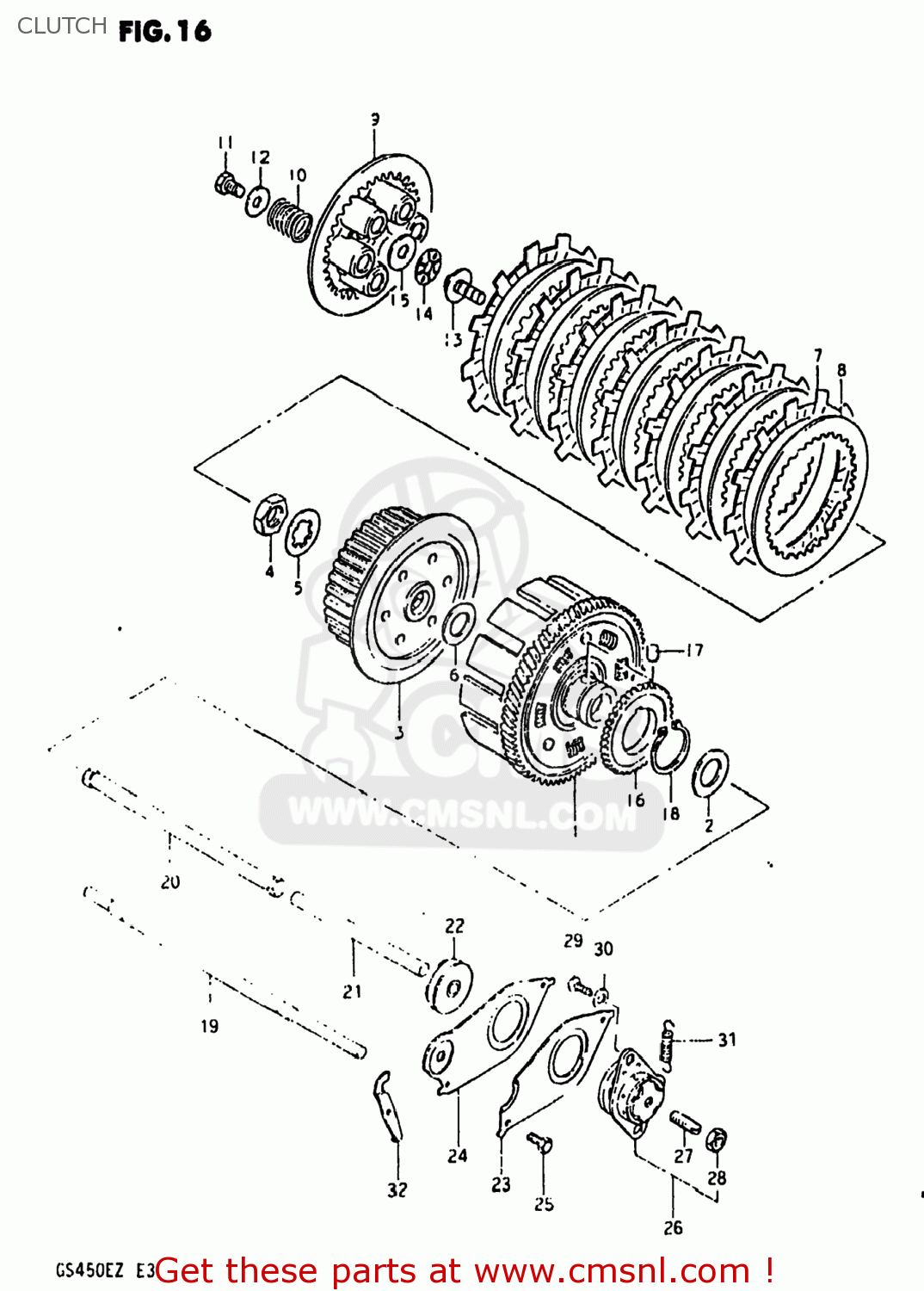

Clutch diagram GS450ST 1982 (Z) USA (E03)
CLUTCH GS450ST 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120044100
ref: 1
21200-44102
GEAR ASSEMBLY,PRIMARY DRIVE
€ 333.00
2
0821125381
ref: 2
09181-25223
WASHER
€ 3.00
3
2141144100
ref: 3
21411-44101
HUB,CLUTCH SLEEVE
€ 56.50
4
0914020002
ref: 4
09140-20001
NUT (20MM)
€ 3.50
5
0916720006
ref: 5
09167-20009
WASHER,LOCK
€ 3.00
6
0916020015
ref: 6
WASHER(20X44X3)
€ 4.50
7
2144140402
ref: 7
21441-37400
PLATE,CLUTCH DRIVE (MCA)
€ 20.50
8
2145145000
ref: 8
21451-28C31
PLATE,CLUTCH DRIVEN (NAS)
€ 10.50
9
2146216501
ref: 9
21462-14301
DISC,CLUTCH PRESSURE
€ 51.00
10
0944019013
ref: 10
09440-19027
SPRING
€ 5.50
11
0110706168
ref: 11
01500-06167
BOLT, UPPER
€ 3.00
12
0916006020
ref: 12
09160-06066
WASHER
€ 2.00
13
2312144100
ref: 13
PIECE,CLUTCH PUSH
€ 21.50
14
0926315003
ref: 14
BEARING(15X28X2)
€ 7.00
15
0916015015
ref: 15
09160-15045
WASHER
€ 4.00
16
1632144001
ref: 16
GEAR,OIL PUMP DRIVE
€ 26.00
17
0926106002
ref: 17
PIN(6X6)
€ 1.50
18
0833131389
ref: 18
08331-31383
CIRCLIP
€ 2.50
19
2310044101
ref: 19
ROD,CLUTCH PUSH
€ 18.50
20
2311044110
ref: 20
23110-44111
ROD,CLUTCH PUSH
€ 13.00
21
2311144110
ref: 21
23111-05A01
ROD,CLUTCH PUSH
€ 13.50
22-1
0928306002
ref: 22-1
SEAL,OIL(6X34X8)
€ 7.00
22-2
0928506011
ref: 22-2
SEAL,OIL(6X34X10)
€ 9.50
23
2311744100
ref: 23
PLATE,CLUTCH PUSH ROD
€ 6.00
24
2311744101
ref: 24
23117-44102
PLATE,CLUTCH PUSH ROD
€ 6.50
25
0110706128
ref: 25
01500-06127
BOLT
€ 2.00
26
2320044100
ref: 26
23200-44101
SCREW ASSEMBLY,CLUTCH RELEASE
€ 63.00
27
0913406001
ref: 27
09134-06010
SCREW
€ 3.00
28
0831022068
ref: 28
08310-00067
NUT 6MM
€ 2.50
29
0311106168
ref: 29
03111-06163
SCREW
€ 1.50
30
0832221068
ref: 30
08322-01067
WASHER
€ 2.00
31
0944308001
ref: 31
SPRING
€ 3.00
32
2312144990
ref: 32
GUIDE,PUSH ROD OIL SEAL
€ 12.50
