SEAT TAIL COVER (MODEL Z)
GS450ST 1982 (Z) USA (E03)

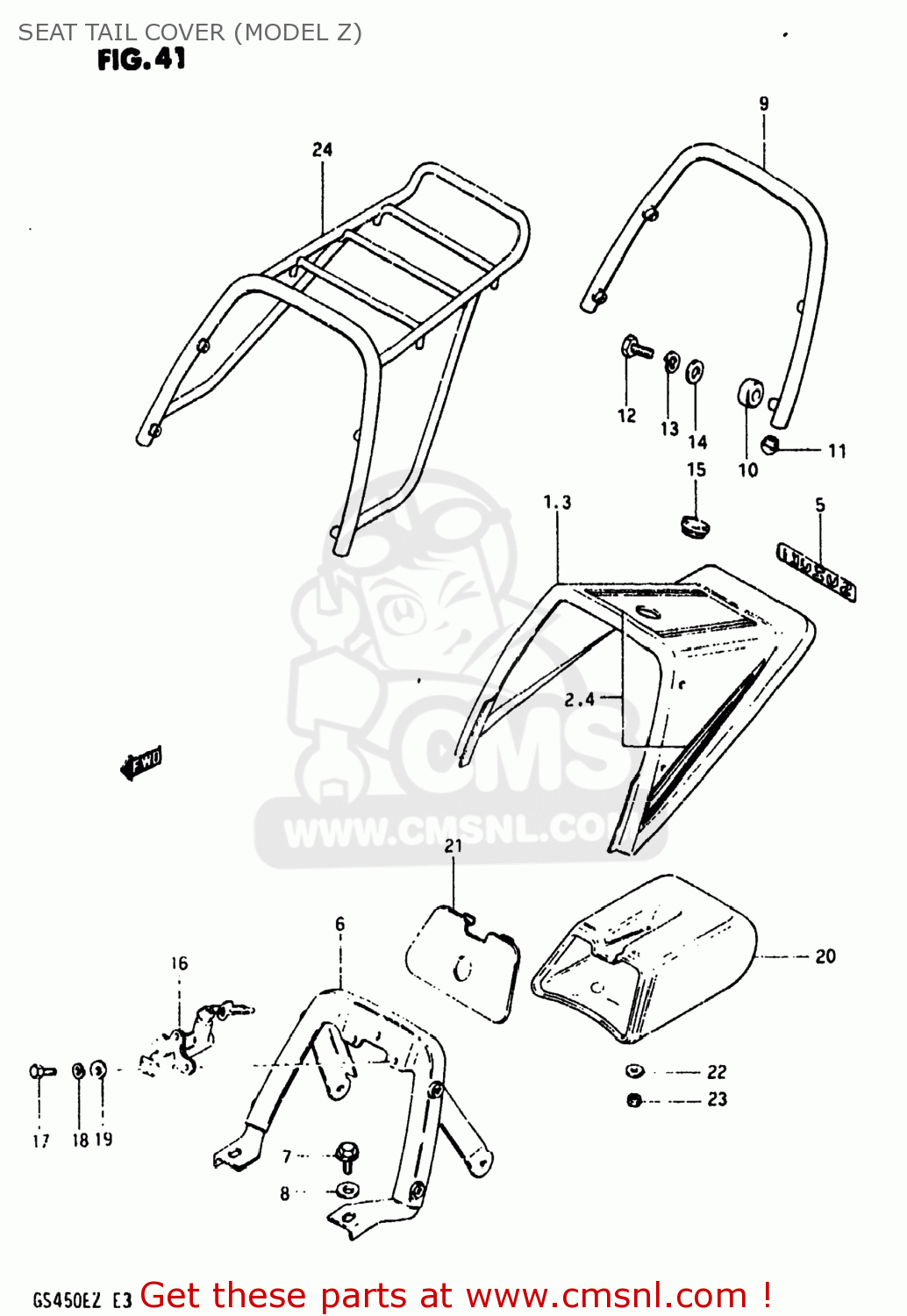

Seat tail cover (model z) diagram GS450ST 1982 (Z) USA (E03)
SEAT TAIL COVER (MODEL Z) GS450ST 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4551144101019
ref: 1
COVER,SEAT TAIL
€ 46.00
2
681604460081H
ref: 2
TAPE SET,SEAT TAIL COVER
€ 12.50
3
455114410105L
ref: 3
COVER,SEAT TAIL
€ 46.00
4
681604460081J
ref: 4
TAPE SET,SEAT TAIL COVER
€ 12.50
5
6816649200998
ref: 5
EMBLEM (GOLD/BLACK)
€ 3.00
6
4553044103
ref: 6
BRACKET, SEAT TAIL COVER
€ 0.00
7
0151708168
ref: 7
01550-08167
BOLT
€ 3.00
8
0916008007
ref: 8
09160-08127
WASHER (8.7X22X2)
€ 2.00
9
4621044100
ref: 9
HANDLE,PILLION RIDER
€ 39.50
10
4621249000
ref: 10
CUSHION
€ 15.00
11
4621349000
ref: 11
END,SHEET HANDLE
€ 5.50
12
0110708308
ref: 12
01500-08307
BOLT (8X30)
€ 2.50
13
0832121088
ref: 13
08321-01087
LOCK WASHER
€ 2.00
14
0832211088
ref: 14
08322-01087
WASHER
€ 2.00
15
4552249200
ref: 15
GROMMET,SEAT LOCK HOLE
€ 5.50
16
9570049830
ref: 16
LOCK SET,SEAT
€ 81.50
17
0110706128
ref: 17
01500-06127
BOLT
€ 2.00
18
0832121068
ref: 18
08321-01067
LOCK WASHER
€ 2.50
19
0832221068
ref: 19
08322-01067
WASHER
€ 2.00
20
9499044100
ref: 20
BOX, SEAT TAIL
€ 48.50
21
9499244100
ref: 21
LID,SEAT TAIL BOX
€ 19.00
22
0832221068
ref: 22
08322-01067
WASHER
€ 2.00
23
0831921068
ref: 23
08319-2106A
NUT 6MM
€ 2.00
24
4631044100
ref: 24
CARRIER
€ 44.00
