Buy Suzuki GS Parts Online
home
SEAT (MODEL T)
GS450SX 1982 (Z) USA (E03)

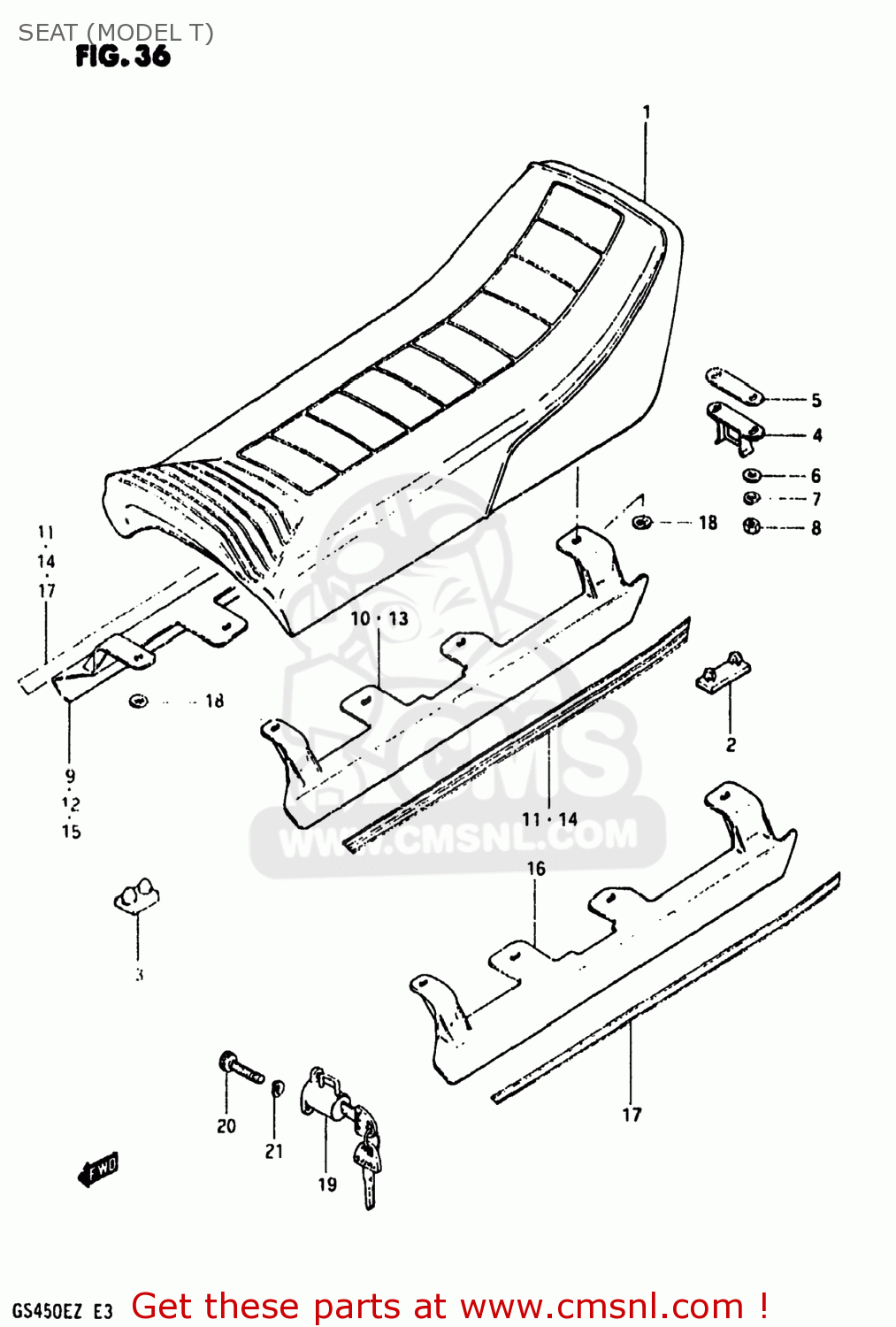

Seat (model t) diagram GS450SX 1982 (Z) USA (E03)
SEAT (MODEL T) GS450SX 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
451004411241G
ref: 1
45100-44104-48G
SEAT ASSEMBLY
€ 281.50
2
0932108009
ref: 2
CUSHION
€ 4.00
3
0932108010
ref: 3
CUSHION
€ 4.00
4
4521044101
ref: 4
STRIKER,SEAT LOCK
€ 32.50
5
4521744100
ref: 5
SHIM,SEAT LOCK STRIKER
€ 4.50
6
0832221068
ref: 6
08322-01067
WASHER
€ 2.00
7
0832121068
ref: 7
08321-01067
LOCK WASHER
€ 2.50
8
0831022068
ref: 8
08310-00067
NUT 6MM
€ 2.50
9-1
4519144101019
ref: 9-1
MOLDING,SEAT
€ 42.00
9-2
4519144102019
ref: 9-2
45191-44102-13L
MOLDING,SEAT
€ 42.00
10-1
4519244101019
ref: 10-1
MOLDING,SEAT
€ 29.50
10-2
4519244102019
ref: 10-2
45192-44102
MOLDING,SEAT
€ 29.50
11
681014484072B
ref: 11
68101-44841-72B
TAPE SET
€ 0.00
12-1
451914410105N
ref: 12-1
MOLDING,SEAT
€ 42.00
12-2
451914410205N
ref: 12-2
45191-44102-13L
MOLDING,SEAT
€ 42.00
13-1
451924410105N
ref: 13-1
45192-44101-737
MOLDING,SEAT
€ 29.50
13-2
451924410205N
ref: 13-2
MOLDING,SEAT
€ 29.50
14
681014484072B
ref: 14
68101-44841-72B
TAPE SET
€ 0.00
15-1
451914410100J
ref: 15-1
MOLDING,SEAT
€ 42.00
15-2
451914410200J
ref: 15-2
45191-44102-13L
MOLDING,SEAT
€ 42.00
16-1
451924410100J
ref: 16-1
45192-44101-737
MOLDING,SEAT
€ 29.50
16-2
451924410200J
ref: 16-2
45192-44102
MOLDING,SEAT
€ 29.50
17
681014485070N
ref: 17
68101-44851-70N
TAPE SET
€ 8.50
18
0914806005
ref: 18
09148-06008
NUT
€ 1.50
19
9570035821
ref: 19
95700-49850
LOCK ASSEMBLY,HELMET
€ 57.50
20
0910606024
ref: 20
07130-0610B
BOLT 6X11
€ 2.50
21
0832121068
ref: 21
08321-01067
LOCK WASHER
€ 2.50
