SPEEDOMETER - TACHOMETER
GS450SX 1982 (Z) USA (E03)

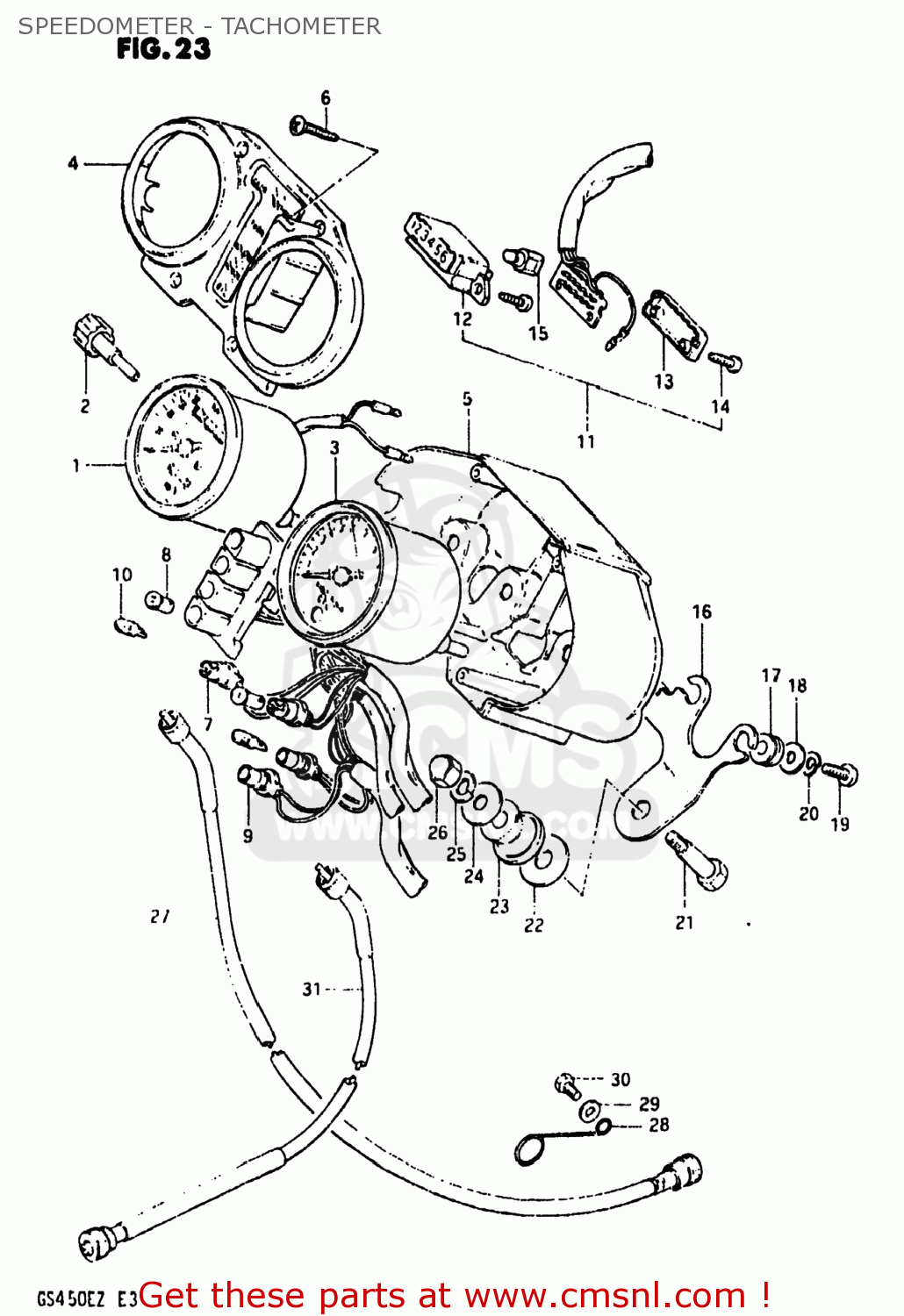

Speedometer - tachometer diagram GS450SX 1982 (Z) USA (E03)
SPEEDOMETER - TACHOMETER GS450SX 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3411044110
ref: 1
34110-44130
SPEEDOMETER ASSEMBLY
€ 285.50
2
3412444100
ref: 2
KNOB,TRIP METER
€ 4.00
3
3421044100
ref: 3
34210-44121
TACHOMETER
€ 293.50
4
3415144100
ref: 4
CASE,METER,UPPER
€ 51.50
5
3415244100
ref: 5
VISOR,LWR
€ 96.00
6
0312104208
ref: 6
SCREW
€ 1.50
7
3417344100
ref: 7
SOCKET,SPEEDOMETER
€ 23.50
8
0947112001
ref: 8
BULB(12V3.4W,STANLEY,A72A)
€ 1.50
9
3417344101
ref: 9
SOCKET,SPEEDOMETER
€ 10.00
10
0947112028
ref: 10
BULB(12V3.4W,T10)
€ 3.50
11
3645044100
ref: 11
36450-47751
INDICATOR ASSEMBLY,GEAR POSITION
€ 112.00
12
3645245100
ref: 12
CASE,GEAR INDICATOR
€ 14.50
13
3645445100
ref: 13
COVER,LWR
€ 7.00
14
3645645100
ref: 14
03511-03146
SCREW,GEAR INDICATOR
€ 2.00
15
0947112071
ref: 15
BULB(14V1.12W)
€ 5.00
16-1
3495044100
ref: 16-1
34950-37352
BRACKET,METER
€ 23.00
16-2
3495044101
ref: 16-2
34950-37352
BRACKET,METER
€ 23.00
17
3418944100
ref: 17
CUSHION
€ 2.50
18
3418144100
ref: 18
09160-04026
WASHER,METER
€ 1.50
19
0211204128
ref: 19
02112-0412A
SCREW
€ 1.50
20
0832121048
ref: 20
08321-0104A
LOCK WASHER
€ 2.00
21
0911108040
ref: 21
09111-08031
BOLT
€ 4.00
22
0832211108
ref: 22
08322-01107
WASHER
€ 2.50
23-1
3495631000
ref: 23-1
34956-31001
CUSHION,METER
€ 4.50
23-2
3495631001
ref: 23-2
CUSHION,METER BRACKET
€ 4.50
24
0916008047
ref: 24
09160-08130
WASHER(8.5X23X1.2)
€ 2.00
25
0832121088
ref: 25
08321-01087
LOCK WASHER
€ 2.00
26
0831311088
ref: 26
08313-10087
NUT
€ 2.50
27-1
3491045110
ref: 27-1
34910-45114
CABLE ASSEMBLY,SPEEDOMETER
€ 31.50
27-2
3491045112
ref: 27-2
34910-45114
CABLE ASSEMBLY,SPEEDOMETER
€ 31.50
27-3
3491045113
ref: 27-3
34910-45114
CABLE ASSEMBLY,SPEEDOMETER
€ 31.50
28
3493845100
ref: 28
CLAMP,SPEEDOMETER CABLE
€ 14.50
29
0832221068
ref: 29
08322-01067
WASHER
€ 2.00
30
0110706168
ref: 30
01500-06167
BOLT, UPPER
€ 3.00
31-1
3494044035
ref: 31-1
34940-37311
CABLE ASSEMBLY,TACHOMETER
€ 36.50
31-2
3494044111
ref: 31-2
34940-05311
CABLE ASSEMBLY,TACHOMETER
€ 49.00
