FRONT FORK (GS450TX)
GS450T 1981 (X) USA (E03)

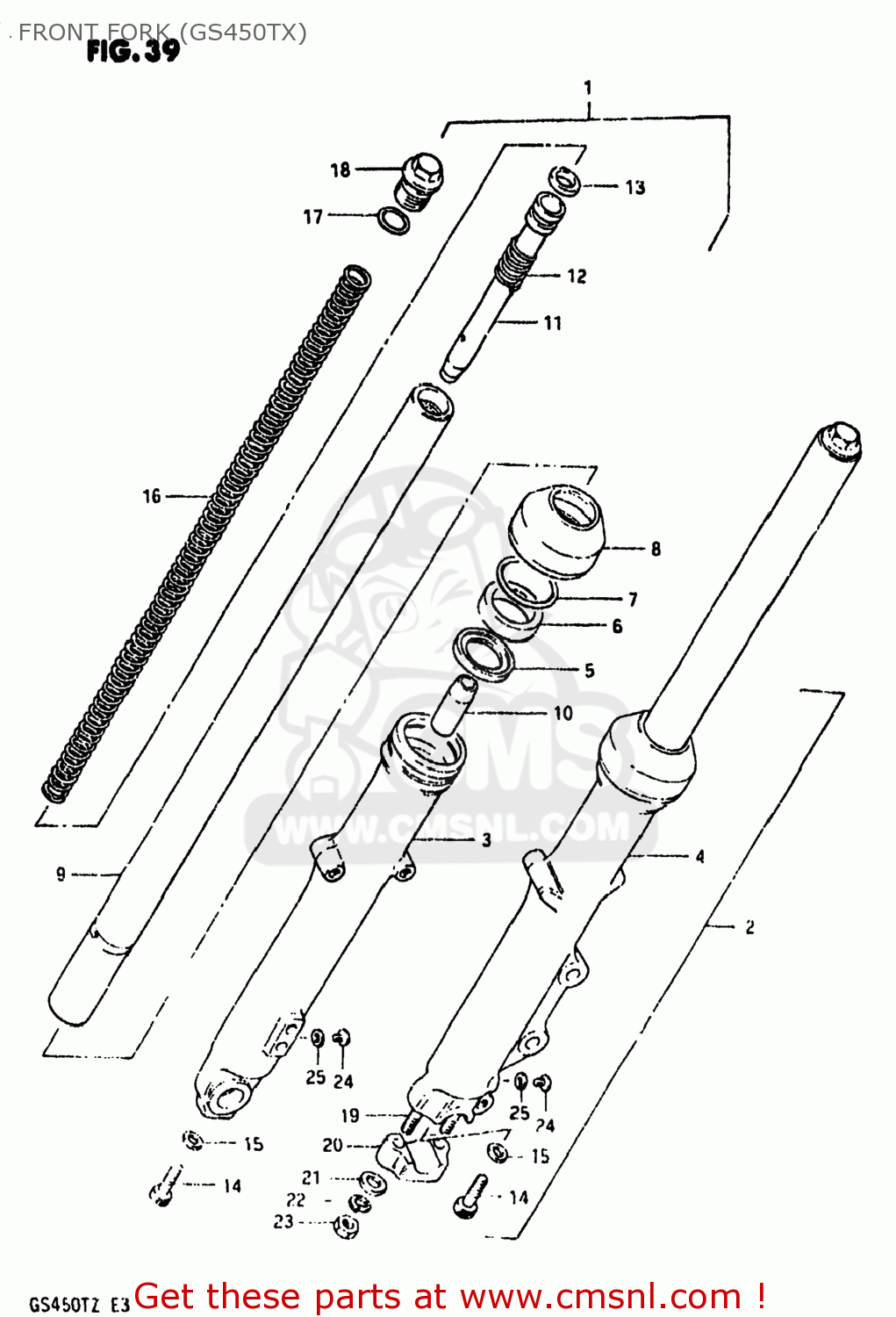

Front fork (gs450tx) diagram GS450T 1981 (X) USA (E03)
FRONT FORK (GS450TX) GS450T 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110344300
ref: 1
51103-44301
DAMPER ASSEMBLY,RIGHT
€ 143.50
2
5110444300
ref: 2
51104-44301
DAMPER ASSEMBLY,LEFT
€ 207.00
3
5113044033
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 129.00
4
5114044031
ref: 4
TUBE,FORK,LEFT,OUTER
€ 107.50
5
5116844030
ref: 5
SPACER,OIL SEAL
€ 4.50
6
5115337310
ref: 6
51153-02B00
OIL SEAL,FRONT FORK
€ 15.00
7
5115633130
ref: 7
51156-02B00
CIRCLIP,FORK OIL SEAL
€ 4.50
8
5157137310
ref: 8
DUST SEAL
€ 22.00
9
5111044030
ref: 9
TUBE,INNER
€ 197.50
10
5119548000
ref: 10
PIECE,OIL LOCK
€ 8.50
11
5114611400
ref: 11
CYLINDER,FRONT FORK
€ 43.00
12
5117736030
ref: 12
SPRING,REBOUND
€ 4.50
13
5119633130
ref: 13
RING,PISTON
€ 7.50
14
5114748130
ref: 14
BOLT(8X27)
€ 3.50
15
5114831030
ref: 15
51148-36011
GASKET (NAS)
€ 4.00
16
5117144300
ref: 16
51171-44301
SPRING
€ 0.00
17
5118131030
ref: 17
O RING
€ 3.50
18
5135133130
ref: 18
BOLT
€ 30.50
19
0142108258
ref: 19
01421-0825A
STUD 8X25
€ 2.50
20
5113231030
ref: 20
HOLDER,AXLE
€ 31.50
21
0832221088
ref: 21
08322-01087
WASHER
€ 2.00
22
0832121088
ref: 22
08321-01087
LOCK WASHER
€ 2.00
23
0914008005
ref: 23
09140-08017
NUT (8MM)
€ 1.50
24
0211204068
ref: 24
02112-0406B
SCREW 4X6
€ 2.00
25
5118333030
ref: 25
GASKET (NAS)
€ 6.50
