REAR SWINGING ARM
GS450T 1981 (X) USA (E03)

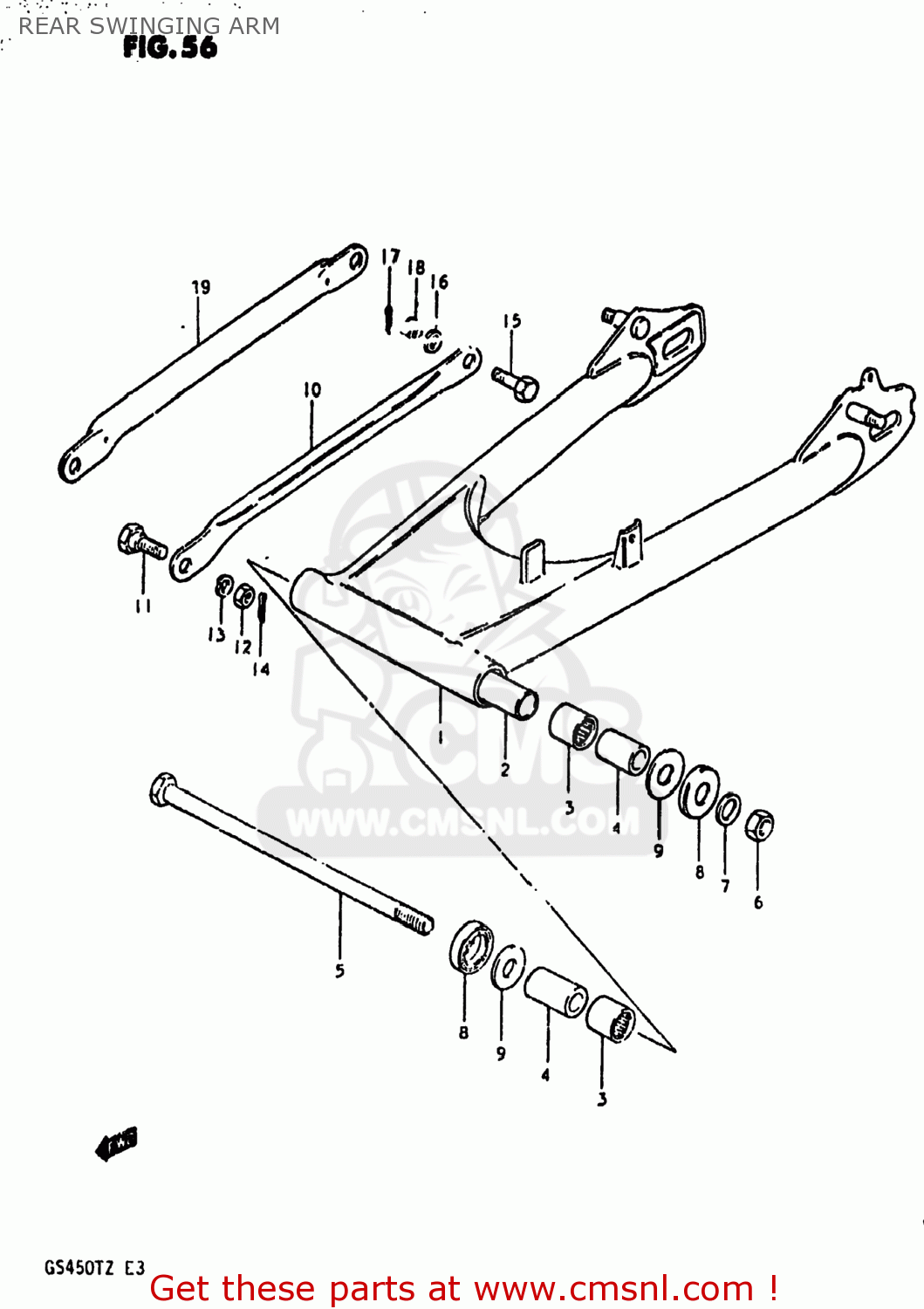

Rear swinging arm diagram GS450T 1981 (X) USA (E03)
REAR SWINGING ARM GS450T 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6110044820019
ref: 1-1
61100-44821-019
SWING ARM ASSEMBLY,REAR
€ 180.00
1-2
6110044821019
ref: 1-2
ARM,REAR SWING
€ 180.00
2
6128144001
ref: 2
SPACER,SWINGINGARM CTR
€ 12.00
3
0926322017
ref: 3
BEARING(22X29X30)
€ 18.50
4
6125145001
ref: 4
SPACER,RR SWGARM PIVOT
€ 12.50
5
6121131001
ref: 5
61211-3100V
SHAFT,REAR SWING ARM
€ 62.50
6
0831921148
ref: 6
08319-2114A
NUT 14MM
€ 3.00
7
0832211148
ref: 7
08322-01147
WASHER
€ 2.00
8
6126245002
ref: 8
CVR,RR SWGARM DUST SEAL(OD:40)
€ 4.50
9
0916014020
ref: 9
WASHER(14.2X34X1)
€ 2.50
10
6431144000
ref: 10
64311-44200-019
TORQUE LINK,REAR
€ 13.00
11
0911110010
ref: 11
BOLT(10X24.5)
€ 5.50
12
0831022108
ref: 12
08310-00107
NUT
€ 2.50
13
0832121108
ref: 13
08321-01107
LOCK WASHER
€ 2.00
14-1
0411120158
ref: 14-1
04111-2015A
PIN
€ 1.50
14-2
0411120208
ref: 14-2
04111-2020A
PIN 20X20
€ 1.50
15
0910110003
ref: 15
BOLT(10X31)
€ 4.00
16
0832121108
ref: 16
08321-01107
LOCK WASHER
€ 2.00
17-1
0411120158
ref: 17-1
04111-2015A
PIN
€ 1.50
17-2
0411120208
ref: 17-2
04111-2020A
PIN 20X20
€ 1.50
18
0831011108
ref: 18
08310-00107
NUT
€ 2.50
19
6431131001
ref: 19
64311-31001-13L
TORQUE LINK,REAR
€ 28.00
