GS450T 1982 (Z) USA (E03)

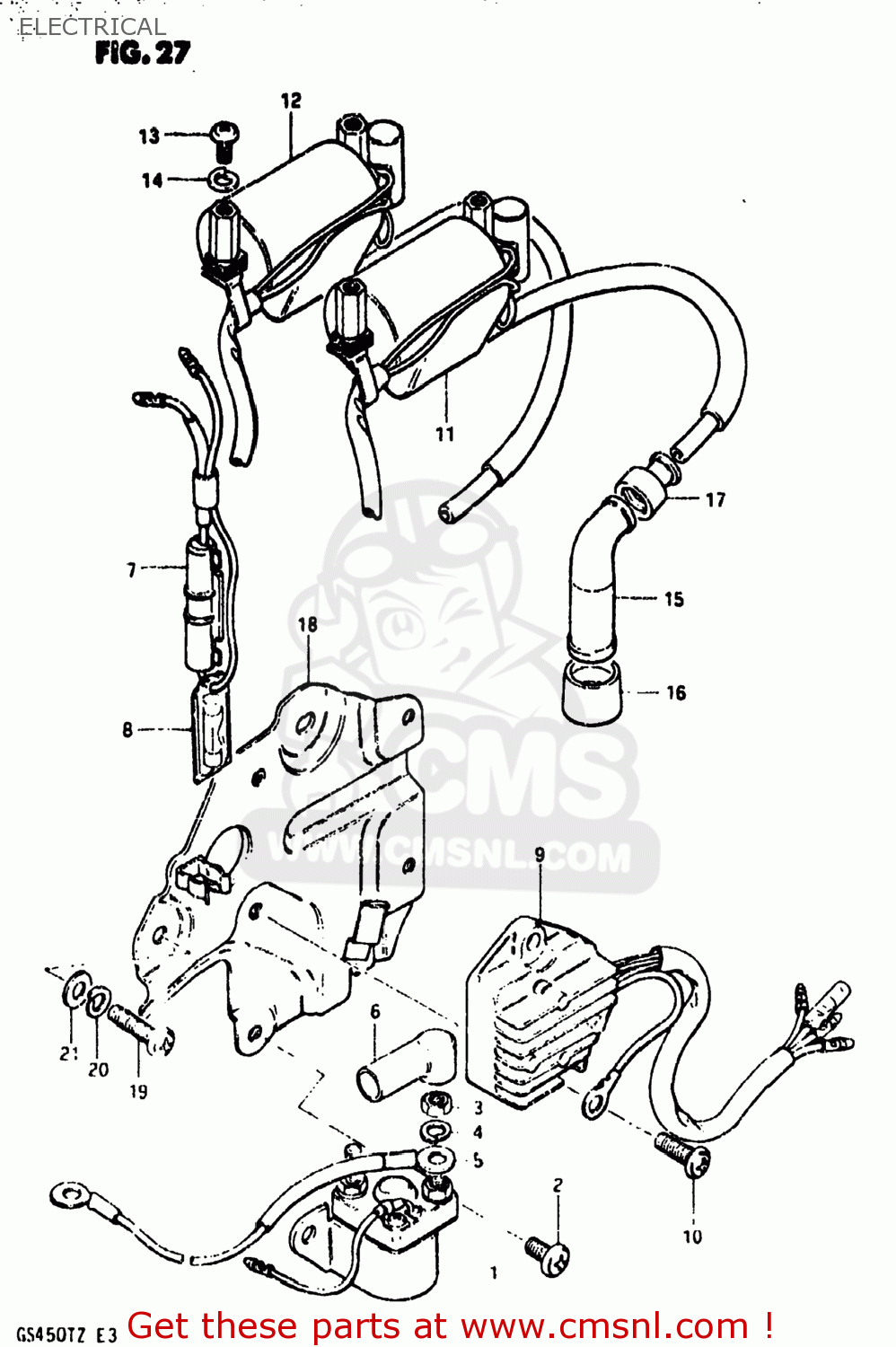

Electrical diagram GS450T 1982 (Z) USA (E03)
ELECTRICAL GS450T 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
€ 105.00
2
0211206088
ref: 2
02112-06087
SCREW
€ 2.00
3
0831022068
ref: 3
08310-00067
NUT 6MM
€ 2.50
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5
3385044110
ref: 5
33850-03201
CORD,BATTERY MINUS
€ 8.50
6
3186135100
ref: 6
31861-48B10
CAP,STARTER RELAY
€ 4.50
7
3674015010
ref: 7
36740-15011
BOX ASSEMBLY,FUSE
€ 11.00
8
0948115001
ref: 8
FUSE(15A)
€ 3.00
9
3280044120
ref: 9
32800-47121
RECTIFIER ASSEMBLY
€ 248.00
10
0211206168
ref: 10
02112-06167
SCREW
€ 2.50
11
3341044220
ref: 11
33410-44X50
COIL ASSEMBLY,IGNITION
€ 146.50
12
3342044220
ref: 12
33410-44X50
COIL ASSEMBLY,IGNITION
€ 146.50
13
0211205108
ref: 13
02112-05107
SCREW
€ 2.00
14
0832121058
ref: 14
08321-0105A
LOCK WASHER
€ 2.00
15
3351043010
ref: 15
CAP,SPARK PLUG
€ 11.50
16
3354169010
ref: 16
SEAL,SPARK PLUG
€ 5.00
17
3354298000
ref: 17
33542-38B00
SEAL,SPARK PLU
€ 4.50
18
4741044101
ref: 18
PLATE,ELECTRIC PARTS H
€ 0.00
19
0211206208
ref: 19
02112-06207
SCREW
€ 2.00
20
0832121068
ref: 20
08321-01067
LOCK WASHER
€ 2.50
21
0832221068
ref: 21
08322-01067
WASHER
€ 2.00
