FRAME

GS500E 1989 (K) (E01 E02 E04 E15 E16 E17 E21 E22 E24 E25 E34 E39

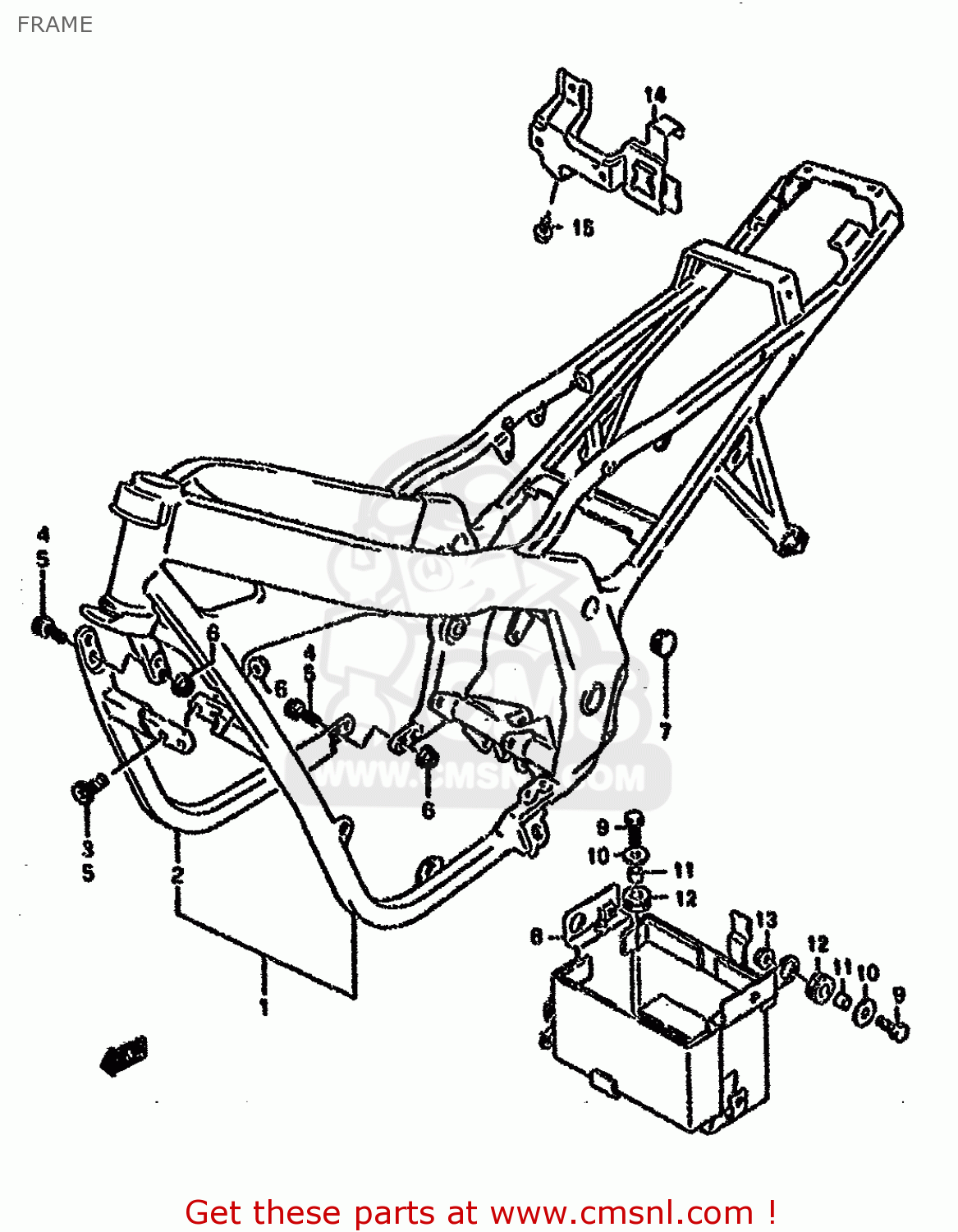

Frame diagram GS500E 1989 (K) (E01 E02 E04 E15 E16 E17 E21 E22 E24 E25 E34 E39

FRAME GS500E 1989 (K) (E01 E02 E04 E15 E16 E17 E21 E22 E24 E25 E34 E39
FRAME GS500E 1989 (K) (E01 E02 E04 E15 E16 E17 E21 E22 E24 E25 E34 E39
FRAME GS500E 1989 (K) (E01 E02 E04 E15 E16 E17 E21 E22 E24 E25 E34 E39
prices are in EUR
ref
part #
description
quantity
1-1
41102018200FP
ref: 1-1

MODEL K
FRAME
€ 1,061.50

1-2
41102018300FP
ref: 1-2

MODEL L
FRAME
€ 1,061.50

1-3
41102018400FP
ref: 1-3

MODEL M/N/P
FRAME
€ 1,061.50

1-4
411020185113L
ref: 1-4

MODEL R/S
FRAME
€ 1,223.50

1-5
41102018600FP
ref: 1-5

MODEL N/P E18,E39
FRAME SET
€ 1,061.50

1-6
411020187013L
ref: 1-6

MODEL R/S E18,E39
FRAME
€ 1,223.50

2
411020187117U
ref: 2

MODEL T
FRAME SET(GRAY)
€ 1,027.00

3
0713010357
ref: 3

MODEL K/L
BOLT
€ 4.00

4
0713010307
ref: 4

MODEL K/L
BOLT
€ 3.50

5-1
0153710358
ref: 5-1

MODEL M/N/P/R
BOLT
€ 3.50

5-2
0155010357
ref: 5-2

MODEL S/T
BOLT
€ 3.50

6
0831931107
ref: 6
NUT
€ 2.00

7
4358501D00
ref: 7
CAP,BODY FRAME
€ 5.00

8-1
4154001D00
ref: 8-1

MODEL K
HOLDER,BATTERY
€ 33.00

8-2
4154001D31
ref: 8-2

MODEL L/M/N/P/R/S/T
HOLDER,BATTERY
€ 70.00

9-1
0150006163
ref: 9-1

MODEL K/L/M/N/P/R/S
BOLT
€ 1.50

9-2
0911606167
ref: 9-2

MODEL T
BOLT(6X20)
€ 1.50

10
0916006059
ref: 10

MODEL K/L/M/N/P/R/S
WASHER,COVER,FRONT
€ 1.00

11-1
0918006103
ref: 11-1

MODEL K/L/M/N/P/R
SPACER(6.2X9X7.5)
€ 1.50

11-2
0918006038
ref: 11-2

MODEL S/T
SPACER(6.1X9X7.5)
€ 1.00

12
0932008021
ref: 12
CUSHION
€ 2.00

13-1
0915906017
ref: 13-1

MODEL K/L/M/N/P
NUT
€ 1.50

13-2
0831610063
ref: 13-2

MODEL R/S/T
NUT
€ 1.50

14
4741001D00
ref: 14
HOLDER,ELECTRIC PARTS
€ 12.00

15-1
0155006167
ref: 15-1

MODEL K/L/M/N/P
BOLT
€ 1.50

15-2
0155006163
ref: 15-2

MODEL R/S/T
BOLT
€ 1.50
