FRAME COVER (MODEL K/L/M)

GS500E 1996 (T) USA (E03)

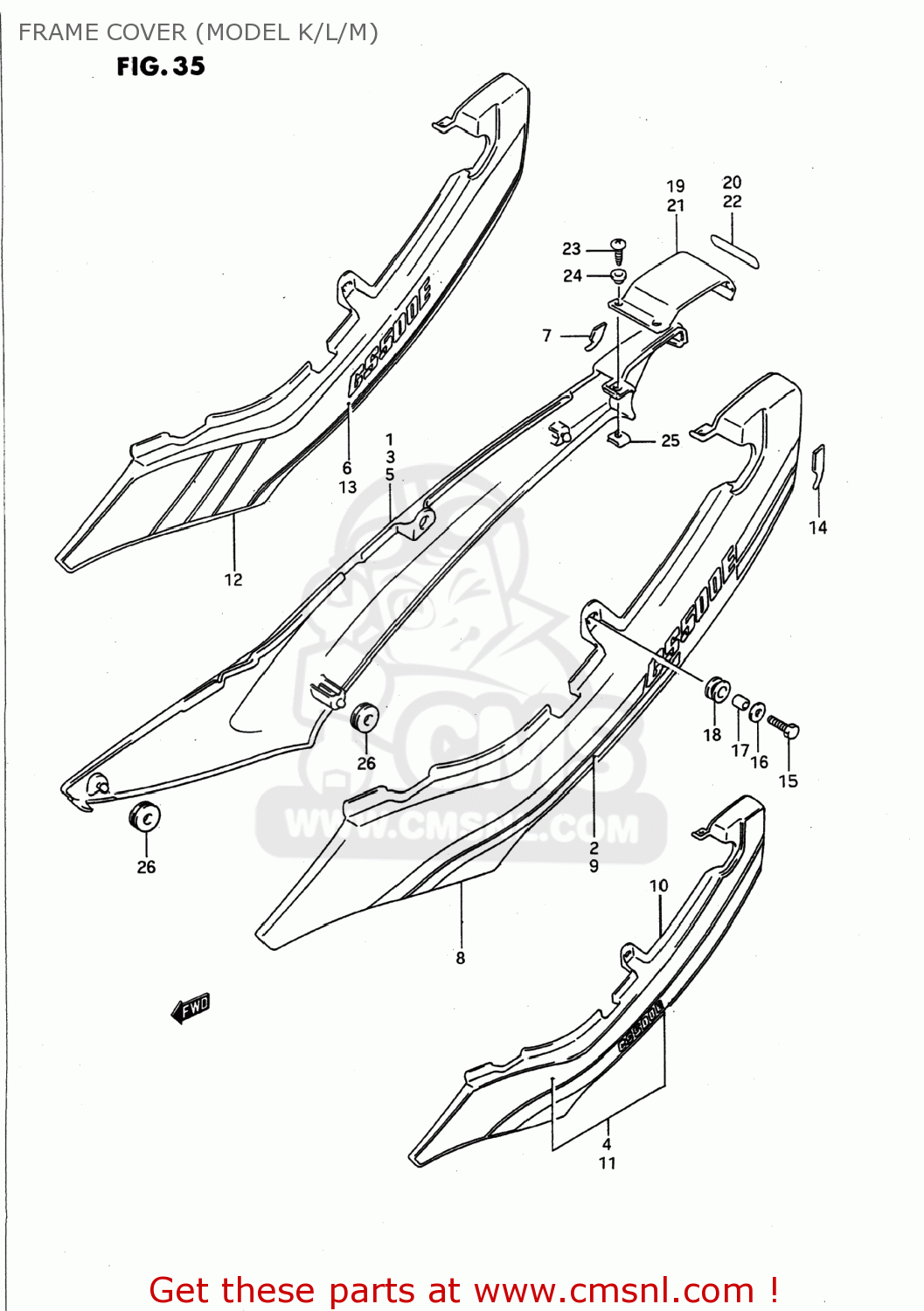

Frame cover (model k/l/m) diagram GS500E 1996 (T) USA (E03)

FRAME COVER (MODEL K/L/M) GS500E 1996 (T) USA (E03)
FRAME COVER (MODEL K/L/M) GS500E 1996 (T) USA (E03)
FRAME COVER (MODEL K/L/M) GS500E 1996 (T) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4711001D1022R
ref: 1-1
47111-01D00
COVER,FRAME,RIGHT
€ 123.50
1-2
4711001D1033J
ref: 1-2
47111-01D00
COVER,FRAME,RIGHT
€ 123.50
2-1
6813001D103HP
ref: 2-1
TAPE SET,FRAME COVER,RIGHT
€ 46.00
2-2
6813001D103HS
ref: 2-2
TAPE SET,FRAME COVER,RIGHT
€ 0.00
3-1
4711001D3028V
ref: 3-1
47111-01D00
COVER,FRAME,RIGHT
€ 123.50
3-2
4711001D3033J
ref: 3-2
47111-01D00
COVER,FRAME,RIGHT
€ 123.50
4-1
6813001D303YR
ref: 4-1
TAPE SET,FRAME COVER,RIGHT
€ 76.50
4-2
6813001D303WG
ref: 4-2
TAPE SET,FRAME COVER,RIGHT
€ 51.00
5-1
4711001D600FL
ref: 5-1
COVER COMP,FRAME,RIGHT
€ 238.00
5-2
4711001D600ZK
ref: 5-2
COVER COMP,FRAME,RIGHT
€ 220.50
5-3
4711001D6028V
ref: 5-3
47111-01D00
COVER,FRAME,RIGHT
€ 123.50
5-4
4711001D6033J
ref: 5-4
47111-01D00
COVER,FRAME,RIGHT
€ 123.50
6-1
6813001D51F95
ref: 6-1
TAPE SET,FRAME COVER,RIGHT
€ 48.00
6-2
6813001D51F96
ref: 6-2
TAPE SET,FRAME COVER,RIGHT
€ 61.50
6-3
6813001D51F93
ref: 6-3
TAPE SET,FRAME COVER,RIGHT
€ 44.50
6-4
6813001D51F94
ref: 6-4
TAPE SET,FRAME COVER,RIGHT
€ 48.50
7
4711901D00
ref: 7
PROTECTOR,FRAME COVER,R
€ 7.00
8-1
4721001D1022R
ref: 8-1
47211-01D00
COVER,FRAME,LEFT
€ 124.50
8-2
4721001D1033J
ref: 8-2
47211-01D00
COVER,FRAME,LEFT
€ 124.50
9-1
6814001D103HP
ref: 9-1
TAPE SET,FRAME COVER,LEFT
€ 30.00
9-2
6814001D103HS
ref: 9-2
TAPE SET,FRAME COVER,LEFT
€ 0.00
10-1
4721001D3028V
ref: 10-1
47211-01D00
COVER,FRAME,LEFT
€ 124.50
10-2
4721001D3033J
ref: 10-2
47211-01D00
COVER,FRAME,LEFT
€ 124.50
11-1
6814001D303YR
ref: 11-1
TAPE SET,FRAME COVER,LEFT
€ 73.50
11-2
6814001D303WG
ref: 11-2
TAPE SET,FRAME COVER,LEFT
6814001D303WG
€ 86.00
12-1
4721001D600FL
ref: 12-1
COVER COMP,FRAME,LEFT
€ 238.00
12-2
4721001D600ZK
ref: 12-2
COVER COMP,FRAME,LEFT
€ 220.50
12-3
4721001D6028V
ref: 12-3
47211-01D00
COVER,FRAME,LEFT
€ 124.50
12-4
4721001D6033J
ref: 12-4
47211-01D00
COVER,FRAME,LEFT
€ 124.50
13-1
6814001D51F95
ref: 13-1
TAPE SET,FRAME COVER,LEFT
€ 48.00
13-2
6814001D51F96
ref: 13-2
TAPE SET,FRAME COVER,LEFT
€ 59.50
13-3
6814001D51F93
ref: 13-3
TAPE SET,FRAME COVER,LEFT
€ 44.50
13-4
6814001D51F94
ref: 13-4
TAPE SET,FRAME COVER,LEFT
€ 0.00
14
4721901D00
ref: 14
PROTECTOR,FRAME COVER,L
4721901D00
€ 7.00
15
0912806006
ref: 15
09128-06057
BOLT(6X20)
0912806006
€ 2.00
16
0916006057
ref: 16
09160-06109
WASHER
€ 2.00
17
0918006011
ref: 17
09180-06263
SPACER (6.1X9X9)
0918006011
€ 2.00
18
0932009016
ref: 18
CUSHION
0932009016
€ 2.50
19-1
4731001D0022R
ref: 19-1
47215-01D00
COVER,FRAME,CENTER
€ 38.50
19-2
4731001D0028V
ref: 19-2
COVER,FRAME CTR
4731001D0028V
€ 38.50
19-3
4731001D0033J
ref: 19-3
47215-01D00
COVER,FRAME,CENTER
€ 38.50
19-4
4731001D0036X
ref: 19-4
COVER,FRAME CTR
€ 40.00
20-1
6816601D0033N
ref: 20-1
EMBLEM,FRAME COVER,CENTER
€ 3.50
20-2
6816601D00742
ref: 20-2
68166-01D00-0JW
EMBLEM
€ 6.00
20-3
6816601D00064
ref: 20-3
68166-01D00-0JW
EMBLEM
€ 6.00
21-1
4731001D200FL
ref: 21-1
47215-01D00
COVER,FRAME,CENTER
€ 38.50
21-2
4731001D200ZK
ref: 21-2
47215-01D00
COVER,FRAME,CENTER
€ 38.50
21-3
4731001D2028V
ref: 21-3
47215-01D00
COVER,FRAME,CENTER
€ 38.50
21-4
4731001D2033J
ref: 21-4
COVER,FRAME CTR
€ 37.50
22-1
6816601D0013L
ref: 22-1
68166-01D00-0JW
EMBLEM
€ 6.00
22-2
6816601D000FP
ref: 22-2
EMBLEM
€ 6.00
22-3
6816601D0022R
ref: 22-3
68166-01D00-0JW
EMBLEM
€ 6.00
23
0324105125
ref: 23
03241-0512A
SCREW
0324105125
€ 1.50
24
0916105017
ref: 24
WASHER(5.2X14X1.5)
0916105017
€ 3.00
25
0914805013
ref: 25
NUT
0914805013
€ 1.50
26
0932008018
ref: 26
CUSHION
0932008018
€ 4.00
