CARBURETOR (MODEL T)
GS500ESK 1996 (T) BRAZIL (E37)

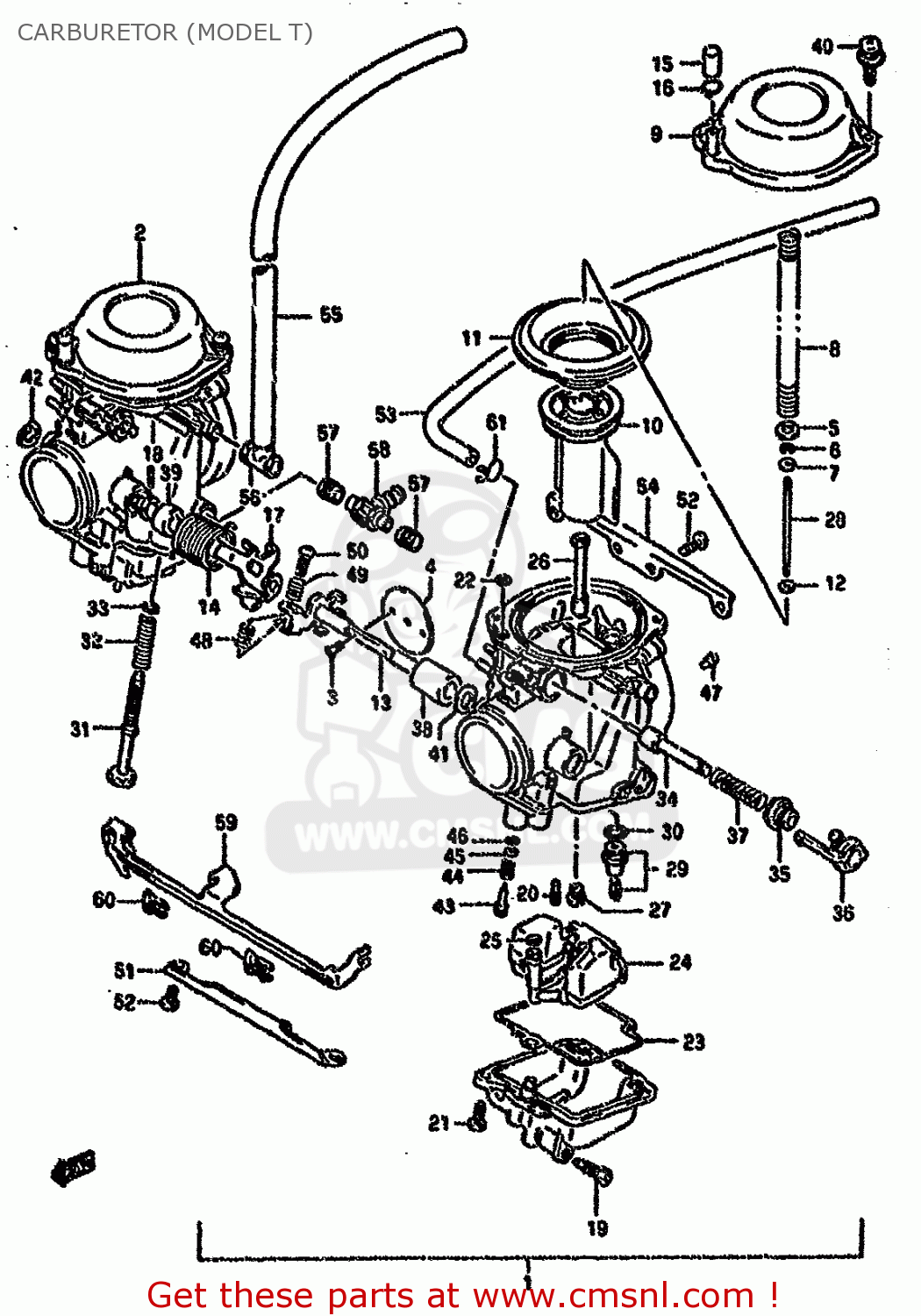

Carburetor (model t) diagram GS500ESK 1996 (T) BRAZIL (E37)
CARBURETOR (MODEL T) GS500ESK 1996 (T) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1-1
1320102D80
ref: 1-1
CARBURETOR,LH
€ 502.00
1-2
1320102D10
ref: 1-2
E18
CARBURETOR ASSY, LH
€ 0.00
1-3
1320102DA0
ref: 1-3
GS500ET E22
CARBURETOR ASSY, LH
€ 0.00
1-4
1320102DB0
ref: 1-4
GS500EUT E22
CARBURETOR ASSY, LH
€ 410.50
1-5
1320102D60
ref: 1-5
E24
CARBURETOR ASSY, LH
€ 399.00
1-6
1320102D70
ref: 1-6
E37
CARBURETOR ASSY, LH
€ 0.00
1-7
1320102D20
ref: 1-7
E39
CARBURETOR ASSY, LH
€ 0.00
2-1
1320202D80
ref: 2-1
CARBURETOR ASSY, RH
€ 399.00
2-2
1320202D10
ref: 2-2
E18
CARBURETOR ASSY, RH
€ 360.50
2-3
1320202DA0
ref: 2-3
GS500ET E22
CARBURETOR ASSY, RH
€ 399.00
2-4
1320202DB0
ref: 2-4
GS500EUT E22
CARBURETOR ASSY, RH
€ 399.00
2-5
1320202D60
ref: 2-5
E24
CARBURATOR ASS
€ 437.50
2-6
1320202D70
ref: 2-6
E37
CARBURETOR ASSY, RH
€ 0.00
2-7
1320202D20
ref: 2-7
E39
CARBURETOR ASSY, RH
€ 0.00
3
1360444080
ref: 3
SCREW
€ 3.50
4-1
1355101D00
ref: 4-1
VALVE,THROTTLE(120)
€ 35.50
4-2
1355102D00
ref: 4-2
E18,E39
VALVE,THROTTLE (125)
€ 0.00
5-1
1338242A00
ref: 5-1
RING
€ 3.50
5-2
1338244030
ref: 5-2
GS500EUT:E22
WASHER
€ 3.50
6
1339440D20
ref: 6
E RING
€ 4.50
7
1338244030
ref: 7
GS500EUT:E22
WASHER
€ 3.50
8-1
1341706C00
ref: 8-1
SPRING
€ 8.00
8-2
1341742A00
ref: 8-2
GS500EUT:E22
SPRING
€ 6.00
9-1
1350201D00
ref: 9-1
COVER,DIAPHRAGM
€ 36.00
9-2
1350245B10
ref: 9-2
E18
COVER,DIAPHRAGM
€ 29.00
9-3
1350202D00
ref: 9-3
E39
COVER,DIAPHRAGM
€ 0.00
10-1
1350101D00
ref: 10-1
VALVE,PISTON
€ 69.00
10-2
1350102D10
ref: 10-2
GS500EUT E22
VALVE,PISTON
€ 51.50
11-1
1350717C01
ref: 11-1
DIAPHRAGM
€ 24.50
11-2
1350744B00
ref: 11-2
E18,E39
DIAPHRAGM
€ 29.00
12
1338747010
ref: 12
RING
€ 7.50
13
1355001D00
ref: 13
LH
SHAFT ASSEMBLY
€ 0.00
14
1357344B00
ref: 14
RH
SPRING
€ 7.00
15-1
1350817C00
ref: 15-1
CAP
€ 4.50
15-2
1350817C00
ref: 15-2
E18,E39
CAP
€ 4.50
16-1
1367105A40
ref: 16-1
CLIP
€ 4.00
16-2
1367105A40
ref: 16-2
E18,E39
CLIP
€ 4.00
17
1355001D10
ref: 17
RH
SHAFT ASSEMBLY
€ 0.00
18
1355644B00
ref: 18
LH:1,RH:2
SEAL
€ 3.50
19
1324713A00
ref: 19
SCREW,DRAIN
€ 5.50
20
0949240014
ref: 20
JET(40)
€ 8.50
21
0211205127
ref: 21
SCREW
€ 2.50
22
1350917C00
ref: 22
O RING
€ 4.50
23
1325844B00
ref: 23
GASKET,FLOAT CHAMBER (NAS)
€ 8.50
24
1324001D00
ref: 24
FLOAT ASSY
€ 48.50
25
1337446710
ref: 25
O RING
€ 4.50
26-1
0949400748
ref: 26-1
JET,NEEDLE(O-2)
€ 27.00
26-2
0949400748
ref: 26-2
E18,E39
JET,NEEDLE(O-2)
€ 27.00
27-1
0949123011
ref: 27-1
JET,MAIN(115)
€ 10.50
27-2
0949125010
ref: 27-2
E24,E37
JET,MAIN(125)
€ 8.50
27-3
0949124013
ref: 27-3
E24,E37
JET,MAIN(122.5)
€ 7.00
27-4
0949123017
ref: 27-4
GS500EUT:E22
JET,MAIN(117.5)
€ 11.00
27-5
0949124016
ref: 27-5
E18
JET,MAIN(120)
€ 11.50
27-6
0949125010
ref: 27-6
E39
JET,MAIN(125)
€ 8.50
27-7
0949123011
ref: 27-7
E18,E39
JET,MAIN(115)
€ 10.50
28-1
1338301D10
ref: 28-1
NEEDLE,JET
€ 17.00
28-2
1338301D10
ref: 28-2
GS500EUT E22
NEEDLE,JET
€ 17.00
29-1
1337044B00
ref: 29-1
VALVE ASSEMBLY,NEEDLE
€ 46.50
29-2
1337002D00
ref: 29-2
E37
VALVE ASSY,NEEDLE
€ 46.50
30
1337444080
ref: 30
O-RING,NEEDLE VALVE
€ 6.00
31
1326714D10
ref: 31
RH
SCREW,ADJUSTER
€ 22.50
32
1337514D10
ref: 32
RH
SPRING
€ 6.50
33
1342738300
ref: 33
RH
WASHER
€ 1.50
34
1341101D00
ref: 34
PLUNGER ASSY
€ 28.50
35
1341817C00
ref: 35
CAP,STARTER
€ 5.00
36
1341817C10
ref: 36
HOLDER,GUIDE
€ 14.00
37
1341709110
ref: 37
SPRING
€ 6.00
38
1357401D00
ref: 38
LH
RING
€ 0.00
39
1357428A00
ref: 39
RH
RING
€ 4.50
40
0211275163
ref: 40
SCREW
€ 2.50
41
1355747070
ref: 41
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
42
1361744080
ref: 42
RH
E RING
€ 3.50
43-1
1327947070
ref: 43-1
EXCEPT E18
SCREW,PILOT
€ 11.50
43-2
1327947070
ref: 43-2
E24
SCREW,PILOT
€ 11.50
43-3
1327947070
ref: 43-3
E37
SCREW,PILOT
€ 11.50
43-4
1327947070
ref: 43-4
E39
SCREW,PILOT
€ 11.50
44
1326847070
ref: 44
EXCEPT E18
SPRING
€ 5.00
45
1329129900
ref: 45
EXCEPT E18
WASHER
€ 2.00
46
1329529900
ref: 46
EXCEPT E18
O RING,PILOT AIR SCREW
€ 4.00
47-1
0949326004
ref: 47-1
JET,AIR(1.3)
€ 14.50
47-2
0949324007
ref: 47-2
E24,E37
JET,AIR(1.2)
€ 13.50
47-3
0949328007
ref: 47-3
E39
JET,AIR
€ 15.50
48
1326896110
ref: 48
SPRING,THROTTLE SCREW
€ 4.50
49
1327144B00
ref: 49
SPRING
€ 4.00
50
1326744B00
ref: 50
SCREW
€ 3.50
51
1362801D00
ref: 51
PLATE
€ 14.00
52
0211205127
ref: 52
SCREW
€ 2.50
53
1368401D10
ref: 53
HOSE(5X9X350)
€ 21.00
54
1362801D10
ref: 54
PLATE
€ 0.00
55
0935470113600
ref: 55
L:600-400
HOSE(7X11X600)
€ 17.50
56
1368420C10
ref: 56
HOSE
€ 7.00
57
1367344B00
ref: 57
SEAL
€ 6.00
58
1368544B00
ref: 58
NIPPLE
€ 10.00
59
1341301D00
ref: 59
LEVER
€ 16.00
60
1343917C00
ref: 60
HOLDER
€ 12.00
61
0940108410
ref: 61
CLIP
