TRANSMISSION
GS500ESK 1996 (T) BRAZIL (E37)

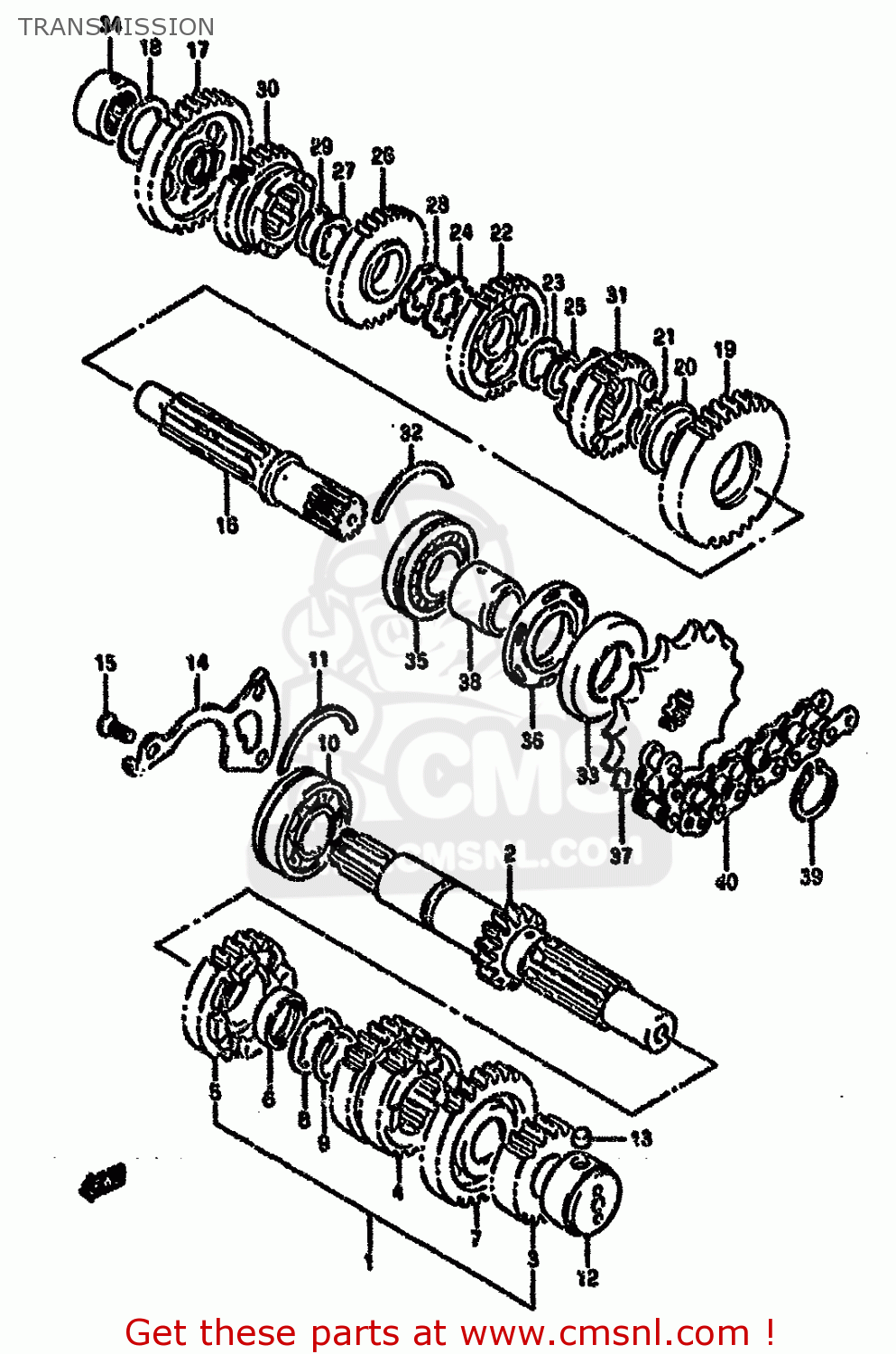

Transmission diagram GS500ESK 1996 (T) BRAZIL (E37)
TRANSMISSION GS500ESK 1996 (T) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1
2412001D00
ref: 1
SHAFT COMP,COUNTER
€ 253.00
2
2412101D00
ref: 2
SHAFT,COUNTER (NT:13)
€ 234.00
3
2422144001
ref: 3
GEAR,2ND DRIVE(NT:18)
€ 83.00
4
2423101D00
ref: 4
GEAR,THIRD DRIVE (NT:21/2
€ 91.50
5
2425101D00
ref: 5
GEAR,FIFTH DRIVE (NT:26)
€ 78.50
6
0930025023
ref: 6
BUSHING 25X29X10
€ 9.50
7
2426001D00
ref: 7
GEAR,SIXTH DRIVE (NT:27)
€ 95.50
8
0821125341
ref: 8
WASHER
€ 3.50
9
0938025010
ref: 9
CIRCLIP
€ 3.00
10
0926225105
ref: 10
BEARING(25X62X17)
€ 59.50
11-1
0939062006
ref: 11-1
MODEL K/L/M/N/P/R/S
C-RING
€ 5.00
11-2
0939062012
ref: 11-2
MODEL T
C RING
€ 5.00
12
0926320026
ref: 12
ROLLER BEARING (20X34X2
€ 37.00
13
0422107129
ref: 13
PIN
€ 1.50
14
2474144102
ref: 14
PLATE,COUNTERSHAFT BEARING
€ 10.50
15
0212206163
ref: 15
SCREW ,6X16
€ 2.00
16
2413101D00
ref: 16
SHAFT,DRIVE
€ 207.00
17
2431044000
ref: 17
GEAR,FIRST DRIVEN
€ 98.50
18
0821120341
ref: 18
WASHER
€ 2.00
19
2432144004
ref: 19
GEAR,SECOND DRIVEN
€ 98.50
20
0930125001
ref: 20
BUSHING
€ 12.50
21
0938025010
ref: 21
CIRCLIP
€ 3.00
22
2433144002
ref: 22
GEAR,THIRD DRIVEN
€ 89.50
23
0916725012
ref: 23
WASHER,LOCK
€ 3.50
24
0916725013
ref: 24
WASHER,LOCK
€ 2.50
25
0938025010
ref: 25
CIRCLIP
€ 3.00
26
2434144002
ref: 26
GEAR,FOURTH DRIVEN
€ 82.50
27
0916725012
ref: 27
WASHER,LOCK
€ 3.50
28
0916925001
ref: 28
WASHER
€ 2.00
29
0938025010
ref: 29
CIRCLIP
€ 3.00
30
2435144001
ref: 30
GEAR,5TH DRIVEN(NT:25)
€ 108.00
31
2436144002
ref: 31
GEAR,SIXTH DRIVEN
€ 121.00
32-1
0939062006
ref: 32-1
MODEL K/L/M/N/P/R/S
C-RING
€ 5.00
32-2
0939062012
ref: 32-2
MODEL T
C RING
€ 5.00
33
0928332015
ref: 33
SEAL,OIL(32X62X7)
€ 15.50
34
0926320028
ref: 34
ROLLER BEARING (20X34X1
€ 34.00
35
0926225105
ref: 35
BEARING(25X62X17)
€ 59.50
36
0928232002
ref: 36
SEAL,OIL(32X62X5.5)
€ 11.50
37-1
2751101D00
ref: 37-1
MODEL K/L/M/N/P
SPROCKET,ENGINE
€ 19.50
37-2
2751101D01
ref: 37-2
MODEL R/S/T
SPROCKET,ENGINE(16T)
€ 27.50
38-1
2753101D00
ref: 38-1
MODEL K/L/M/N/P
SPACER,ENGINE SPROCKET
€ 19.50
38-2
2753101D10
ref: 38-2
MODEL R/S/T
SPACER,ENGINE SPROCKET
€ 20.00
39
0833131256
ref: 39
CIRCLIP
€ 2.00
40
2760001C10110
ref: 40
-27600-01D00-110
CHAIN(DID520VM,110L)
€ 134.50
