REAR COMBINATION LAMP (MODEL T)

GS500EU 1991 (M) GERMANY (E22)

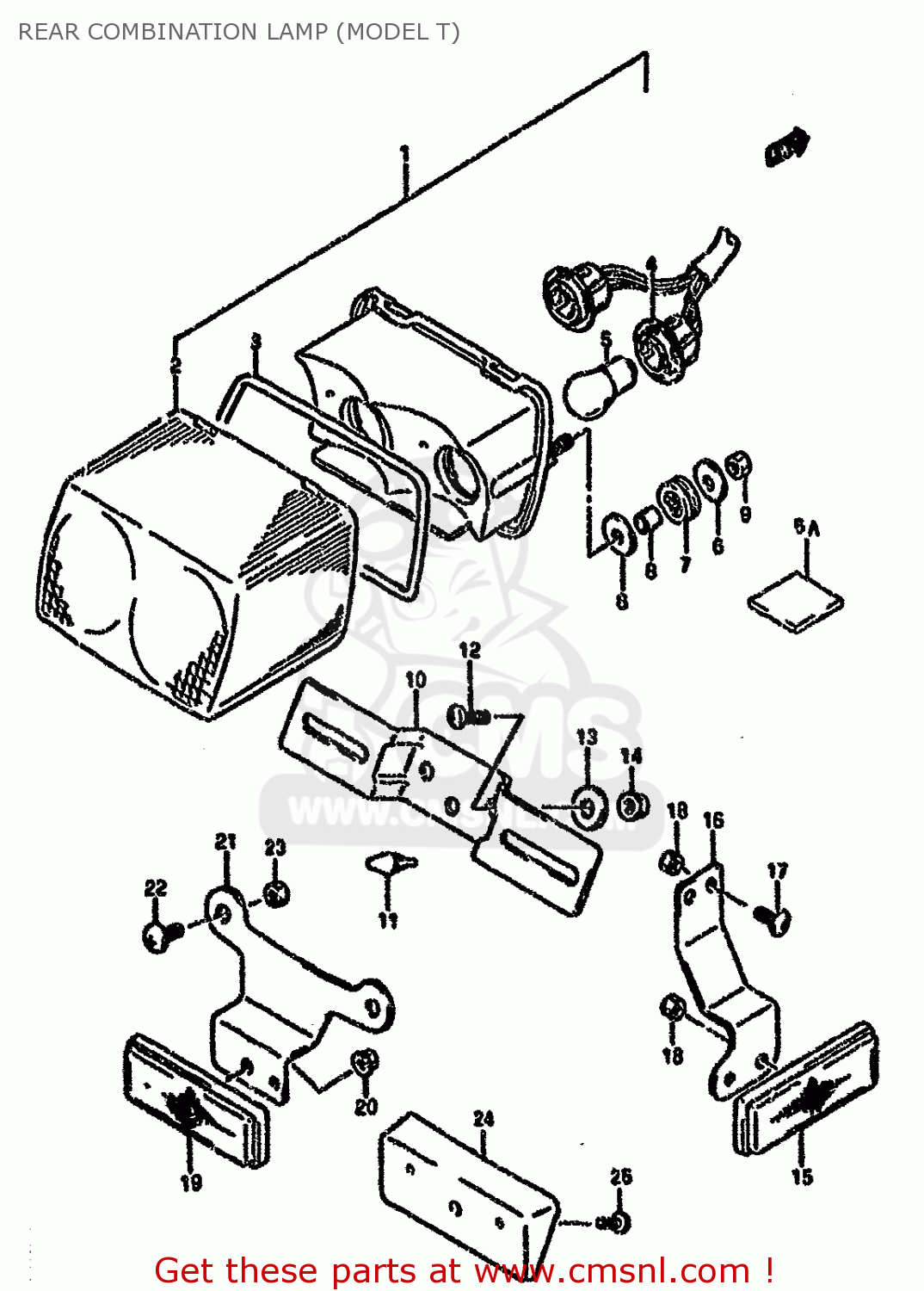

Rear combination lamp (model t) diagram GS500EU 1991 (M) GERMANY (E22)

REAR COMBINATION LAMP (MODEL T) GS500EU 1991 (M) GERMANY (E22)
REAR COMBINATION LAMP (MODEL T) GS500EU 1991 (M) GERMANY (E22)
REAR COMBINATION LAMP (MODEL T) GS500EU 1991 (M) GERMANY (E22)
prices are in EUR
ref
part #
description
quantity
1
3571001D01
ref: 1
LAMP ASSY,RR C
€ 134.50
2
3571201D00
ref: 2
LENS
3571201D00
€ 45.00
3
3571301D00
ref: 3
GASKET (NAS)
3571301D00
€ 7.00
4
3571801D00
ref: 4
SOCKET
€ 40.00
5
0947112083
ref: 5
BULB(12V21/5W)
0947112083
€ 6.00
5A
3573310D00
ref: 5A
CUSHION,REAR LENS
€ 3.00
6
0916006077
ref: 6
WASHER(6.5X20X1.2)
0916006077
€ 2.00
7
0932009009
ref: 7
CUSHION
0932009009
€ 5.00
8
0918006152
ref: 8
SPACER
0918006152
€ 3.00
9
0831000063
ref: 9
NUT 6MM
0831000063
€ 2.00
10
3592700A10
ref: 10
BRACKET,LICENSE PLATE
3592700A10
€ 6.00
11
0932106029
ref: 11
CUSHION
€ 3.00
12
0214206163
ref: 12
SCREW
0214206163
€ 2.50
13
0916006077
ref: 13
WASHER(6.5X20X1.2)
0916006077
€ 2.00
14
0831000063
ref: 14
NUT 6MM
0831000063
€ 2.00
15
3595043431
ref: 15
E39
REFLEX REFLECTOR,FR SIDE
3595043431
€ 12.00
16
3597701D11
ref: 16
E39
BRACKET,RR SIDE REFLECTOR
3597701D11
€ 5.50
17
0214205123
ref: 17
E39
SCREW 5X12
0214205123
€ 1.50
18
0831000053
ref: 18
E39
NUT
€ 2.50
19
3597024D60
ref: 19
REFLECTOR ASSY,RR
3597024D60
€ 19.50
20-1
0831000053
ref: 20-1
NUT
€ 2.50
20-2
0831610053
ref: 20-2
E18,E22,E25,E39
NUT
0831610053
€ 2.50
21
3597401D00
ref: 21
BRACKET,RR RR
3597401D00
€ 3.50
22
0214206123
ref: 22
SCREW 6X12
0214206123
€ 2.00
23
0831000063
ref: 23
NUT 6MM
0831000063
€ 2.00
24
3597712C00
ref: 24
E18,E22,E25,E39
SPACER,RR RR
3597712C00
€ 8.00
25
0354104123
ref: 25
SCREW
0354104123
€ 1.50
16-3
3597701D11
ref: 16-3
MODEL R/S E39
BRACKET,RR SIDE REFLECTOR
3597701D11
€ 5.50
17-1
0214205124
ref: 17-1
MODEL K/L/M/N/P E39
SCREW, FRONT & REAR
€ 1.50
17-2
0214205123
ref: 17-2
MODEL R/S E39
SCREW 5X12
0214205123
€ 1.50
18-1
0831626055
ref: 18-1
MODEL K/L/M/N/P E39
NUT
0831626055
€ 2.00
18-2
0831000053
ref: 18-2
MODEL R/S E39
NUT
€ 2.50
19-1
3597000A21
ref: 19-1
MODEL K/L/M/N/P/R
REFLECTOR ASSEMBLY,REAR
3597000A21
€ 22.00
19-2
3597024D60
ref: 19-2
MODEL S
REFLECTOR ASSY,RR
3597024D60
€ 19.50
19-3
3597024D60
ref: 19-3
MODEL P E24
REFLECTOR ASSY,RR
3597024D60
€ 19.50
20-1
0831626055
ref: 20-1
MODEL K/L/M/N
NUT
0831626055
€ 2.00
20-2
0831011056
ref: 20-2
MODEL P/R
NUT
€ 2.50
20-3
0831000053
ref: 20-3
MODEL S
NUT
€ 2.50
21
3597401D00
ref: 21
BRACKET,RR RR
3597401D00
€ 3.50
22-1
0214206125
ref: 22-1
MODEL K/L/M/N/P
SCREW 6X12
0214206125
€ 2.00
22-2
0214206123
ref: 22-2
MODEL R/S
SCREW 6X12
0214206123
€ 2.00
23
0832101063
ref: 23
LOCK WASHER
0832101063
€ 2.00
24-1
0831626065
ref: 24-1
MODEL K/L/M/N
NUT
0831626065
€ 2.00
24-2
0831012066
ref: 24-2
MODEL P/R
NUT
0831012066
€ 2.00
24-3
0831000063
ref: 24-3
MODEL S
NUT 6MM
0831000063
€ 2.00
25
0832121055
ref: 25
WASHER,LOCK
0832121055
€ 3.00
26
3597712C00
ref: 26
E15,E16,E17,E18,E22,
SPACER,RR RR
3597712C00
€ 8.00
27-1
0354104125
ref: 27-1
MODEL K/L/M/N/P
SCREW
0354104125
€ 1.50
27-2
0354104123
ref: 27-2
MODEL R/S
SCREW
0354104123
€ 1.50
28
0832221045
ref: 28
WASHER
€ 5.00
