REAR FENDER (MODEL T)

GS500EU 1991 (M) GERMANY (E22)

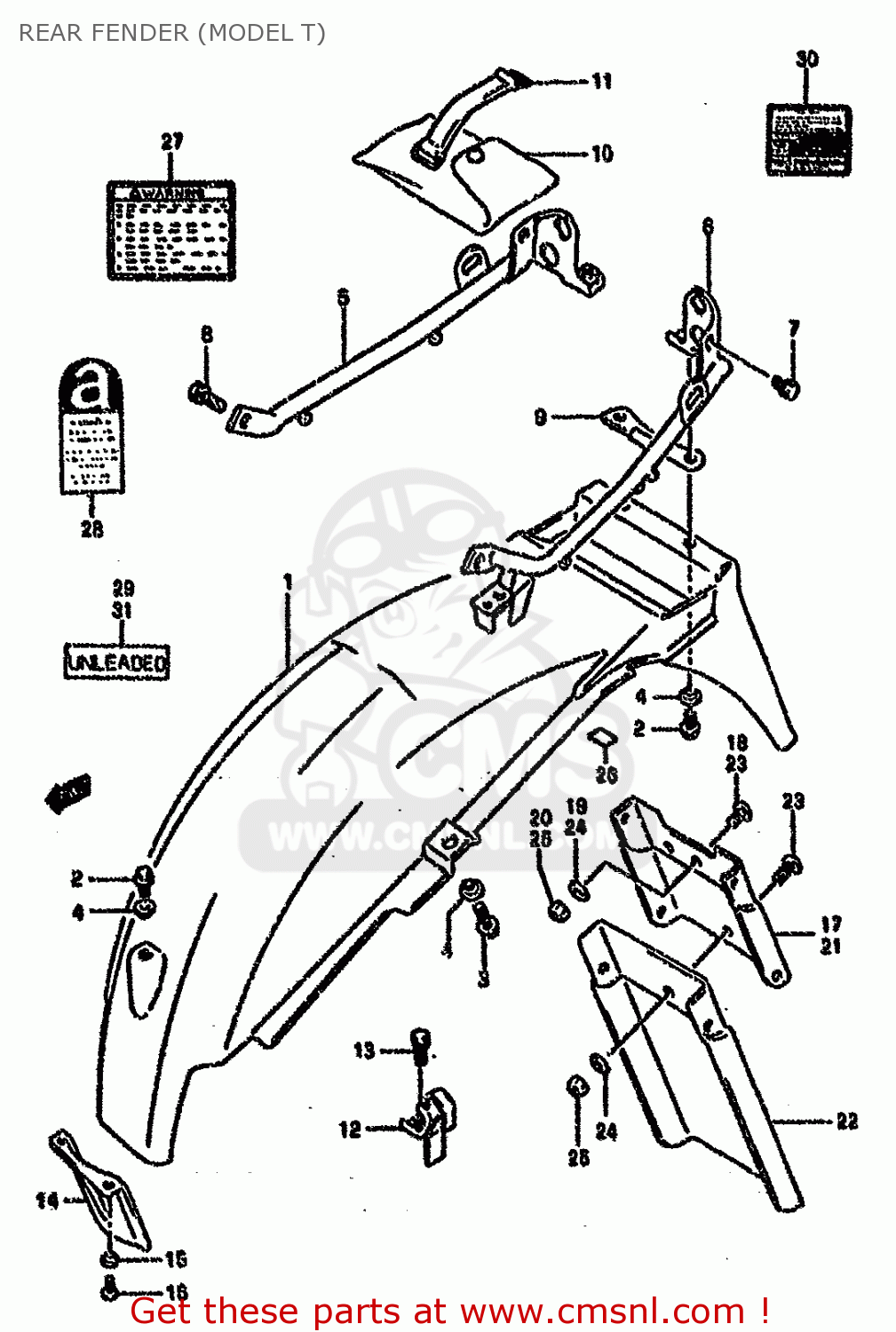

Rear fender (model t) diagram GS500EU 1991 (M) GERMANY (E22)

REAR FENDER (MODEL T) GS500EU 1991 (M) GERMANY (E22)
REAR FENDER (MODEL T) GS500EU 1991 (M) GERMANY (E22)
REAR FENDER (MODEL T) GS500EU 1991 (M) GERMANY (E22)
prices are in EUR
ref
part #
description
quantity
1-1
6311101D30
ref: 1-1
BODY,REAR FENDER
€ 20.50
1-2
6311101D20
ref: 1-2
E18,E22,E25
BODY,RR FENDER
€ 108.00
1-3
6311101D40
ref: 1-3
E39
BODY, REAR FENDER
€ 87.00
2
0155006123
ref: 2
BOLT
0155006123
€ 2.50
3
0155006163
ref: 3
BOLT
0155006163
€ 2.50
4
0916906037
ref: 4
WASHER
0916906037
€ 6.50
5
6321001D10
ref: 5
BRACE,RR FENDER,R
6321001D10
€ 73.50
6
6322001D10
ref: 6
BRACE,RR FENDER,L
6322001D10
€ 73.50
7
0155008123
ref: 7
BOLT
0155008123
€ 3.50
8
0155008203
ref: 8
BOLT
0155008203
€ 3.00
9
4742501D00
ref: 9
PLATE,TOOL HOLDER
4742501D00
€ 4.50
10
0980021017
ref: 10
TOOL ASSY
0980021017
€ 59.00
11
0946200046
ref: 11
BAND
0946200046
€ 4.50
12
9572001D00
ref: 12
HOLDER,HELMET
€ 7.00
13
0157006203
ref: 13
BOLT
0157006203
€ 2.50
14
6341142A00
ref: 14
GUARD,RR UNIT MUD
6341142A00
€ 3.50
15
0916906010
ref: 15
WASHER
0916906010
€ 3.00
16
0214206163
ref: 16
SCREW
0214206163
€ 2.50
17
6331112C00
ref: 17
E25
EXTENSION,RR FENDER
6331112C00
€ 19.50
18
0214206163
ref: 18
E25
SCREW
0214206163
€ 2.50
19
0916006019
ref: 19
E25
WASHER(6.5X16X1.2)
0916006019
€ 1.50
20
0831921066
ref: 20
E25
NUT
0831921066
€ 2.00
21
6331101D40
ref: 21
E22,E39
EXTENSION,RR FENDER
6331101D40
€ 18.00
22
6333148B12
ref: 22
E22,E39
MUDGUARD,RR FENDER
6333148B12
€ 31.00
23
0214206163
ref: 23
E22,E39
SCREW
0214206163
€ 2.50
24
0916006019
ref: 24
E22,E39
WASHER(6.5X16X1.2)
0916006019
€ 1.50
25
0831921066
ref: 25
E22,E39
NUT
0831921066
€ 2.00
26
6311506C00
ref: 26
TAPE,RR FENDER
6311506C00
€ 7.00
27-1
6831940C00
ref: 27-1
E2,E25
LABEL
6831940C00
€ 8.00
27-2
6831940C20
ref: 27-2
E22,E39
LABEL, WARNING SAFETY
€ 8.00
27-3
6831940C30
ref: 27-3
E4,E34
LABEL, WARNING SAFETY
€ 8.50
27-4
6831940C40
ref: 27-4
E34
LABEL, WARNING SAFETY
€ 8.00
27-5
6831933E70
ref: 27-5
E34
LABEL,WARNING
6831933E70
€ 5.50
27-6
6831940C51
ref: 27-6
E34,E37
LABEL
€ 8.00
28
1196782000
ref: 28
E2
LABEL,ASBESTOS WARNING
€ 2.00
29
6862317D00
ref: 29
E2
LABEL,CAUTION
6862317D00
€ 4.00
30-1
6833201D00
ref: 30-1
LABEL,TIRE AIR PRESSURE
6833201D00
€ 4.50
30-2
6833201D10
ref: 30-2
E4
LABEL, TIRE AIR PRESSURE
€ 0.00
31
8693273060
ref: 31
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
32
0982200005
ref: 32
CLAMP
0982200005
€ 22.00
33-1
9901101D5728B
ref: 33-1
MANUAL, OWNER'S
€ 0.00
33-2
9901101D57042
ref: 33-2
E22,E25,E34,E37,E39
O.M. GS500E T
€ 21.00
32-1
9901101D56028
ref: 32-1
E2,E4,E34,E37,P9
MANUAL,OWNER'S
€ 29.50
32-2
9901101D56022
ref: 32-2
E22,E25,E34,E39 DRAW
O.M. GS500E R,
9901101D56022
€ 12.50
25
0831921066
ref: 25
E15,E16,E18,E22,E39
NUT
0831921066
€ 2.00
26
6311506C00
ref: 26
MODEL M/N/P/R
TAPE,RR FENDER
6311506C00
€ 7.00
27-1
6831940C00
ref: 27-1
E1,E2,E17,E24,E25
LABEL
6831940C00
€ 8.00
27-2
6831940C20
ref: 27-2
E18,E22,E39
LABEL, WARNING SAFETY
€ 8.00
27-3
6831940C30
ref: 27-3
E4,E21
LABEL, WARNING SAFETY
€ 8.50
27-4
6831940C40
ref: 27-4
E34
LABEL, WARNING SAFETY
€ 8.00
27-5
6831940C51
ref: 27-5
E53,E37,P9
LABEL
€ 8.00
28
1196782000
ref: 28
E2
LABEL,ASBESTOS WARNING
€ 2.00
29-1
8693273060
ref: 29-1
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
29-2
6862317D00
ref: 29-2
E2
LABEL,CAUTION
6862317D00
€ 4.00
30-1
6833201D00
ref: 30-1
LABEL,TIRE AIR PRESSURE
6833201D00
€ 4.50
30-2
6833201D10
ref: 30-2
E4
LABEL, TIRE AIR PRESSURE
€ 0.00
31-1
9901101D50028
ref: 31-1
MODEL K
MANUAL,OWMER'S
€ 0.00
31-2
9901101D50022
ref: 31-2
MODEL K E4
O.M. GS500E K
€ 21.00
31-3
9901101D51028
ref: 31-3
MODEL L
MANUAL,OWNER'S
€ 0.00
31-4
9901101D51022
ref: 31-4
MODEL L E4
O.M. GS500E L
€ 21.00
31-5
9901101D52028
ref: 31-5
MODEL M
MANUAL,OWNER'S
€ 0.00
31-6
9901101D52022
ref: 31-6
MODEL M E4
O.M. GS500E M
9901101D52022
€ 12.50
31-7
9901101D53028
ref: 31-7
MODEL N
MANUAL,OWNER'S
€ 0.00
31-8
9901101D53022
ref: 31-8
MODEL N E4,E18,E39
O.M. GS500E N
9901101D53022
€ 12.50
31-9
9901101D54028
ref: 31-9
MODEL P
MANUAL,OWNER'S GS500E
9901101D54028
€ 25.50
31-10
9901101D54022
ref: 31-10
MODEL P E18,E39
O.M. GS500E P
9901101D54022
€ 12.50
31-11
9901101D55028
ref: 31-11
MODEL R
MANUAL,OWNER'S
9901101D55028
€ 14.50
31-12
9901101D55022
ref: 31-12
MODEL R E18,E39 DRAW
O.M. GS500E R
€ 21.00
