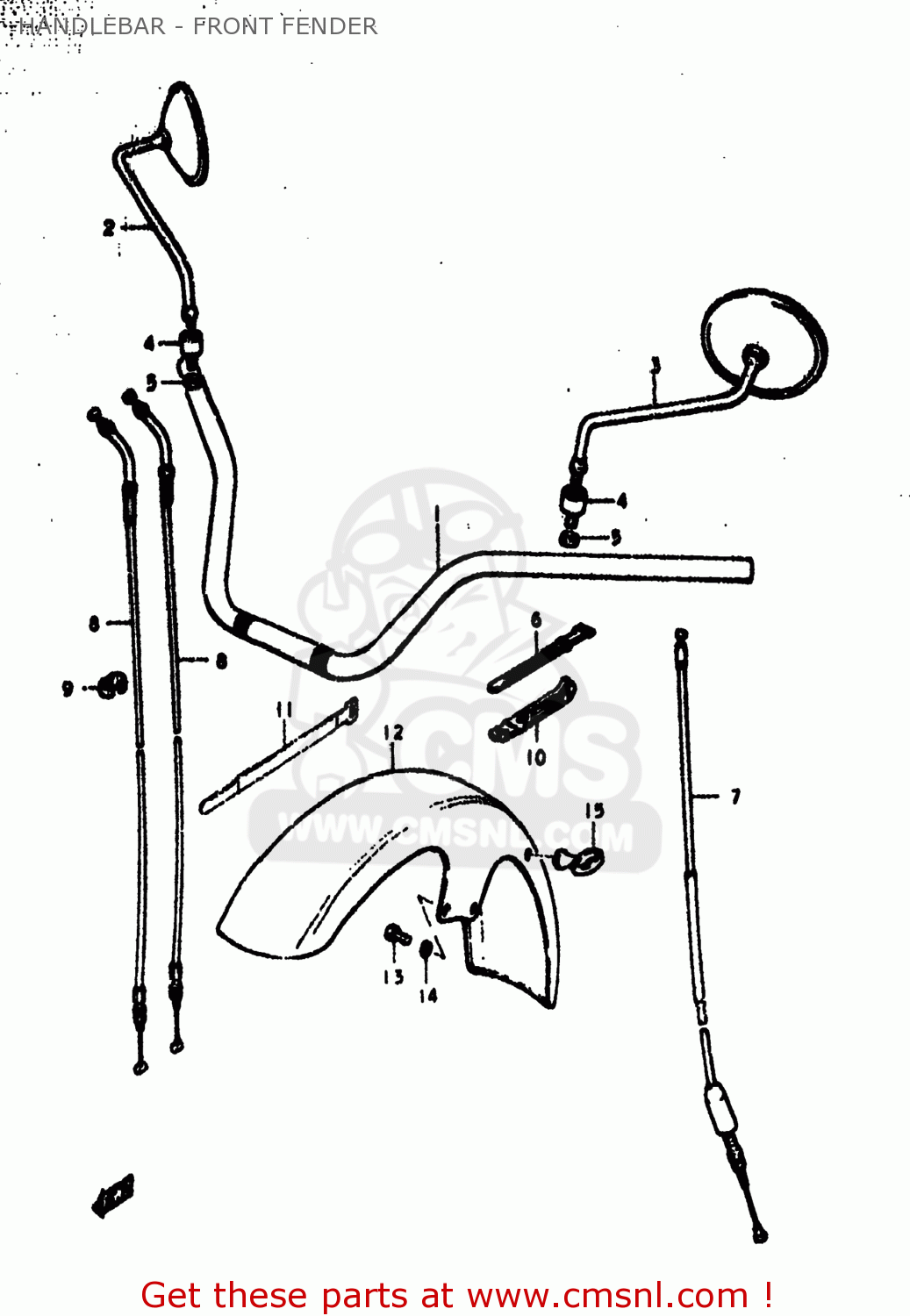

HANDLEBAR - FRONT FENDER - GS550 1978 (C) USA (E03)

ref

part #

description

quantity

1-1

5611147001
ref: 1-1
56111-47011

HANDLEBAR

€ 62.50

1-2

5611147010
ref: 1-2
56111-47011

HANDLEBAR

€ 62.50

1-3

5611147040
ref: 1-3

HANDLEBAR

€ 75.50

2

5650047010
ref: 2
56500-45013

MIRROR ASSEMBLY,REAR VIEW

€ 72.50

3

5660047010
ref: 3
56600-45013

MIRROR ASSEMBLY,REAR VIEW

€ 73.00

4

5670031001
ref: 4
56700-45400

CUSHION,REAR VIEW MIRROR

€ 18.00

5

0831022108
ref: 5
08310-00107

NUT

€ 2.50

6

0940712402
ref: 6

CLAMP(L:120)

€ 3.00

6

0940712402
ref: 6

CLAMP(L:120)

€ 3.00

7

5820047000
ref: 7

CABLE ASSY,CLUTCH

€ 27.50

8-1

5830047001
ref: 8-1

CABLE ASSY,THROTTLE

€ 29.00

8-2

5830047010
ref: 8-2
58300-47X00

CABLE ASSEMBLY,THROTTLE

€ 43.50

9

0940800002
ref: 9

CLIP

€ 2.00

10

0940406403
ref: 10
09404-06432

CLAMP

€ 2.50

11

0940718301
ref: 11

CLAMP

€ 6.00

12-1

5311045001
ref: 12-1
53110-45602

FENDER,FRONT

€ 335.50

12-2

5311045002
ref: 12-2
53110-45602

FENDER,FR

€ 335.50

13

0110708168
ref: 13
01500-0816B

BOLT

€ 2.00

14

0832121088
ref: 14
08321-01087

LOCK WASHER

€ 2.00

15-1

5862121202
ref: 15-1
58621-21204

GUIDE,CABLE

€ 7.50

15-2

5862121203
ref: 15-2
58621-21204

GUIDE,CABLE

€ 7.50

HANDLEBAR - FRONT FENDER

all assemblies
