STARTER CLUTCH
GS550 1978 (C) USA (E03)

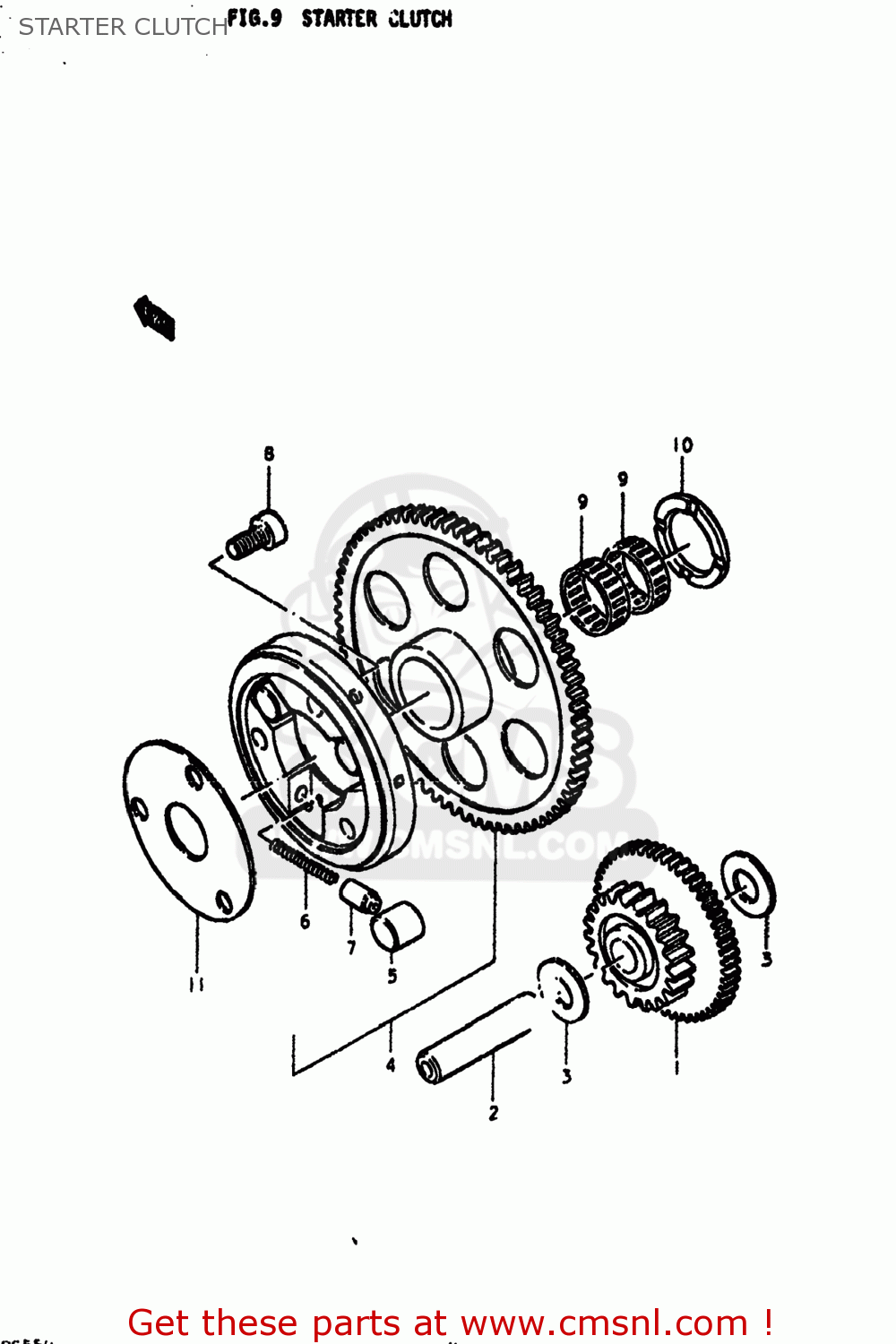

Starter clutch diagram GS550 1978 (C) USA (E03)
STARTER CLUTCH GS550 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1261147000
ref: 1
GEAR,STARTER IDLE
€ 64.50
2
0920613003
ref: 2
PIN(7.4X13X56)
€ 9.00
3
0916013003
ref: 3
WASHER(13.3X25X0.85)
€ 2.50
4
1260047811
ref: 4
12600-47812
CLUTCH SET,STARTER
€ 148.00
5
0926115001
ref: 5
ROLLER(15X13)
€ 3.50
6
0944004015
ref: 6
SPRING
€ 2.50
7
1263331000
ref: 7
PIECE,PUSH
€ 9.00
8
0910608006
ref: 8
07130-0816A
BOLT
€ 3.00
9
0926325022
ref: 9
09263-25030
BEARING
€ 15.00
10
0916025019
ref: 10
WASHER(25X38X2.5)
€ 10.00
11
1264945000
ref: 11
SHIM,STARTER CLUTCH HUB
€ 7.00
