CRANKCASE
GS550E 1978 (C) USA (E03)

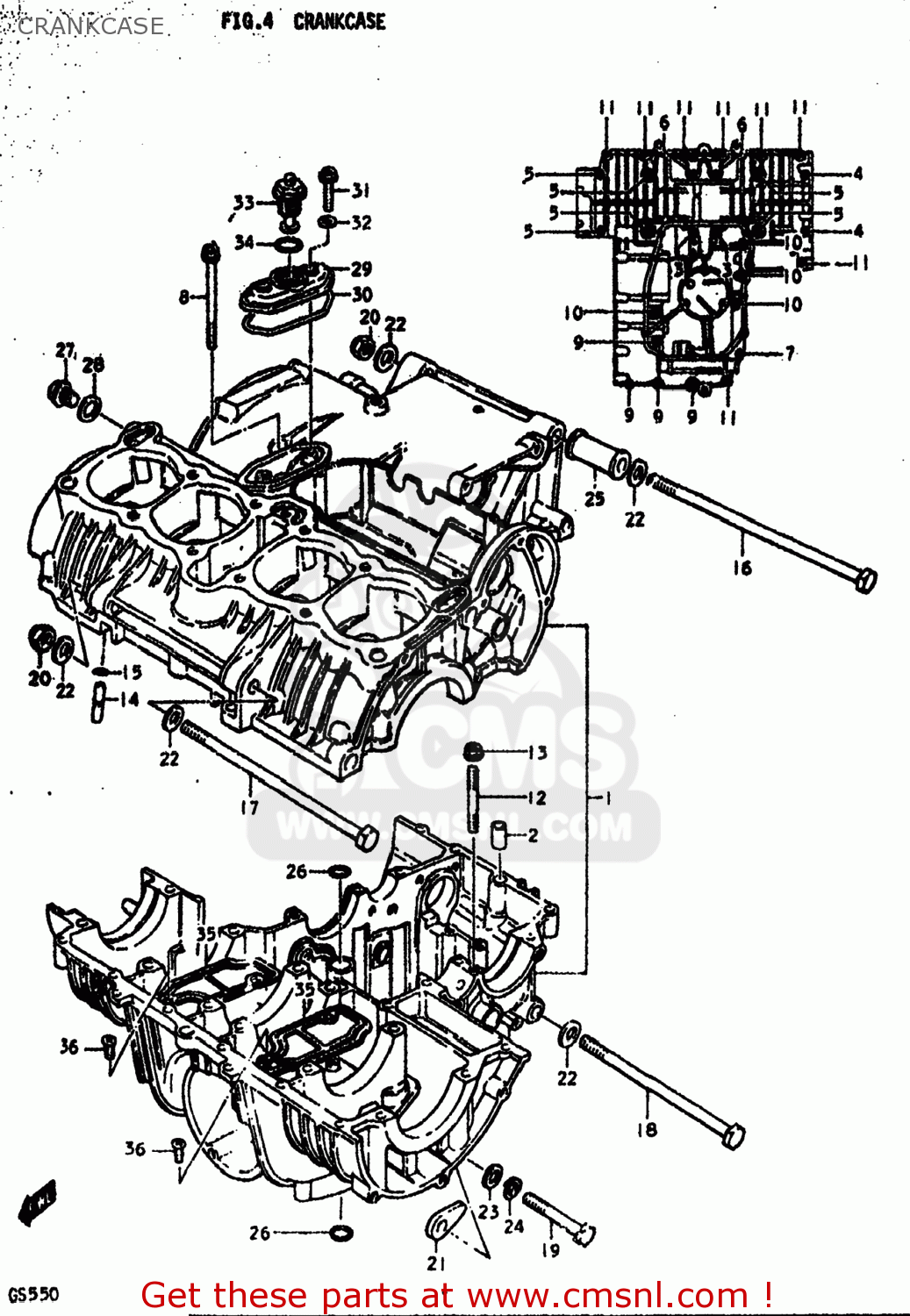

Crankcase diagram GS550E 1978 (C) USA (E03)
CRANKCASE GS550E 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130047810
ref: 1-1
11300-34880
CRANKCASE SET
€ 1,791.50
1-2
1130047811
ref: 1-2
11300-34880
CRANKCASE SET
€ 1,791.50
1-3
1130047812
ref: 1-3
11300-34880
CRANKCASE SET
€ 1,791.50
2
0920613001
ref: 2
04211-13189
PIN
€ 2.50
3
0910308026
ref: 3
09103-08109
BOLT
€ 3.50
4-1
0910308018
ref: 4-1
01550-08907
BOLT
€ 3.50
4-2
0151708908
ref: 4-2
01550-08907
BOLT 8X90
€ 3.50
5
0151708708
ref: 5
01550-08707
BOLT (8X70)
€ 2.00
6
0151708558
ref: 6
01550-08557
BOLT 8X55
€ 3.00
7
0151708458
ref: 7
01550-08457
BOLT (8X45)
€ 3.00
8-1
0910306019
ref: 8-1
01550-06907
BOLT
€ 2.00
8-2
0151706908
ref: 8-2
01550-06907
BOLT (6X90)
€ 2.00
9-1
0910306021
ref: 9-1
01550-06607
BOLT
€ 2.00
9-2
0151706608
ref: 9-2
01550-06607
BOLT (6X60)
€ 2.50
10
0151706508
ref: 10
01550-06507
BOLT ,6X50
€ 2.00
11
0151706408
ref: 11
01550-06407
BOLT
€ 2.50
12
0142106408
ref: 12
01421-0640A
STUD BOLT
€ 2.50
13
0915906017
ref: 13
08319-31067
NUT
€ 2.50
14
0936405005
ref: 14
UNION
€ 3.00
15
0928003001
ref: 15
09280-03003
O-RING
€ 2.50
16
0910010074
ref: 16
BOLT 10X270
€ 15.50
17
0910010111
ref: 17
09103-10138
BOLT
€ 11.50
18
0910010078
ref: 18
BOLT(10X165)
€ 10.50
19
0151710558
ref: 19
01550-10557
BOLT 10X55
€ 3.00
20
0915910011
ref: 20
NUT
€ 3.00
21
0915910020
ref: 21
NUT
€ 7.50
22
0832211108
ref: 22
08322-01107
WASHER
€ 2.50
22
0832211106
ref: 22
08322-0110A
WASHER
€ 2.50
23
0916010005
ref: 23
WASHER(10.5X20X3.2)
€ 2.00
24
0832121108
ref: 24
08321-01107
LOCK WASHER
€ 2.00
25-1
0918010046
ref: 25-1
11610-44010
SPACER
€ 12.00
25-2
1161045000
ref: 25-2
11610-44010
SPACER,ENGINE MOUNT
€ 12.00
26
0928013001
ref: 26
O RING(D:3.2,ID:12.9)
€ 4.00
27
0924714012
ref: 27
09247-14026
PLUG (14X12)
€ 3.50
28
0916814004
ref: 28
GASKET(14X19.2X2) (NAS)
€ 2.50
29
1644545000
ref: 29
HOUSING,OIL PRESSURE SWITCH
€ 28.00
30
1644845000
ref: 30
O RING,PRESSURE SWITCH HOUSING
€ 10.50
31
0151706258
ref: 31
01550-06257
BOLT
€ 2.50
32
0916806009
ref: 32
09168-06023
GASKET (NAS)
€ 2.00
33
3782045050
ref: 33
37820-45061
SWITCH ASSEMBLY
€ 30.00
34
0928019001
ref: 34
O RING(D:1.9,ID:18.8)
€ 1.50
35
1152147000
ref: 35
PLATE,OIL SEPARATOR
€ 2.00
36
0211206088
ref: 36
02112-06087
SCREW
€ 2.00
