CRANKCASE RH COVER

GS550E 1978 (C) USA (E03)

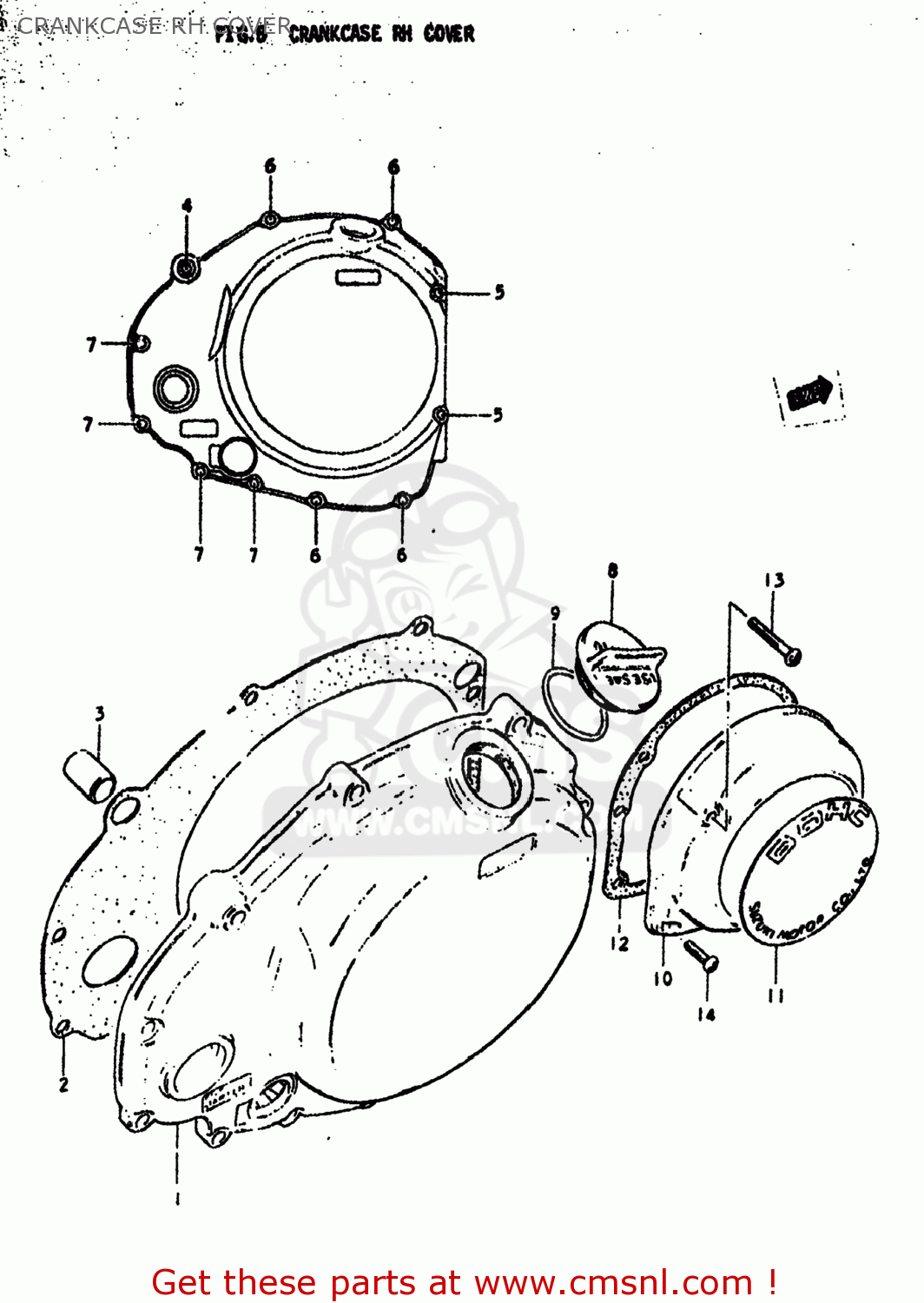

Crankcase rh cover diagram GS550E 1978 (C) USA (E03)

CRANKCASE RH COVER GS550E 1978 (C) USA (E03)

CRANKCASE RH COVER GS550E 1978 (C) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1134047000
ref: 1
11340-47001

COVER,CLUTCH

€ 159.00

2

1148247000
ref: 2
11482-47000-H17

GASKET,CLUTCH COVER (MCA)

€ 17.00

3

0920613001
ref: 3
04211-13189

PIN

€ 2.50

4

0211206458
ref: 4
02112-06457

SCREW (6X45)

€ 2.00

5

0211206408
ref: 5
02112-06407

SCREW

€ 2.00

6

0211206258
ref: 6
02112-06257

SCREW

€ 2.00

7

0211206208
ref: 7
02112-06207

SCREW

€ 2.00

8

0925930001
ref: 8
09200-30810

CAP

€ 8.50

9

0928032005
ref: 9

O RING(D:2.2,ID:32)

€ 2.00

10

1138147000
ref: 10
11381-47002

COVER,CONTACT BREAKER

€ 58.50

11-1

6823547000
ref: 11-1
68235-47200

EMBLEM

€ 39.50

11-2

6823547100
ref: 11-2
68235-47200

EMBLEM

€ 39.50

12

1149147000
ref: 12

GASKET,CONTACT BREAKER COVER (NAS)

€ 3.00

13

0211205308
ref: 13
02112-0530A

SCREW

€ 1.50

14

0211205168
ref: 14
02112-05167

SCREW

€ 2.50
