GS550ESF 1984 (E) USA (E03)

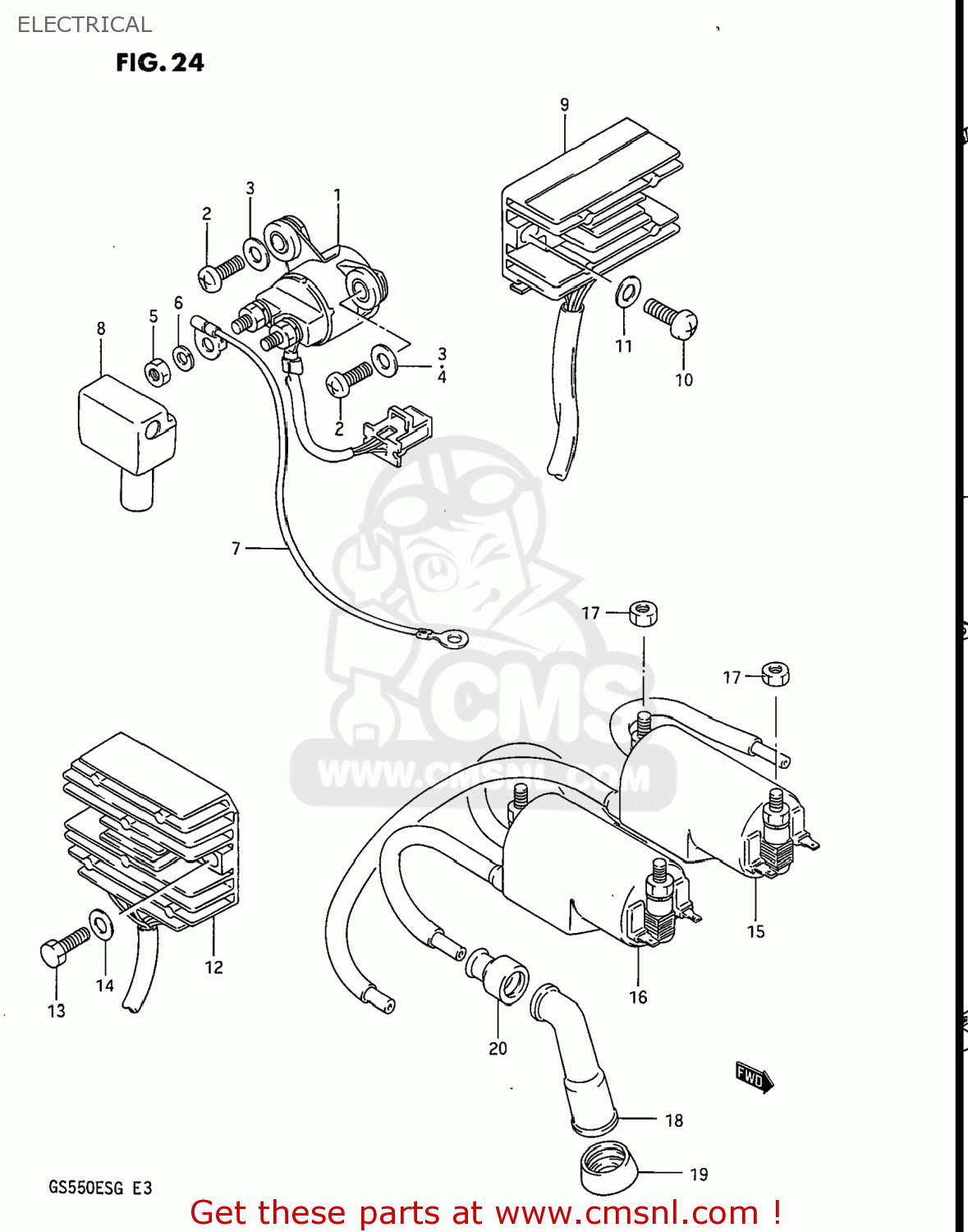

Electrical diagram GS550ESF 1984 (E) USA (E03)
ELECTRICAL GS550ESF 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3180043410
ref: 1-1
31800-43411
RELAY,STARTER SWITCH
€ 92.50
1-2
3180043411
ref: 1-2
RELAY ASSY,STARTING MOTOR
€ 92.50
2
0211206208
ref: 2
02112-06207
SCREW
€ 2.00
3-1
0916006007
ref: 3-1
09160-06084
WASHER
€ 2.00
3-2
0916006007
ref: 3-2
09160-06084
WASHER
€ 2.00
4
0832221068
ref: 4
08322-01067
WASHER
€ 2.00
5
0831011066
ref: 5
08310-0006A
NUT
€ 2.00
6
0832121066
ref: 6
08321-0106A
WASHER,LOCK
€ 2.00
7
3385043441
ref: 7
WIRE,STARTER MOTOR LEAD
€ 24.50
8
3186143410
ref: 8
CAP,STARTER RELAY TERMINAL
€ 6.00
9
3280043400
ref: 9
32800-43X51
RECTIFIER ASSEMBLY
€ 380.50
10-1
0912806006
ref: 10-1
09128-06057
BOLT(6X20)
€ 2.00
10-2
0211206206
ref: 10-2
02112-0620A
SCREW
€ 2.00
11-1
0832221068
ref: 11-1
08322-01067
WASHER
€ 2.00
11-2
0832221066
ref: 11-2
08322-0106B
WASHER, LOWER
€ 2.00
12
3280043410
ref: 12
32800-24501
RECTIFIER ASSEMBLY
€ 289.00
13
0912806023
ref: 13
SCREW(6X20)
€ 1.50
14
0832221064
ref: 14
08322-0106B
WASHER
€ 2.00
15
3341043420
ref: 15
33410-34521
COIL ASSEMBLY,IGNITION
€ 348.00
16
3342043420
ref: 16
33410-34521
COIL ASSEMBLY,IGNITION
€ 348.00
17
0831011068
ref: 17
08310-00067
NUT
€ 2.50
18
3351045010
ref: 18
CAP ASSY,SPARK PLUG
€ 23.00
19
3354124510
ref: 19
33541-47D00
SEAL,SPARK PLUG CAP
€ 7.00
20
3354298000
ref: 20
33542-38B00
SEAL,SPARK PLU
€ 4.50
