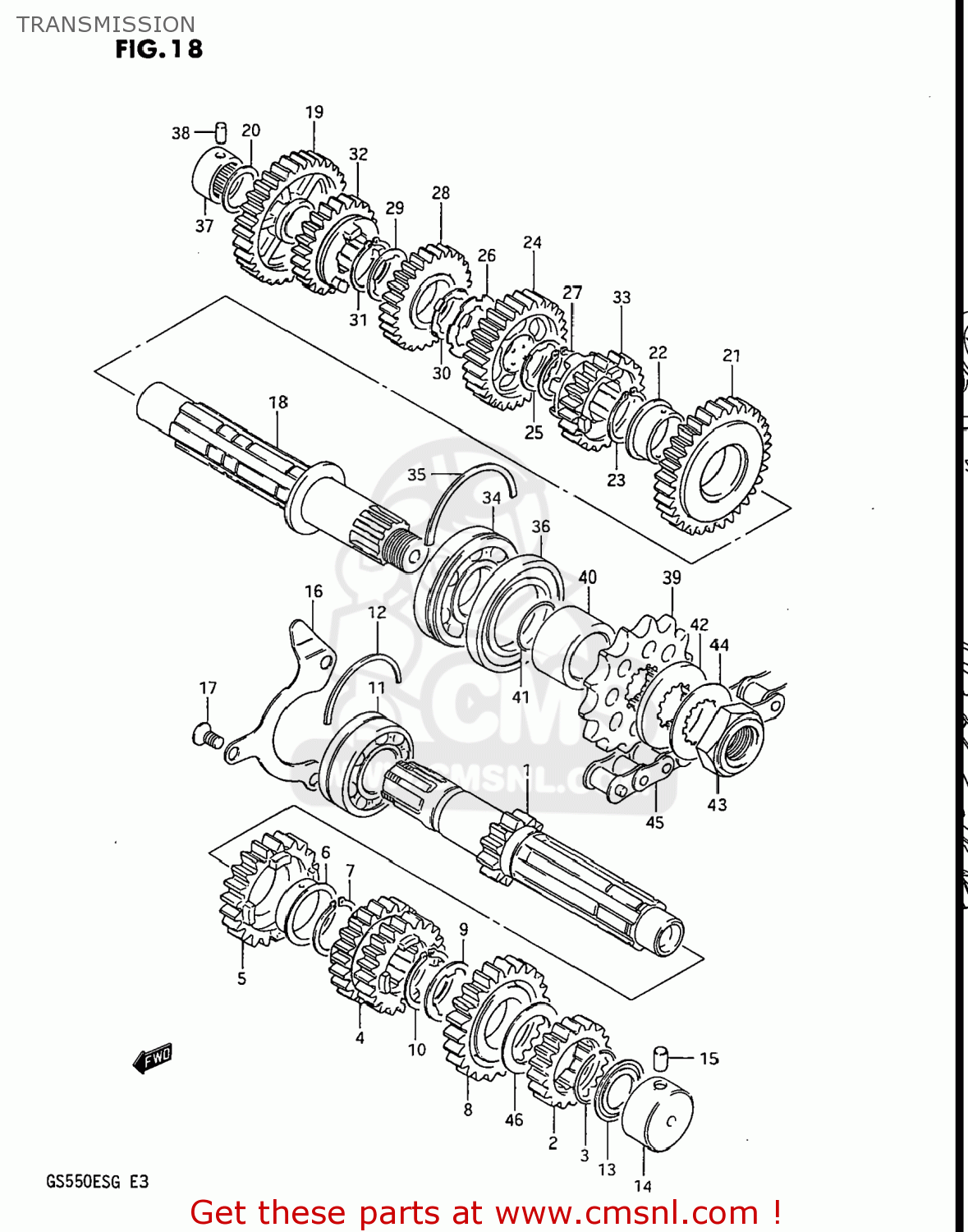

TRANSMISSION

ref

part #

description

quantity

1

2412143400
ref: 1

SHAFT,COUNTER

€ 152.00

2

2422143400
ref: 2

GEAR,SECOND DRIVE

€ 33.50

3

0938025006
ref: 3

RING,SNAP

€ 2.00

4

2423143401
ref: 4

GEAR,THIRD/FOURTH DRIVE

€ 98.50

5

2425143400
ref: 5

GEAR,FIFTH DRIVE

€ 85.00

6

0930125001
ref: 6
24322-19F00

BUSHING

€ 12.50

7

0938025003
ref: 7

RING,SNAP

€ 3.00

8

2426143401
ref: 8

GEAR,SIXTH DRIVE

€ 74.50

9

0916725012
ref: 9

WASHER,LOCK

€ 3.50

10

0938025003
ref: 10

RING,SNAP

€ 3.00

11

0926725008
ref: 11

BEARING(25X52X19.6)

€ 79.00

12

0939058001
ref: 12

C RING

€ 2.00

13

0928520006
ref: 13

SEAL,OIL(20X31.2X2.7)

€ 7.00

14

0926320049
ref: 14

BEARING(20X34X17.5)

€ 58.00

15

0422107209
ref: 15

PIN

€ 1.50

16

2474143400
ref: 16

PLATE,COUNTERSHAFT BEARING

€ 5.50

17

0212206168
ref: 17
02122-06167

SCREW

€ 2.00

18

2413143401
ref: 18

SHAFT,DRIVE

€ 125.50

19

2431043400
ref: 19

GEAR,FIRST DRIVEN

€ 59.50

20

0821120341
ref: 20

WASHER

€ 2.00

21

2432143400
ref: 21

GEAR,SECOND DRIVEN

€ 76.50

22

0930125001
ref: 22
24322-19F00

BUSHING

€ 12.50

23

0938025003
ref: 23

RING,SNAP

€ 3.00

24

2433043401
ref: 24

GEAR,3RD DRIVEN

€ 102.50

25

0916725012
ref: 25

WASHER,LOCK

€ 3.50

26

0916725013
ref: 26

WASHER,LOCK

€ 2.50

27

0938025003
ref: 27

RING,SNAP

€ 3.00

28

2434043400
ref: 28

GEAR,FOURTH DRIVEN

€ 87.00

29

0916725012
ref: 29

WASHER,LOCK

€ 3.50

30

0916925001
ref: 30

WASHER

€ 2.00

31

0938025003
ref: 31

RING,SNAP

€ 3.00

32

2435143401
ref: 32

GEAR,FIFTH DRIVEN

€ 46.00

33

2436143402
ref: 33

GEAR,SIXTH DRIVEN

€ 48.50

34

0926225065
ref: 34
09262-25105

BALL BEARING 25X62X17

€ 59.50

35

0939062006
ref: 35
09390-62012

C-RING

€ 5.00

36

0928333002
ref: 36

SEAL,OIL(33X62X7)

€ 14.00

37

0926320040
ref: 37

BEARING(20X34X20)

€ 42.50

38

0422107209
ref: 38

PIN

€ 1.50

39

2751143400
ref: 39
27510-21E00

SPROCKET,ENGINE

€ 45.00

40

0918025066
ref: 40

SPACER (25X33X20.1)

€ 7.50

41

0928025001
ref: 41

O RING(D:1,ID:24.5)

€ 2.50

42

2751945201
ref: 42

SPACER

€ 22.00

43

0915920001
ref: 43
09159-20004

NUT

€ 12.00

44

0916725011
ref: 44
09167-25019

WASHER

€ 2.50

45-1

2760043410
ref: 45-1
27600-19C00-112

CHAIN ASSEMBLY,DRIVE

€ 197.00

45-2

2760031320
ref: 45-2
27600-19C00-112

CHAIN ASSEMBLY,DRIVE

€ 197.00

46-1

0918125036
ref: 46-1

SHIM (T:0.5)

€ 3.00

46-2

0918125037
ref: 46-2

SHIM (T:0.6)

€ 3.50

46-3

0918125038
ref: 46-3

SHIM (T:0.7)

€ 3.50

46-4

0918125039
ref: 46-4

SHIM

€ 3.00

all assemblies
