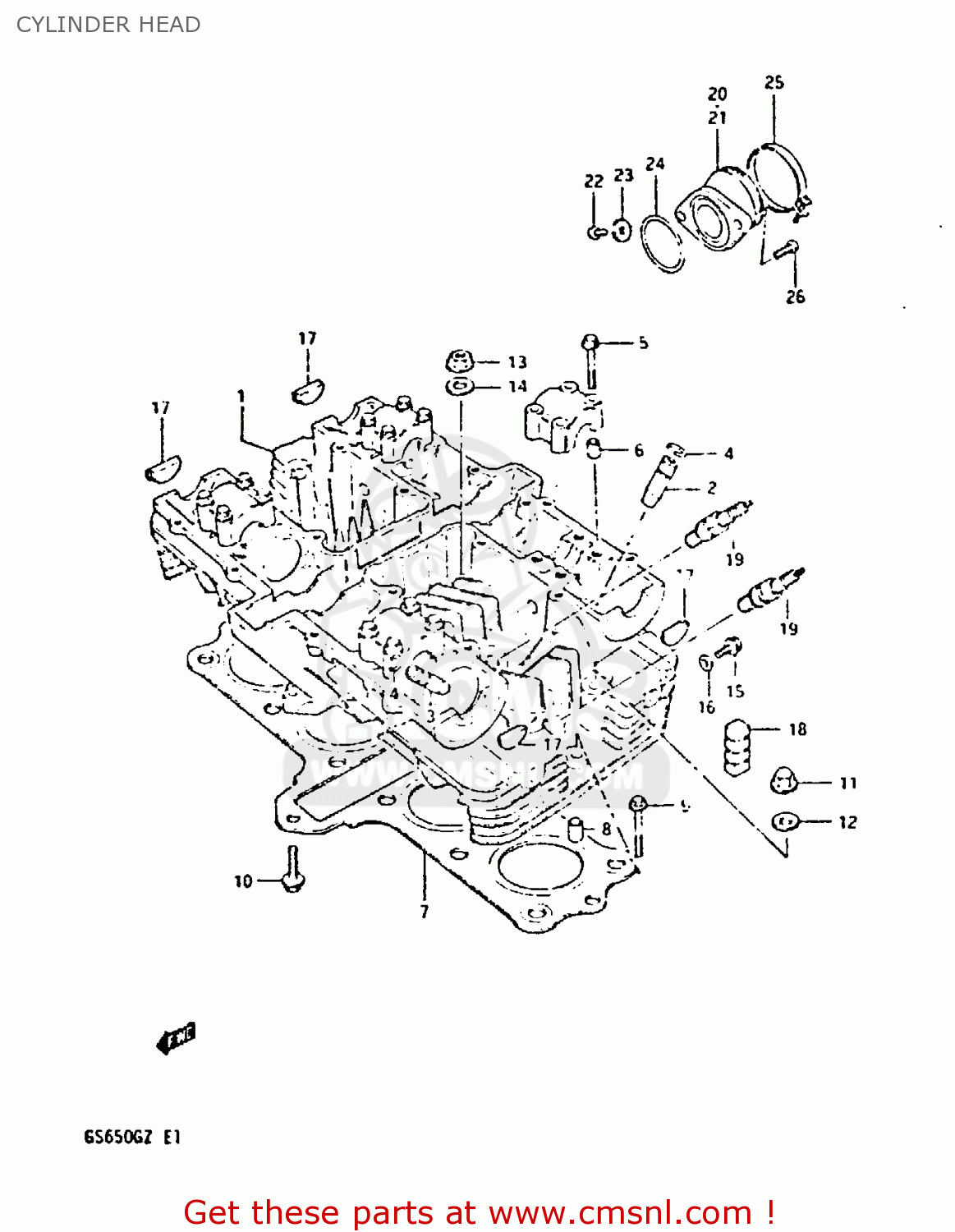

CYLINDER HEAD

ref

part #

description

quantity

1-1

1110034200
ref: 1-1
MODEL X

HEAD ASSEMBLY,CYLINDER

€ 1,167.50

1-2

1110034210
ref: 1-2
MODEL Z

HEAD,CYLINDER

€ 1,020.00

2

1111534270
ref: 2

GUIDE,INTAKE VALVE

€ 14.50

3

1111647740
ref: 3

GUIDE,EXHAUST VALVE

€ 17.50

4

0938110003
ref: 4

RING,SNAP

€ 2.50

5

0910306026
ref: 5

BOLT(6X39)

€ 2.00

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7-1

1114134201
ref: 7-1
MODEL X

GASKET,CYLINDER HEAD (MCA)

€ 128.50

7-2

1114134202
ref: 7-2
MODEL Z

GASKET,CYLINDER HEAD (MCA)

€ 128.50

8

0421111189
ref: 8

PIN

€ 2.00

9

0151706458
ref: 9

BOLT,UNDER

€ 2.50

10

0151706308
ref: 10

BOLT

€ 2.00

11

0915908029
ref: 11

NUT

€ 6.00

12

0916808012
ref: 12

GASKET (NAS)

€ 4.50

13

0915908031
ref: 13

NUT

€ 2.00

14

0916008039
ref: 14

WASHER(8.5X19X2.3)

€ 2.00

15

0151706128
ref: 15

BOLT

€ 2.50

16

0916806009
ref: 16

GASKET (NAS)

€ 2.00

17

0924123002
ref: 17

PLUG

€ 8.50

18

1125236500
ref: 18

PAD,CYLINDER

€ 6.00

19-1

NOTUSED
ref: 19-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

19-2

NOTUSED
ref: 19-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

19-3

0348200149
ref: 19-3
E2, E4, E6, E16, E18

SPARK PLUG (NGK, DR8ES-L)

€ 0.00

19-4

0948200223
ref: 19-4
E2, E4, E6, E16, E18

PLUG,SPARK(X24ESR-U)

€ 3.50

20

1311047010
ref: 20

PIPE,INTAKE,R

€ 40.00

21

1312047010
ref: 21

PIPE,INTAKE,L

€ 38.00

22

0910605006
ref: 22

BOLT

€ 2.00

23

0832221058
ref: 23

WASHER

€ 2.50

24

0928038003
ref: 24

O-RING

€ 4.50

25

0940250306
ref: 25

CLAMP

€ 6.00

26

0211206168
ref: 26

SCREW

€ 2.50
