MUFFLER

GS650G 1981 (X) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

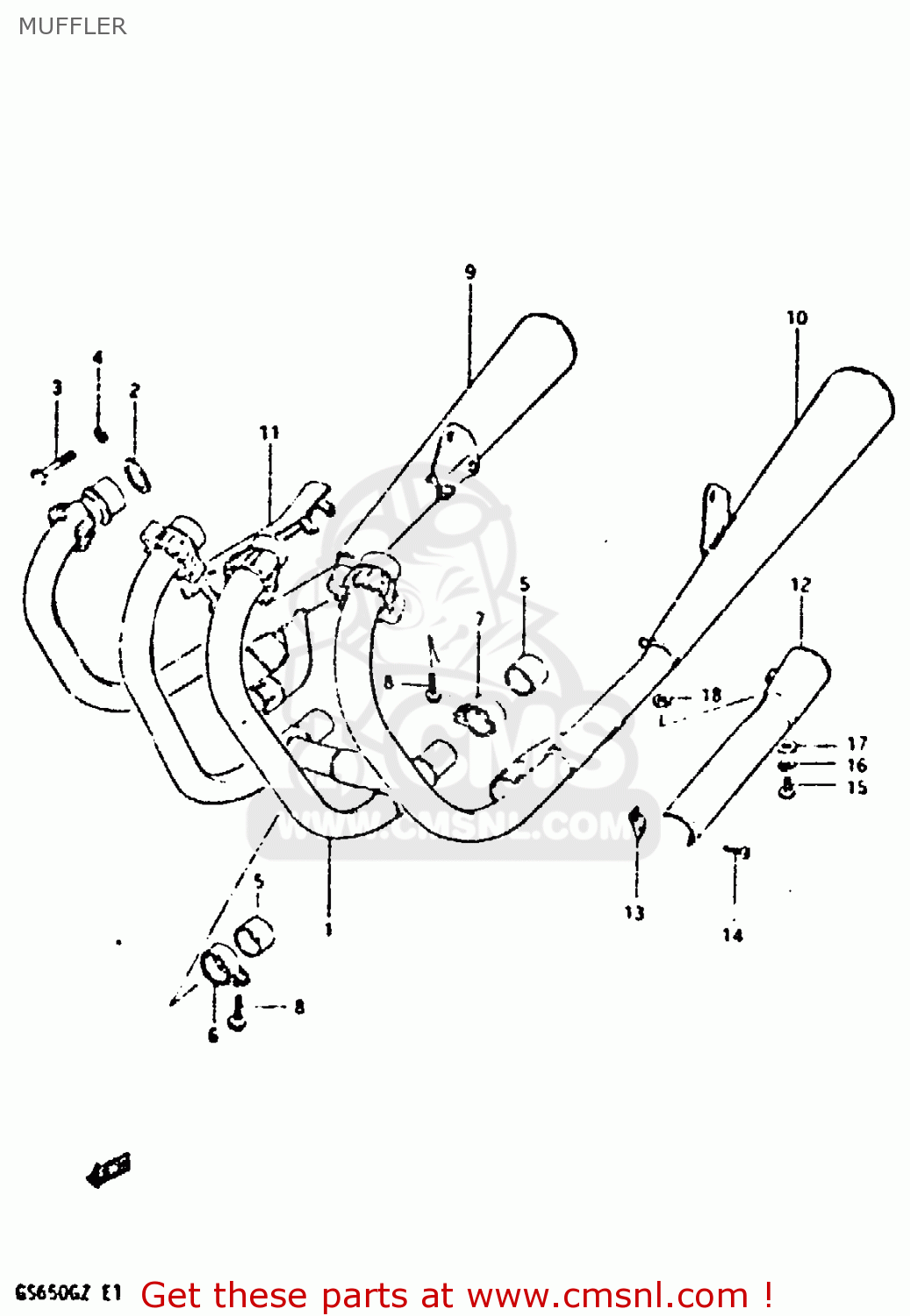

Muffler diagram GS650G 1981 (X) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

MUFFLER GS650G 1981 (X) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

MUFFLER GS650G 1981 (X) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

1

1410034300
ref: 1

PIPE, EXHAUST CENTER

€ 222.50

2

1418105020
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 6.50

3

0110708408
ref: 3

BOLT 8X40

€ 3.00

4

0832121088
ref: 4

LOCK WASHER

€ 2.00

5

1477147010
ref: 5

CONNECTOR,MUFFLER

€ 35.00

6

1445934300
ref: 6

CLAMP,MUFFLER CONNECTOR

€ 13.00

7

1446934300
ref: 7

CLAMP,MUFFLER CONNECTOR

€ 13.00

8

0151708258
ref: 8

BOLT

€ 2.50

9-1

1430134300
ref: 9-1

MUFFLER, RH

€ 426.00

9-2

NOTUSED
ref: 9-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

10-1

1430234300
ref: 10-1

MUFFLER, LH

€ 364.00

10-2

NOTUSED
ref: 10-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

11

1478034301
ref: 11

COVER,MUFFLER

€ 36.00

12

1479034301
ref: 12

COVER,MUFFLER

€ 22.00

13

1478534300
ref: 13

CLAMP,MUFFLER COVER

€ 8.00

14

0211205208
ref: 14

SCREW 5X20

€ 3.00

15

0211206128
ref: 15

SCREW 6X12

€ 2.00

16

0832121068
ref: 16

LOCK WASHER

€ 2.50

17

0832221068
ref: 17

WASHER

€ 2.00

18

0916806005
ref: 18

GASKET 6.2X12X1.5 (MCA)

€ 2.00
