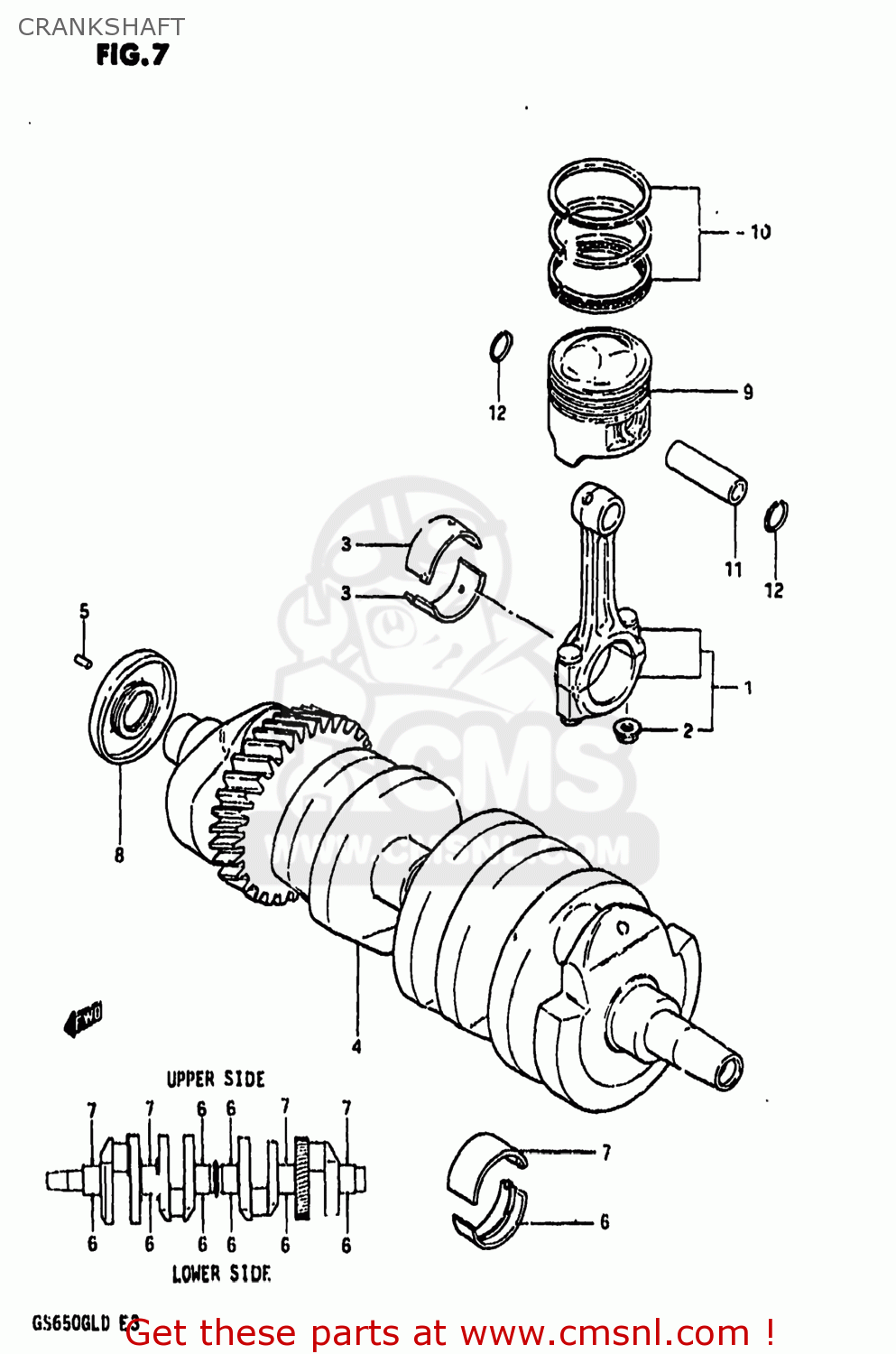

CRANKSHAFT

ref

part #

description

quantity

1

1216034202
ref: 1

ROD ASSEMBLY,CONNECTING

€ 103.00

2

0915908033
ref: 2

NUT

€ 2.50

3-1

1216434210010
ref: 3-1
12164-17E01-0A0

BEARING,CRANK PIN

€ 14.50

3-2

1216434210020
ref: 3-2
12164-17E01-0B0

BEARING,CRANK PIN

€ 14.50

3-3

1216434210030
ref: 3-3
12164-17E01-0C0

BEARING,CRANK PIN

€ 15.00

3-4

1216434210040
ref: 3-4
12164-17E01-0D0

BEARING,CRANK PIN

€ 15.50

3-5

1216434210025
ref: 3-5

BEARING,CRANK PIN(US:0.25)

€ 11.00

3-6

1216434210050
ref: 3-6

METAL,CRANK PIN

€ 10.50

4

1222034203
ref: 4

CRANKSHAFT ASSEMBLY

€ 952.00

5

0422104089
ref: 5

PIN

€ 1.50

6-1

1222945400010
ref: 6-1
12229-09301-0A0

METAL CRANKSHAFT

€ 10.00

6-2

1222945400020
ref: 6-2
12229-09301-0B0

METAL CRANKSHAFT

€ 10.00

6-3

1222945400030
ref: 6-3
12229-09301-0C0

METAL CRANKSHAFT

€ 10.00

6-4

1222945400040
ref: 6-4
12229-09301-0D0

METAL CRANKSHAFT

€ 9.00

6-5

1222945400025
ref: 6-5

BEARING,CRANKSHAFT(US:0.25)

€ 11.50

6-6

1222945400050
ref: 6-6

BEARING,CRANKSHAFT(US:0.5)

€ 10.50

7-1

1222945410010
ref: 7-1
12229-06B10-0A0

METAL CRANKSHAFT

€ 12.00

7-2

1222945410020
ref: 7-2
12229-06B10-0B0

METAL CRANKSHAFT

€ 12.50

7-3

1222945410030
ref: 7-3
12229-06B10-0C0

METAL CRANKSHAFT

€ 12.00

7-4

1222945410040
ref: 7-4
12229-06B10-0D0

METAL CRANKSHAFT

€ 11.50

7-5

1222945410025
ref: 7-5
12229-45400-025

METAL CRANKSHAFT

€ 11.50

7-6

1222945410050
ref: 7-6
12229-45400-050

METAL CRANKSHAFT

€ 10.50

8

0928330031
ref: 8
09283-30048

OIL SEAL

€ 15.00

9-1

1211134203
ref: 9-1
12111-34210

PISTON

€ 53.50

9-2

1211134203050
ref: 9-2
12103-34830-050

PISTON

€ 127.50

9-3

1211134203100
ref: 9-3
12103-34830-100

PISTON

€ 109.50

10-1

1214034240
ref: 10-1

RING SET,PISTON

€ 50.00

10-2

1214034240050
ref: 10-2

RING SET,PISTON (OS:0.5)

€ 44.00

10-3

1214034240100
ref: 10-3

RING SET,PISTON (OS:1.0)

€ 34.50

11

1215167001
ref: 11

PIN,PISTON

€ 10.00

12

0938116002
ref: 12
09381-16001

CIRCLIP

€ 1.50
