RIGHT HANDLE SWITCH

GS650GL 1983 (D) USA (E03)

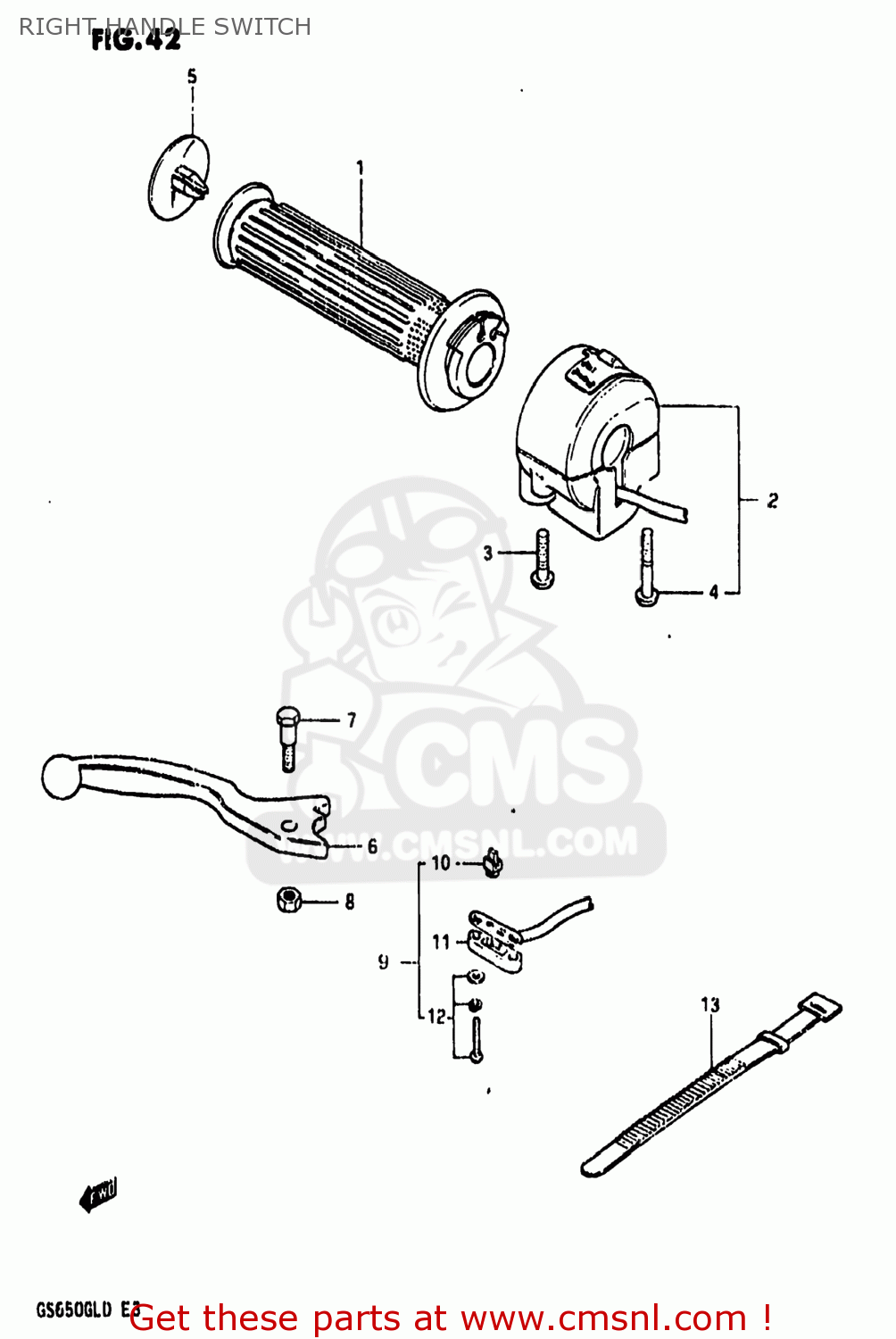

Right handle switch diagram GS650GL 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5711044011
ref: 1-1
57110-49510

GRIP,THROTTLE

€ 33.00

1-2

5711044100
ref: 1-2
57110-49501

GRIP,THROTTLE

€ 26.00

2-1

3720045430
ref: 2-1

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 42.00

2-2

3720045410
ref: 2-2

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 59.50

0211205258
ref: 3
02112-05257

SCREW

€ 2.00

0211205358
ref: 4
02112-05357

SCREW

€ 1.50

5721549100
ref: 5

CAP,GRIP END

€ 3.50

5742049101
ref: 6

LEVER,BRAKE

€ 36.50

5743118621
ref: 7

BOLT

€ 8.00

0831921068
ref: 8
08319-2106A

NUT 6MM

€ 2.00

5746049300
ref: 9
57460-45500

SWITCH ASSEMBLY

€ 40.00

5746518601
ref: 10

CONTACT,SWITCH

€ 4.50

5748133010
ref: 11

COVER,FR BK TERMINAL BASE

€ 19.50

0912503105
ref: 12
09125-03105-XC0

SCREW

€ 2.50

0940712402
ref: 13

CLAMP(L:120)

€ 3.00
