FRONT FORK (GS750B
GS750 1979 (N) USA (E03)

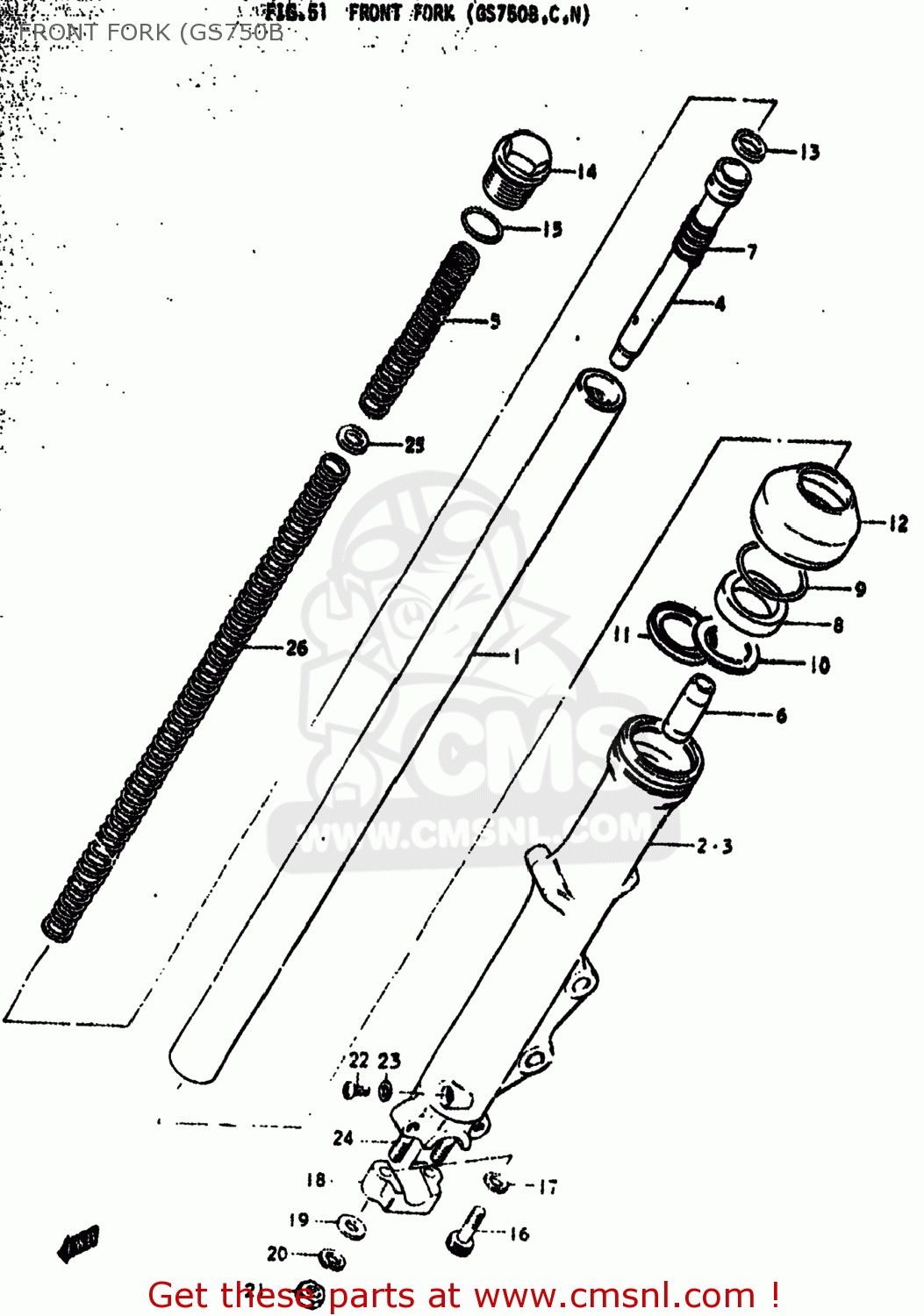

Front fork (gs750b diagram GS750 1979 (N) USA (E03)
FRONT FORK (GS750B GS750 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
5110345030
ref: 0-1
51103-45031
DAMPER ASSEMBLY,RIGHT
€ 209.00
0-2
5110345031
ref: 0-2
DAMPER ASSEMBLY,RIGHT
€ 209.00
0-3
5110445030
ref: 0-3
51104-45031
DAMPER ASSEMBLY,LEFT
€ 232.00
0-4
5110445031
ref: 0-4
DAMPER ASSEMBLY,FRONT FORK,LEFT
€ 232.00
1
5111045030
ref: 1
TUBE,INNER
€ 270.50
2-1
5113045031
ref: 2-1
51130-45032
TUBE,FORK,OUTER,RIGHT
€ 220.50
2-2
5113045032
ref: 2-2
TUBE,FORK,OUTER,RIGHT
€ 220.50
3-1
5114045031
ref: 3-1
51140-45032
TUBE,FORK,LEFT,OUTER
€ 211.50
3-2
5114045032
ref: 3-2
TUBE,FORK,LEFT,OUTER
€ 211.50
4
5114645030
ref: 4
CYLINDER,FRONT FORK
€ 25.50
5
5117145030
ref: 5
SPRING,FRONT FORK,UPPER
€ 9.50
6
5119545030
ref: 6
PIECE,OIL LOCK
€ 16.00
7
5117745030
ref: 7
SPRING,FORK REBOUND
€ 4.00
8-1
5115334730
ref: 8-1
51153-19D10
OIL SEAL,FRONT FORK
€ 14.00
8-2
5115345030
ref: 8-2
51153-19D10
OIL SEAL,FRONT FORK
€ 14.00
9
5155631231
ref: 9
51156-01A00
RING,OIL SEAL STOPPER
€ 3.50
10
5116845030
ref: 10
51168-30B00
SPACER,SEAL
€ 5.00
11
5116845031
ref: 11
51168-30B00
SPACER,SEAL
€ 5.00
12
5157131232
ref: 12
51571-20520
BOOT
€ 19.50
13
5119631230
ref: 13
RING
€ 7.50
14
5135131030
ref: 14
CAP,INNER TUBE
€ 34.50
15
5118131030
ref: 15
O RING
€ 3.50
16-1
5114731030
ref: 16-1
51147-48130
BOLT
€ 3.50
16-2
5114748130
ref: 16-2
BOLT(8X27)
€ 3.50
17
5114831030
ref: 17
51148-36011
GASKET (NAS)
€ 4.00
18
5113231030
ref: 18
HOLDER,AXLE
€ 31.50
19
0832221088
ref: 19
08322-01087
WASHER
€ 2.00
20
0832121088
ref: 20
08321-01087
LOCK WASHER
€ 2.00
21
0831012088
ref: 21
08310-00087
NUT
€ 2.00
22
0211104067
ref: 22
02112-0406B
SCREW
€ 2.00
23
5118333030
ref: 23
GASKET (NAS)
€ 6.50
24
0142108258
ref: 24
01421-0825A
STUD 8X25
€ 2.50
25
5119245030
ref: 25
51192-47200
WASHER
€ 2.50
26
5118445030
ref: 26
SPRING,FRONT FORK
€ 23.50
