TURN SIGNAL LAMP (GS750B
GS750 1979 (N) USA (E03)

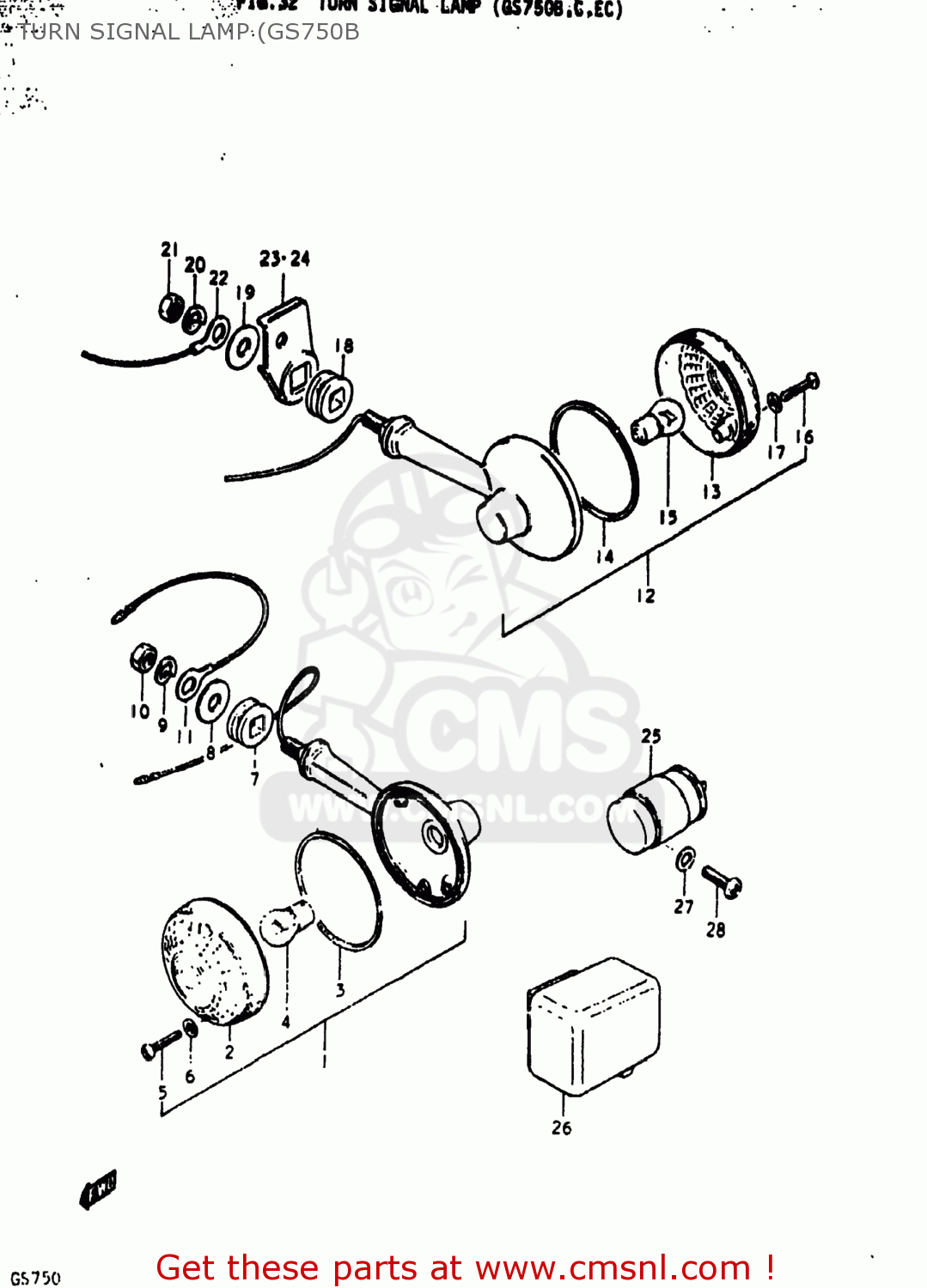

Turn signal lamp (gs750b diagram GS750 1979 (N) USA (E03)
TURN SIGNAL LAMP (GS750B GS750 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560145010
ref: 1
35601-45X00-999
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 102.50
2
3561245010
ref: 2
LENS
€ 12.50
3
3561345010
ref: 3
GASKET (NAS)
€ 7.50
4
0947112006
ref: 4
BULB(12V23W,STANLEY,A4577A)
€ 4.00
5
0211104308
ref: 5
09125-04023
SCREW
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
3569032200
ref: 7
CUSHION
€ 38.50
8
0916010006
ref: 8
09160-10501
WASHER (10.5X30X2.3)
€ 2.50
9
0832121108
ref: 9
08321-01107
LOCK WASHER
€ 2.00
10
0831012108
ref: 10
08310-00107
NUT
€ 2.50
11
3686245000
ref: 11
36660-33000
WIRE
€ 5.00
12
3560145010
ref: 12
35601-45X00-999
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 102.50
13
3561245010
ref: 13
LENS
€ 12.50
14
3561345010
ref: 14
GASKET (NAS)
€ 7.50
15
0947112006
ref: 15
BULB(12V23W,STANLEY,A4577A)
€ 4.00
16
0211104308
ref: 16
09125-04023
SCREW
€ 1.50
17
3562743010
ref: 17
GASKET (NAS)
€ 2.00
18
3569032200
ref: 18
CUSHION
€ 38.50
19
0916010006
ref: 19
09160-10501
WASHER (10.5X30X2.3)
€ 2.50
20
0832121108
ref: 20
08321-01107
LOCK WASHER
€ 2.00
21
0831012108
ref: 21
08310-00107
NUT
€ 2.50
22
3686245000
ref: 22
36660-33000
WIRE
€ 5.00
23
4158045000019
ref: 23
BRACKET,RR TURNSIGNAL LAMP,R
€ 12.00
24
4159045000019
ref: 24
BRACKET,RR TURNSIGNAL LAMP,L
€ 16.50
25
3861036610
ref: 25
38610-31X50
RELAY,TURN SIGNAL
€ 54.50
26
3861045030
ref: 26
38610-31X50
RELAY,TURN SIGNAL
€ 54.50
27
0832221068
ref: 27
08322-01067
WASHER
€ 2.00
28
0211206168
ref: 28
02112-06167
SCREW
€ 2.50
