Buy Suzuki GS Parts Online


CLUTCH RELEASE

GS750B 1977 (B) USA (E03)

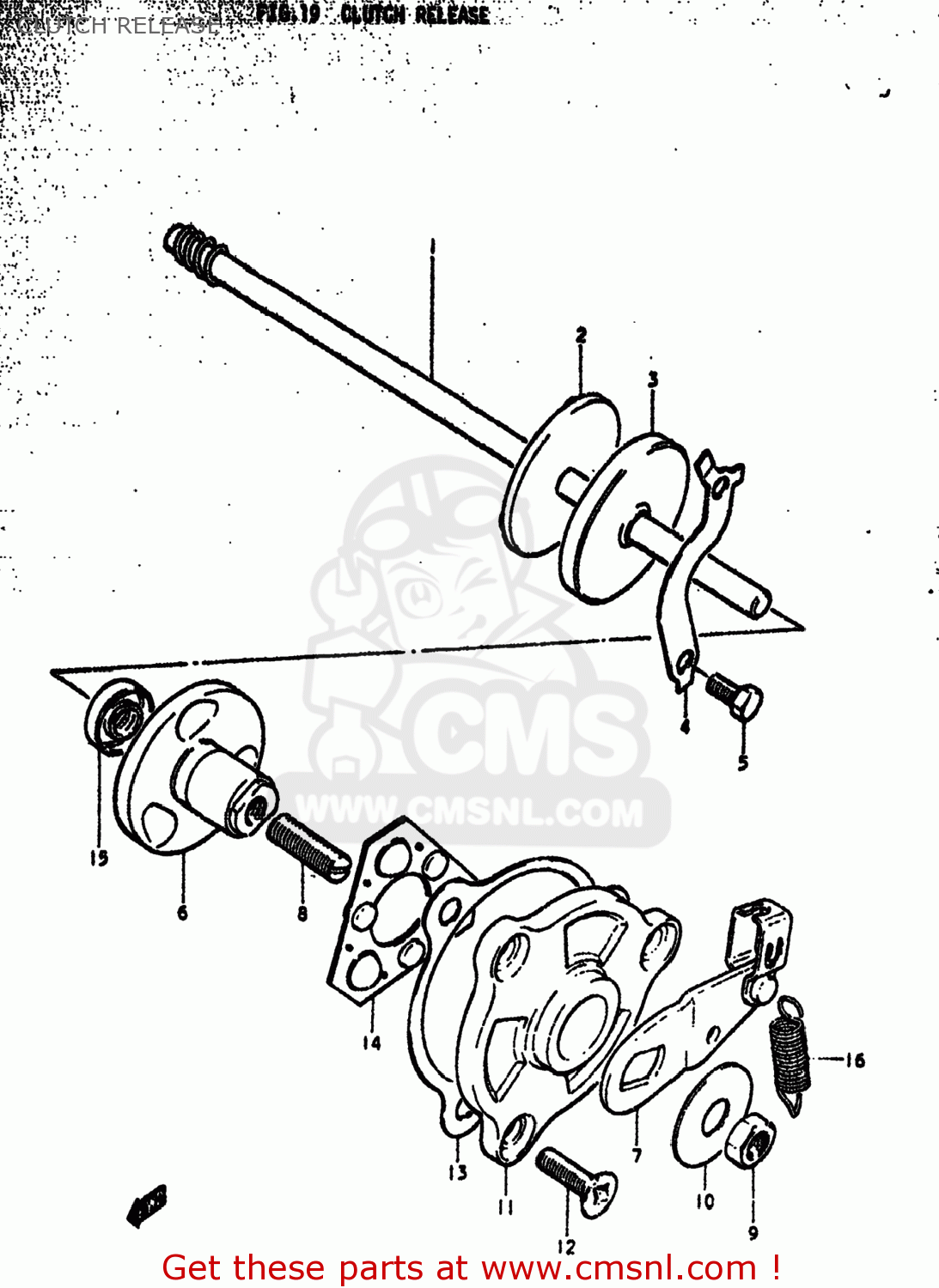

Clutch release diagram GS750B 1977 (B) USA (E03)

CLUTCH RELEASE GS750B 1977 (B) USA (E03)
CLUTCH RELEASE GS750B 1977 (B) USA (E03)
CLUTCH RELEASE GS750B 1977 (B) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
2310045000
ref: 1-1
23110-45001
ROD,CLUTCH PUSH
€ 66.50
1-2
2311045001
ref: 1-2
ROD ASSY,CLUTCH RELEASE
2311045001
€ 66.50
2
2311545000
ref: 2
HOLDER,CLUTCH PUSH ROD
2311545000
€ 17.50
3
0928308001
ref: 3
SEAL,OIL(8X47X8)
0928308001
€ 14.50
4
2311745000
ref: 4
RETAINER,CL PUSH ROD OIL SEAL
2311745000
€ 14.00
5
0110706128
ref: 5
01500-06127
BOLT
0110706128
€ 2.00
6
2321134001
ref: 6
GUIDE,CLUTCH RELEASE,OUTER
2321134001
€ 37.00
7
2322045000
ref: 7
ARM,CLUTCH RELEASE
€ 7.50
8
0913408006
ref: 8
SCREW
0913408006
€ 6.00
9
0831022088
ref: 9
08310-00087
NUT 8MM
0831022088
€ 2.00
10
0916008032
ref: 10
WASHER(8.5X26X1.2)
0916008032
€ 3.50
11
2323134001
ref: 11
GUIDE,CLUTCH RELEASE,INNER
2323134001
€ 34.50
12
0212206208
ref: 12
02122-0620A
SCREW
0212206208
€ 2.00
13
2329134000
ref: 13
23291-34010
GASKET,BALL GUIDE (MCA)
2329134000
€ 6.50
14
2325031001
ref: 14
23250-31003
BALL,CLUTCH RELEASE
€ 23.00
15
0928508006
ref: 15
SEAL,OIL(8X20X7)
0928508006
€ 17.50
16
0944308001
ref: 16
SPRING
0944308001
€ 3.00
