REAR MASTER CYLINDER (GS750B)
GS750B 1977 (B) USA (E03)

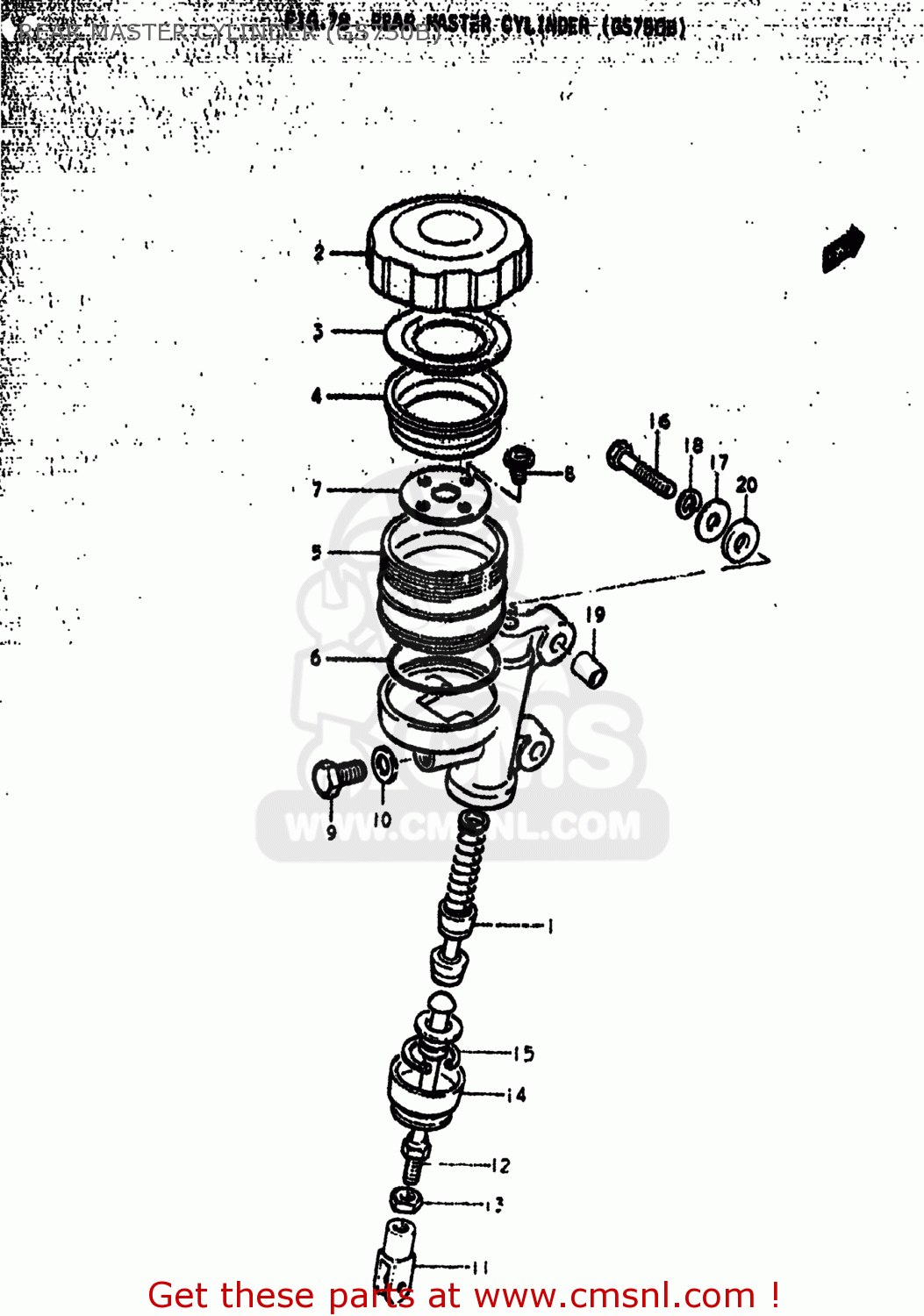

Rear master cylinder (gs750b) diagram GS750B 1977 (B) USA (E03)
REAR MASTER CYLINDER (GS750B) GS750B 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
6960045601
ref: 0
69600-45602
69600-45602
€ 108.50
1
6960045810
ref: 1
69600-45820
PISTON/CUP SET
€ 53.00
2
5966933602
ref: 2
59669-07D00
CAP
€ 16.50
3
5966818441
ref: 3
PLATE,DIAPHRAGM
€ 3.50
4
5966718441
ref: 4
DIAPHRAGM
€ 8.50
5
5968733603
ref: 5
59687-45000
RESERVOIR,MASTER CYLINDER
€ 28.50
6
5968633600
ref: 6
O RING
€ 14.00
7
5968533601
ref: 7
PLATE
€ 54.00
8
5968833600
ref: 8
SCREW,MASTER CYLINDER
€ 0.00
9
6969545000
ref: 9
NO PRODUCT DESCRIPTION AVAILABLE
€ 1.00
10
6969545000
ref: 10
NO PRODUCT DESCRIPTION AVAILABLE
€ 1.00
11
6969245001
ref: 11
69692-34300
YOKE
€ 11.00
12
6967045000
ref: 12
69670-45001
ROD,PUSH
€ 18.50
13
0831212088
ref: 13
08310-00087
NUT
€ 2.00
14
6969145000
ref: 14
69691-45001
BOOT
€ 6.50
15
5116270040
ref: 15
CIRCLIP
€ 3.00
16
0110708358
ref: 16
01500-0835B
BOLT
€ 3.50
17
0916008010
ref: 17
09160-08054
WASHER (8.2X20X1.6)
€ 1.50
18
0832121088
ref: 18
08321-01087
LOCK WASHER
€ 2.00
19
0918008067
ref: 19
SPACER(8.5X12X19)
€ 2.50
20
0932011007
ref: 20
CUSHION
€ 3.00
