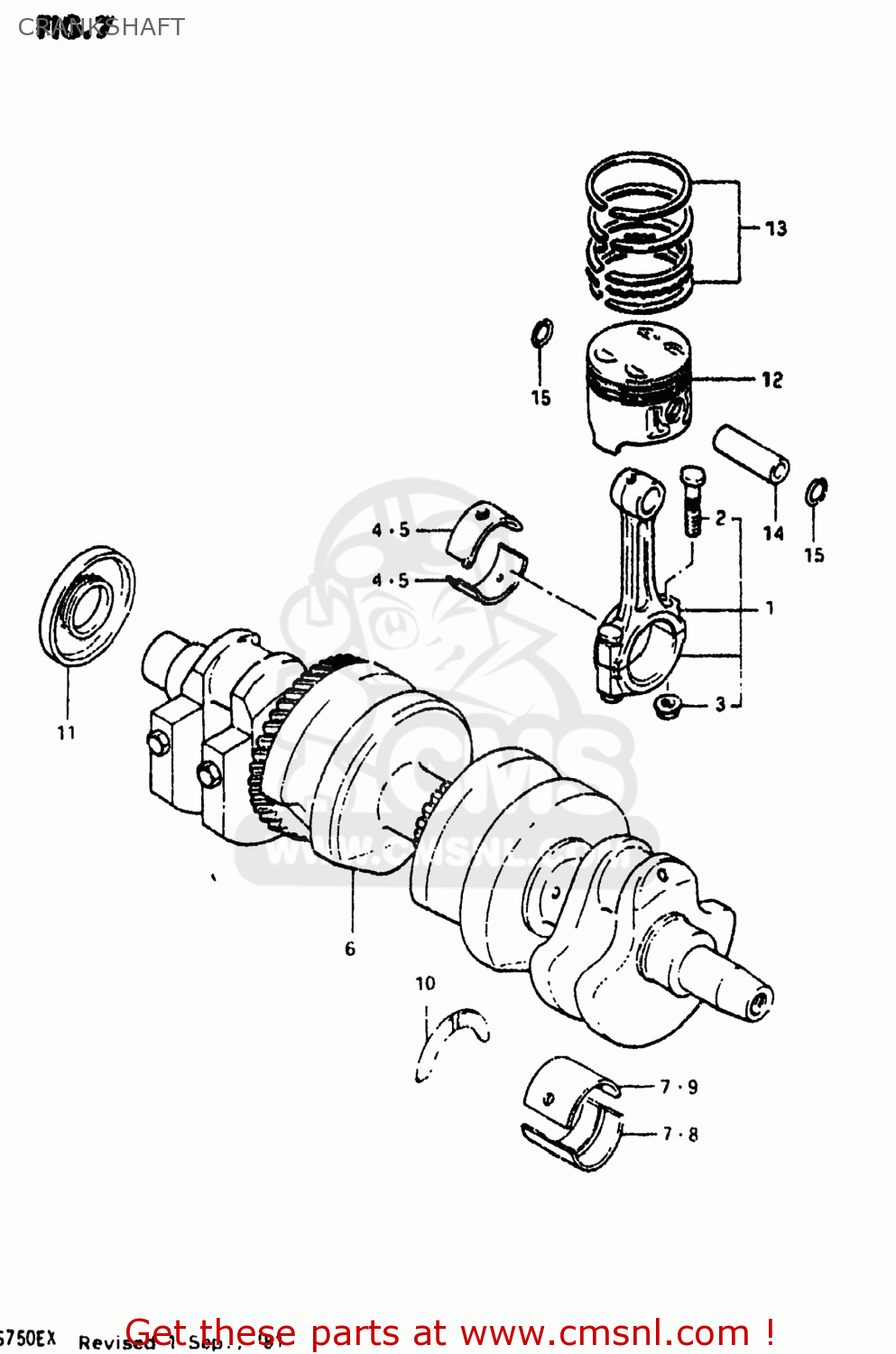

CRANKSHAFT

ref

part #

description

quantity

1

1216045400
ref: 1
12160-45500

CONNECTING ROD ASSEMBLY

€ 91.50

2

1216345400
ref: 2

BOLT,CONNECTING ROD

€ 0.00

3

0915908033
ref: 3

NUT

€ 2.50

4-1

1216445400010
ref: 4-1
12164-31E00-0A0

BEARING,CRANK PIN

€ 19.00

4-2

1216445400020
ref: 4-2
12164-31E00-0B0

BEARING,CRANK PIN

€ 19.00

4-3

1216445400030
ref: 4-3
12164-31E00-0C0

BEARING,CRANK PIN

€ 19.00

4-4

1216445400040
ref: 4-4
12164-31E00-0D0

BEARING,CRANK PIN

€ 19.00

4-5

1216445400025
ref: 4-5
12164-45510-025

BEARING,CRANK PIN

€ 12.00

4-6

1216445400050
ref: 4-6
12164-45510-050

BEARING,CRANK PIN

€ 10.50

5-1

1216445500010
ref: 5-1
12164-31E00-0A0

BEARING,CRANK PIN

€ 19.00

5-2

1216445500020
ref: 5-2
12164-31E00-0B0

BEARING,CRANK PIN

€ 19.00

5-3

1216445500030
ref: 5-3
12164-31E00-0C0

BEARING,CRANK PIN

€ 19.00

5-4

1216445500040
ref: 5-4
12164-31E00-0D0

BEARING,CRANK PIN

€ 19.00

5-5

1216445500025
ref: 5-5
12164-45510-025

BEARING,CRANK PIN

€ 12.00

5-6

1216445500050
ref: 5-6
12164-45510-050

BEARING,CRANK PIN

€ 10.50

6

1222045402
ref: 6
12220-45500

CRANKSHAFT

€ 1,178.00

7-1

1222945400010
ref: 7-1
12229-09301-0A0

METAL CRANKSHAFT

€ 10.00

7-2

1222945400020
ref: 7-2
12229-09301-0B0

METAL CRANKSHAFT

€ 10.00

7-3

1222945400030
ref: 7-3
12229-09301-0C0

METAL CRANKSHAFT

€ 10.00

7-4

1222945400040
ref: 7-4
12229-09301-0D0

METAL CRANKSHAFT

€ 9.00

7-5

1222945400025
ref: 7-5

BEARING,CRANKSHAFT(US:0.25)

€ 11.50

7-6

1222945400050
ref: 7-6

BEARING,CRANKSHAFT(US:0.5)

€ 10.50

8-1

1222945400010
ref: 8-1
12229-09301-0A0

METAL CRANKSHAFT

€ 10.00

8-2

1222945400020
ref: 8-2
12229-09301-0B0

METAL CRANKSHAFT

€ 10.00

8-3

1222945400030
ref: 8-3
12229-09301-0C0

METAL CRANKSHAFT

€ 10.00

8-4

1222945400040
ref: 8-4
12229-09301-0D0

METAL CRANKSHAFT

€ 9.00

8-5

1222945400025
ref: 8-5

BEARING,CRANKSHAFT(US:0.25)

€ 11.50

8-6

1222945400050
ref: 8-6

BEARING,CRANKSHAFT(US:0.5)

€ 10.50

9-1

1222945410010
ref: 9-1
12229-06B10-0A0

METAL CRANKSHAFT

€ 12.00

9-2

1222945410020
ref: 9-2
12229-06B10-0B0

METAL CRANKSHAFT

€ 12.50

9-3

1222945410030
ref: 9-3
12229-06B10-0C0

METAL CRANKSHAFT

€ 12.00

9-4

1222945410040
ref: 9-4
12229-06B10-0D0

METAL CRANKSHAFT

€ 11.50

9-5

1222945410025
ref: 9-5
12229-45400-025

METAL CRANKSHAFT

€ 11.50

9-6

1222945410050
ref: 9-6
12229-45400-050

METAL CRANKSHAFT

€ 10.50

10-1

1222845401
ref: 10-1
12228-31306

PLATE,CRANK THRUST

€ 8.00

10-2

1222845402
ref: 10-2
12228-31304

PLATE,CRANK THRUST

€ 9.00

10-3

1222845403
ref: 10-3
12228-31302

PLATE,CRANK THRUST

€ 8.00

11

0928330031
ref: 11
09283-30048

OIL SEAL

€ 15.00

12-1

1211145401
ref: 12-1
12111-45402

PISTON

€ 68.00

12-2

1211145402
ref: 12-2

PISTON (67.00MM)

€ 68.00

12-3

1211145401050
ref: 12-3
12103-45840-050

PISTON

€ 89.00

12-4

1211145402050
ref: 12-4
12103-45840-050

PISTON

€ 89.00

12-5

1211145401100
ref: 12-5
12103-45840-100

PISTON

€ 72.00

12-6

1211145402100
ref: 12-6
12103-45840-100

PISTON

€ 72.00

13-1

1214045410
ref: 13-1
12140-31311

RING SET,PISTON

€ 62.50

13-2

1214045410050
ref: 13-2
12140-31311-050

RING SET,PISTON (OS:0.5)

€ 99.50

13-3

1214045410100
ref: 13-3
12140-31311-100

RING SET,PISTON (OS:1.0)

€ 89.00

14

1215192201
ref: 14
12151-45501

PIN,PISTON (18MM)

€ 14.00

15

0938118002
ref: 15

CIRCLIP

€ 1.50
