REAR COMBINATION LAMP
GS750E 1980 (T) USA (E03)

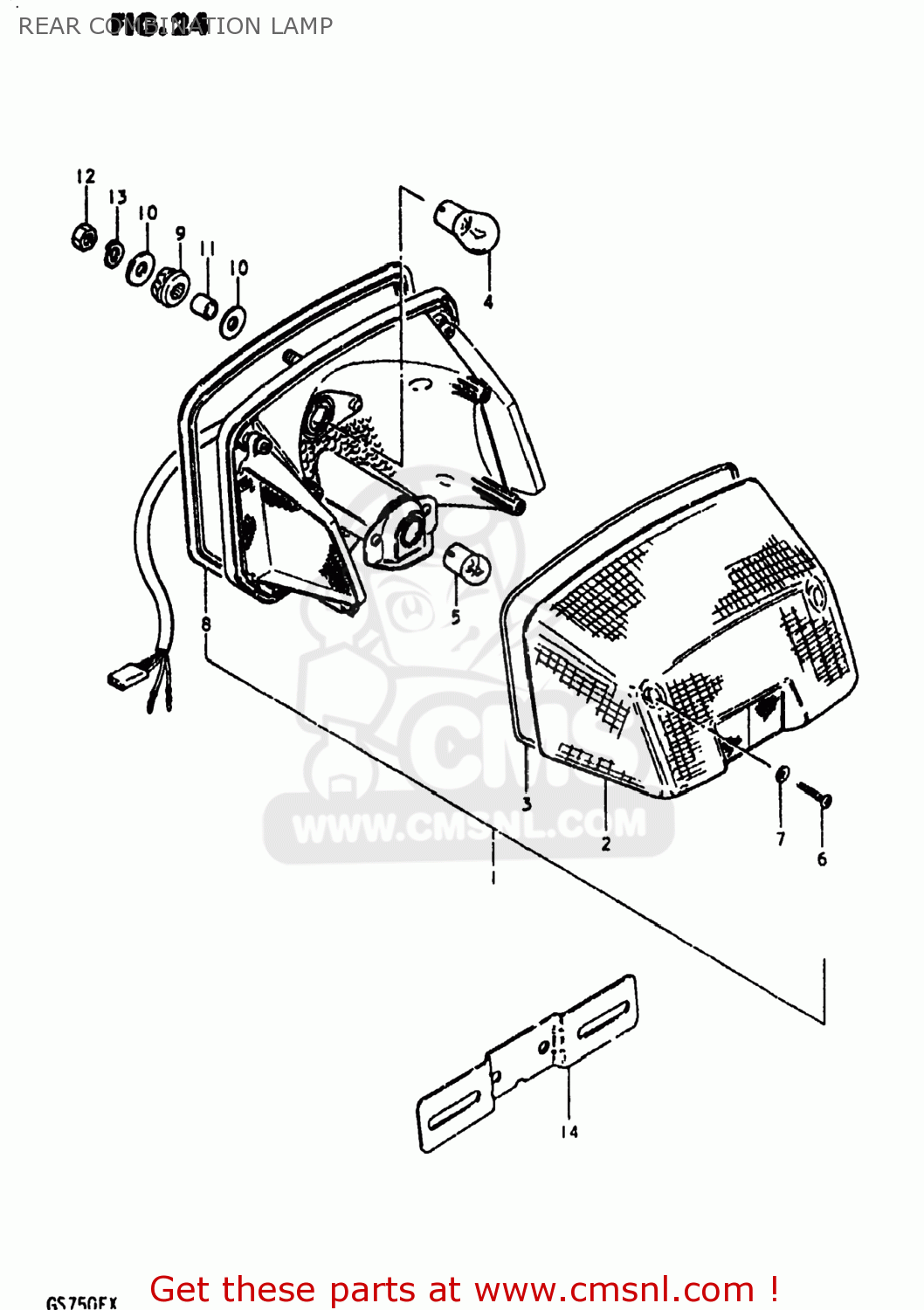

Rear combination lamp diagram GS750E 1980 (T) USA (E03)
REAR COMBINATION LAMP GS750E 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571049230
ref: 1
LAMP ASSEMBLY,REAR COMBINATION
€ 202.50
2
3571249230
ref: 2
LENS
€ 79.50
3
3571349230
ref: 3
GASKET (NAS)
€ 6.00
4
0947112035
ref: 4
BULB(12V23W)
€ 5.50
5
0947112037
ref: 5
09471-12141
BULB
€ 7.00
6
0321104208
ref: 6
03211-04207
SCREW
€ 1.50
7
3562743010
ref: 7
GASKET (NAS)
€ 2.00
8
3573349230
ref: 8
GASKET,REAR COMBINATION LAMP
€ 10.50
9
0932009010
ref: 9
CUSHION
€ 2.50
10
0916006060
ref: 10
09160-06077
WASHER
€ 2.00
11
0918006006
ref: 11
09180-07019
SPACER (6.8X10X11.5)
€ 3.00
12
0831011068
ref: 12
08310-00067
NUT
€ 2.50
13
0832121068
ref: 13
08321-01067
LOCK WASHER
€ 2.50
14
3592749230
ref: 14
PLATE,REAR LICENSE
€ 8.50
