FOOTREST (GS750C
GS750EC 1978 (C) USA (E03)

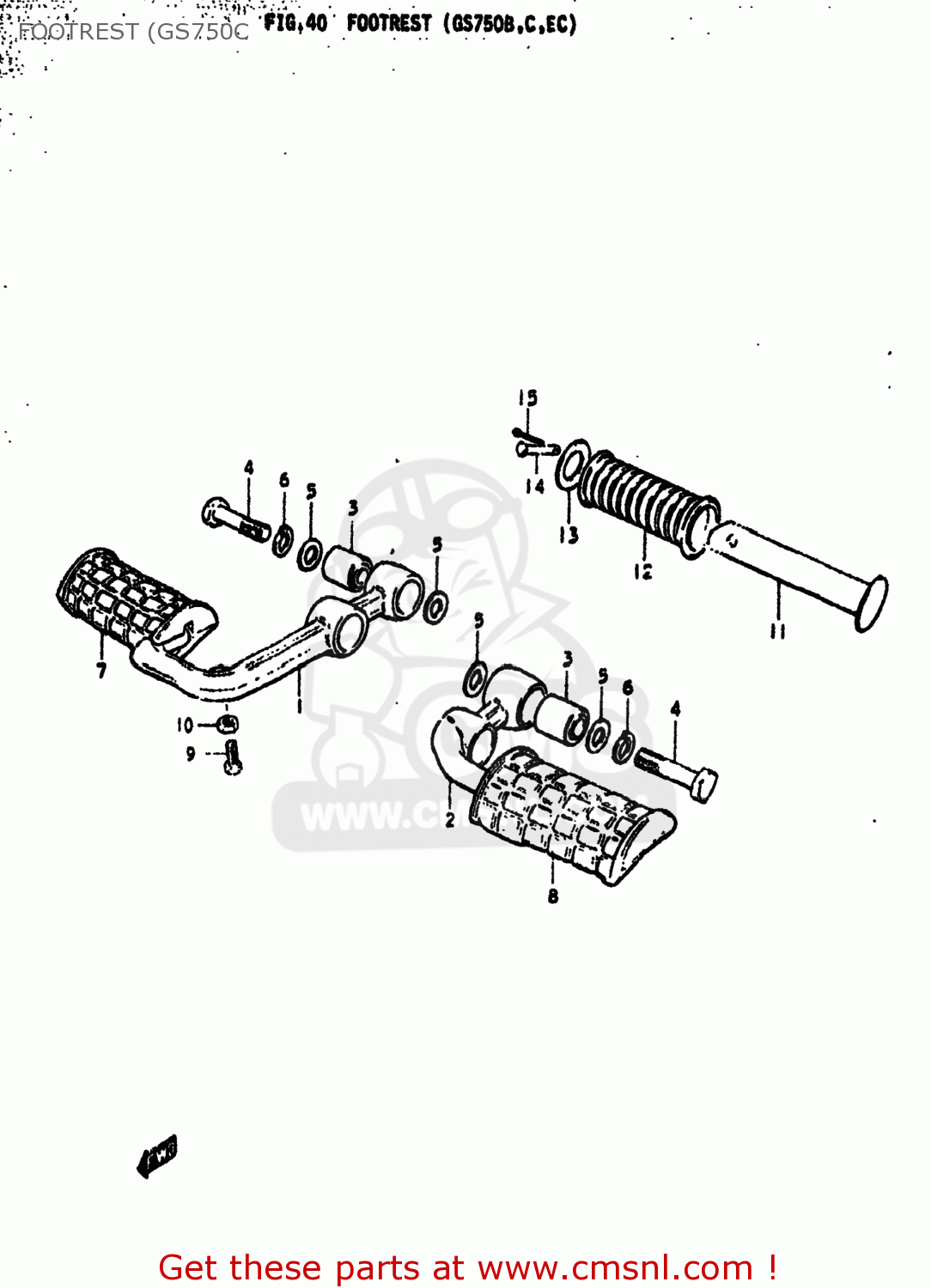

Footrest (gs750c diagram GS750EC 1978 (C) USA (E03)
FOOTREST (GS750C GS750EC 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351145000019
ref: 1
BAR,FRONT FOOTREST,RIGHT
€ 49.50
2
4352145000019
ref: 2
BAR,FRONT FOOTREST,LEFT
€ 49.50
3
0931910008
ref: 3
BUSH
€ 8.00
4
0910410007
ref: 4
09104-10029
BOLT
€ 3.50
5
0916010013
ref: 5
09160-10123
WASHER (10.1X21X2.3)
€ 2.00
6
0832121108
ref: 6
08321-01107
LOCK WASHER
€ 2.00
7
4355145000
ref: 7
RUBBER,FR FOOTREST,R
€ 17.50
8
4355136200
ref: 8
43551-36000
RUBBER,FOOTREST
€ 12.00
9
0110706208
ref: 9
01500-06207
BOLT
€ 2.00
10
0831921068
ref: 10
08319-2106A
NUT 6MM
€ 2.00
11
4361003001
ref: 11
BAR,FOOTREST RUBBER
€ 5.50
12
4361203001
ref: 12
RUBBER,PILLION FOOTREST
€ 3.50
13
0916019006
ref: 13
09160-19024
WASHER (19.5X32X2)
€ 2.00
14
0920006010
ref: 14
PIN
€ 2.50
15
0411120208
ref: 15
04111-2020A
PIN 20X20
€ 1.50
