FUEL COCK
GS750EC 1978 (C) USA (E03)

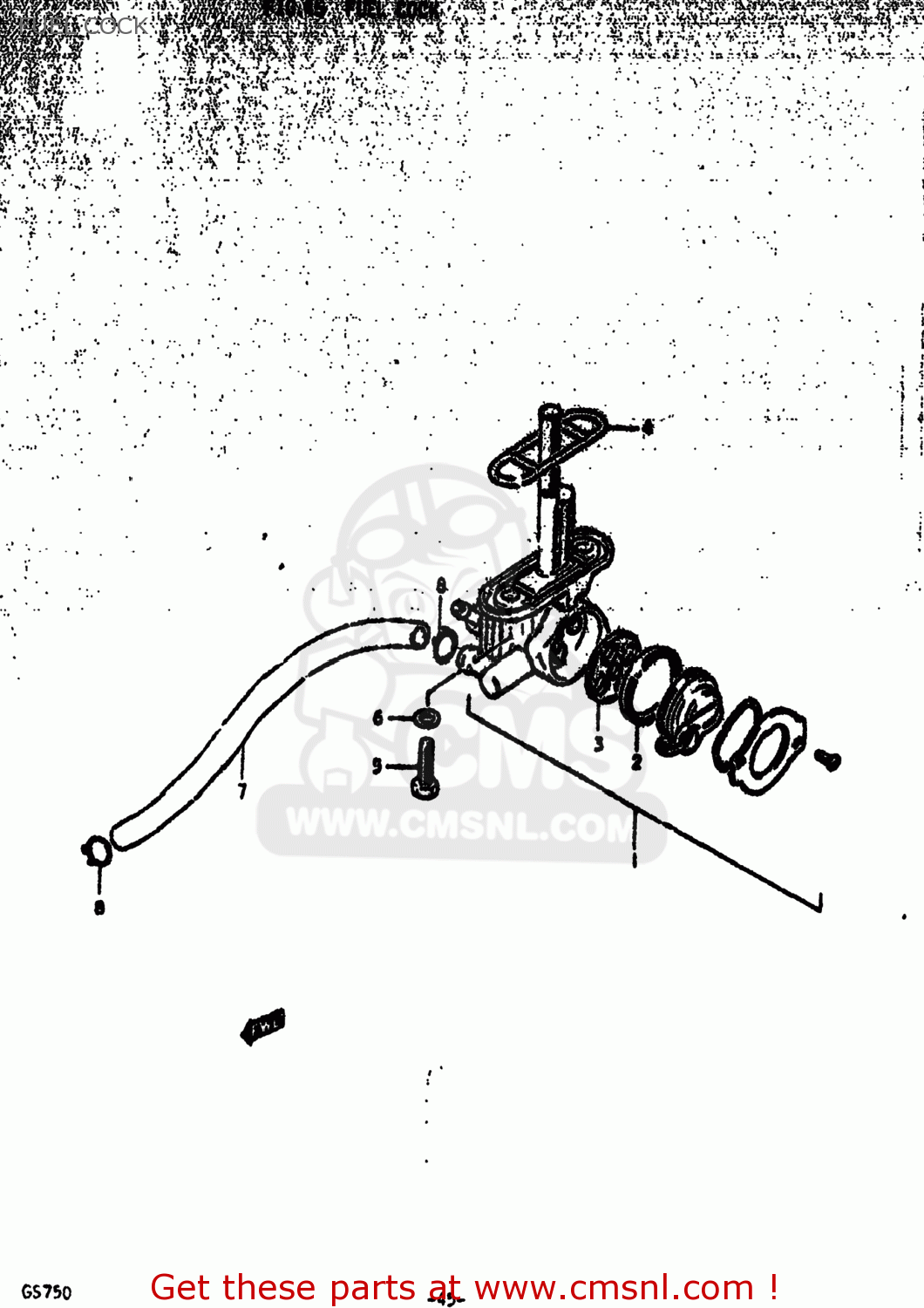

Fuel cock diagram GS750EC 1978 (C) USA (E03)
FUEL COCK GS750EC 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4430045050
ref: 1-1
44300-45011
COCK ASSEMBLY,FUEL
€ 139.50
1-2
4430045010
ref: 1-2
44300-45011
COCK ASSEMBLY,FUEL
€ 139.50
1-3
4430045011
ref: 1-3
COCK ASSY,FUEL
€ 139.50
2
4435333154
ref: 2
V SEAL,FUEL COCK
€ 7.00
3
4434133150
ref: 3
GASKET (NAS)
€ 3.00
4-1
4434831050
ref: 4-1
44348-31051
GASKET,FUEL COCK (NAS)
€ 14.50
4-2
4434831051
ref: 4-2
GASKET, FUEL COCK (NAS)
€ 14.50
5
0912806006
ref: 5
09128-06057
BOLT(6X20)
€ 2.00
6
0916806010
ref: 6
09168-06023
GASKET
€ 2.00
7-1
0934307020
ref: 7-1
09352-70103-00B
HOSE
€ 17.50
7-1
0934307020
ref: 7-1
09352-70103-00B
HOSE
€ 17.50
7-2
0934307026
ref: 7-2
09352-70103-00B
HOSE
€ 17.50
8
0940110401
ref: 8
CLIP
€ 1.50
